Pro1 Technologies T501ML2 Thermostat Installational Manual

Pro1 Technologies T501ML2 Thermostat

Installation Steps

• Disconnect electrical power at main fuse or circuit box.
• Remove Thermostat Cover from the thermostat base.

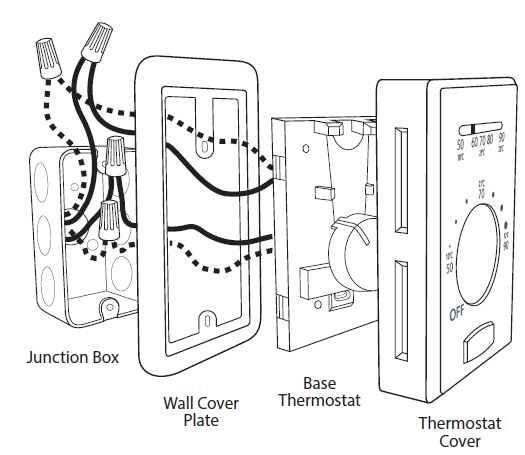

• Place the wall cover plate on back of the thermostat base, then connect wires to the thermostat as shown in wiring diagram (Without pushing on knob or triangular bimetal element).
• Push lead wires into junction box, then secure wall cover plate and thermostat base to junction box with screws provided.
• Mount thermostat cover to the thermostat base and set to desired setting.
• Turn on electrical power

Installation Tips

Wall Locations

The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation

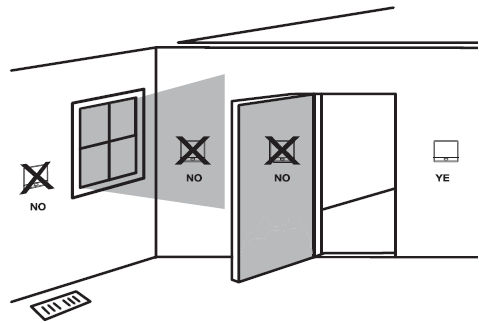

Do not install thermostat in locations:

• Close to hot or cold air ducts
•  That are in direct sunlight
•  With an outside wall behind the thermostat
•  In areas that do not require conditioning
•  Where there are dead spots or drafts (in corners or behind doors)
•  Where there might be concealed chimneys or pipes.

T501ML2
T501ML4

SPECIFICATION

• Temperature Range….50˚F to 90˚F (10˚C to 32˚C)
• Electric Rating…………. 22A/120VAC Resistive (Non-Inductive)
• 22A/240VAC Resistive (Non-Inductive)
• 19A/277V AC Resistive (Non-Inductive)
• Differential…………………3˚F Non-adjustable
• Mount………………………..Vertical
• Color…………………………..White

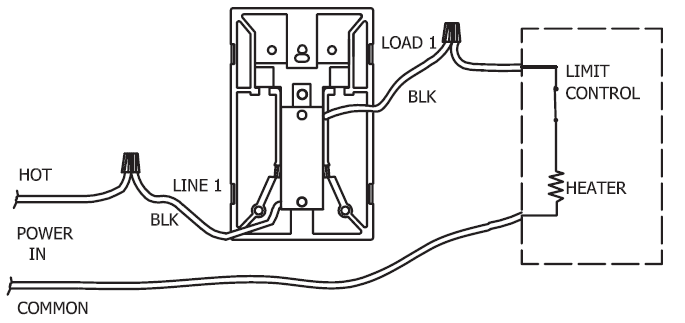

• T501ML2……………………SPST Switch – Singleline disconnect Black – Black: Opens on temperature rise

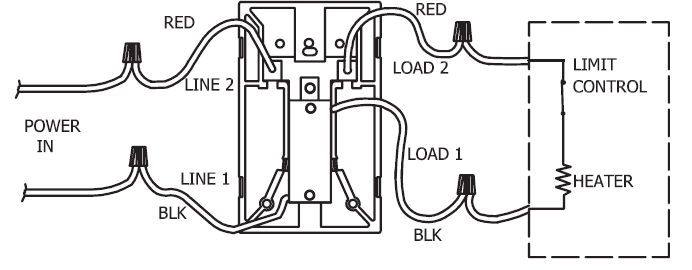

• T501ML4……………………DPST Switch – Double line disconnect
• Black – Black : Opens on temperature rise
• Red – Red: Opens in OFF position for double line disconnect
• Wire…………………………….6 inch leads (12 AWG)
• Dimensions……………….W – 2.9”, L – 4.7”, D – 9” (from wall).1.6”(total)
• Application……………….Electric heat thermostat
• Warranty……………………1 year
