Pro1 Technologie T701i Thermostat
P.O. Box 3377
Springfield, MO 65808-3377
Toll-Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9 AM – 6 PM EST
Thermostat Application Guide
| Description | |
| Gas or Oil Heat | Yes |
| Electric Furnace | Yes |
| Heat Pump (No Aux. or Emergency Heat) | Yes |
| Heat Pump (With Aux. or Emergency Heat) | No |
| Multi-Stage Systems | No |
| Heat Only Systems | Yes |
| Cool Only Systems | Yes |
| Millivolt | No |
Power Type
Hardwire (24V Common Wire)
A trained, experienced technician must install this product.
Carefully read these instructions. You could damage this product or cause a hazardous condition if you fail to follow these instructions.
Specifications
- The display range of temperature ………………………… 41˚F to 95˚F (5˚C to 35˚C)
- The control range of temperature…………………………. 44˚F to 90˚F (7˚C to 32˚C)
- Load rating………………………………………………………………….1 amp per terminal, 1.5 amp
- maximum for all terminals combined
- Display Accuracy……………………………………………………….. ± 1˚F
- Swing (cycle rate or differential) ……………………………. The heating is adjustable from 0.2˚ to 2.0˚
- Cooling is adjustable from 0.2˚ to 2.0˚
- Power source ……………………………………………………………..18 to 30 VAC, NEC Class II, 50/60 Hz
- for hardwire. 500 mA
- Operating ambient ………………………………………………….. 32˚F to +105˚F (0˚C to +41˚C)
- Operating humidity …………………………………………………. 90% non-condensing maximum
- Dimensions of thermostat ………………………………………. 4.7”W x 4.4”H x 0.8”D
Installation Tips
Wall Installation
The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation. Pick an installation location that is easy for the user to access. The temperature of the location should be representative of the building.
Do not install thermostats in locations
- Close to hot or cold air ducts
- Those are in direct sunlight
- With an outside wall behind the thermostat
- in areas that do not require conditioning
- Where there are dead spots or drafts (in corners or behind doors)
- Where there might be concealed chimneys or pipes
Removing The Private Label Badge
Gently slide a screwdriver into the bottom edge of the badge. Gently turn the screwdriver counterclockwise. The badge is held on by a magnet in the well of the battery door. The badge should pry off easily. DO NOT USE FORCE. All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.
Thermostat Quick Reference
- LCD
- Glow in the dark light button
- Fan button
- System button
- Temperature setpoint buttons
Subbase Installation
- Horizontal Mount
For horizontal mount put one screw on the left and one screw on the right. - Vertical Mount
For vertical mount put one screw on the top and one screw on the bottom.
Electrical Hazard
Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.
Mercury Notice
All of our products are mercury-free. However, if the product you are replacing contains mercury, dispose of it properly. Your local waste management authority can give you instructions on recycling and proper disposal.
NOTE: To ensure a solid fit between the thermostat and subbase:
- Mount the subbase on a flat wall.
- Use provided screws.
- Ensure drywall anchors are flush with the wall.
- Push wires into the wall.
Mount Thermostat
Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place.
Wiring
- Power Supply
- Factory-installed jumper,
- remove only when installing on a 2-transformer system.
- Use either O or B terminals for the changeover valve.
- Use a small piece of wire (not included) to connect W and Y terminals.
- A 24 VAC 500mA common connection is required with this thermostat

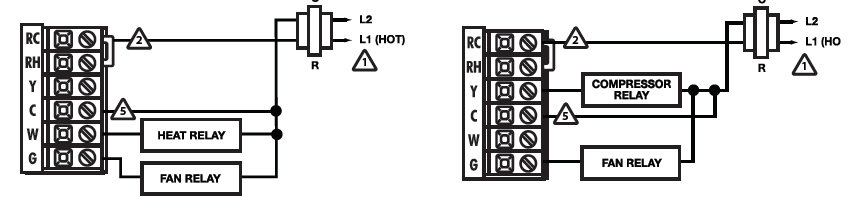

Typical 1H/1C system: 1 transformer Typical 1H/1C system: 2 transformers
Typical 1H/1C heat pump system Typical heat-only systems w/o fan
Typical heat-only system Typical cool-only system
Replacement Thermostat Wiring
- If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced. In some cases, the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.
- Loosen the terminal block screws. Insert wires then retighten terminal block screws.
- Place non-flammable insulation into the wall opening to prevent drafts.
- This thermostat requires a 24V common wire to the C terminal.
Caution
Electrical Hazard Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.
Warning
All components of the control system and the thermostat installation must conform to Class II circuits per the NEC Code.
Installation Tip Max Torque = 6in-lbs.
Do not overtighten terminal block screws, as this can damage the terminal block. A damaged terminal block can keep the thermostat from fitting on the sub-base correctly or cause system operation issues.
Wiring Chart
For all systems, the following terminals are wired according to whether you have a single or dual transformer system as shown:
| RH RC | C | G | ||
| SINGLE TRANSFORMER
SYSTEM |
24 VAC HOT JUMPER SHOULD REMAIN
INSTALLED |
24 VAC Common 500mA |
Blower / Fan |
|
| DUAL TRANSFORMER
SYSTEM |
24 VAC-Heat
*REMOVE PROVIDED JUMPER |
24 VAC-Cool
*REMOVE PROVIDED JUMPER |
24 VAC Common 500mA
*FROM COOL TRANSFORMER |
Blower / Fan |
FAILURE TO REMOVE PROVIDED JUMPER ON DUAL TRANSFORMER INSTALLATIONS COULD CAUSE SEVERE DAMAGE TO HVAC SYSTEMS
| O Terminal | Heat pump changeover valve– Energized during cooling |
| B Terminal | Heat pump changeover valve– Energized during heating |
Note: Devices such as a float switch that mechanically break circuits should be installed so that they break the control wire (Y) not the power (R). Interrupting the power circuit will shut off power to the thermostat completely and not allow it to operate.
If using in Heat Pump without an Auxiliary or Emergency heat application,
please see the wiring diagram on the previous page.
To enter tech setup
- Press and hold the + and – buttons for 3 seconds.
- Press and hold the TECH button.
- Configure the installer options as desired using the table below. Use the + or – buttons to change settings and the PREV and NEXT buttons to move from one step to another.
- To exit the tech setup: press and hold the + and – buttons for 3 seconds, or wait 20 seconds.
| Tech Setup Steps | LCD Will Show | Adjustment Options | Default | |
| Room Temperature Calibration | This feature allows the installer to change the calibration of the room temperature display. For example, if the thermostat reads 70 degrees and you would like it to read 72 then select +2. | 0 | You can adjust the room temperature display to read 4˚above or below the factory calibrated reading. | O |
| Compressor Short Cycle Display | The compressor short cycle delay protects the compressor from “short cycling”. This feature will not allow the compressor to be turned on for 5 minutes after it was last turned off. | COMP DELAY
0F PREV NEXT |
Selecting “On” will not allow the compressor to be turned on | ON |
|
Cooling Swing |
The swing set often called “cycle rate”, “differential”, or “anticipation” is adjustable. A smaller swing setting will cause more frequent cycles and a larger swing setting will cause fewer cycles. | COOL SWING
0.5 PREV NEXT |
The cooling swing setting is adjustable from 0.2˚ to 2˚. A swing setting of 0.5˚will begins cooling at approximately 0.5˚ above the setpoint and stop approximately 0.5˚ below the setpoint. |
0.5 ˚F |
|
Heating Swing |
The swing setting often called “cycle rate”, “differential”, or “anticipation” is adjustable. A smaller swing setting will cause more frequent cycles and a larger swing setting will cause fewer cycles. | HEAT SWING
0.4 PREV NEXT |
The heating swing setting is adjustable from 0.2˚ to 2˚. A swing setting of 0.5˚will begin heating at approximately 0.5˚ below the setpoint and begin approximately 0.5˚ above the setpoint. |
0.4 ˚F |
| Heating Setpoint Limit | This feature allows you to set a maximum heat setpoint value. The setpoint temperature cannot be raised above this value. | HE L
90 PREV NEXT |
Use the + and – buttons to select the maximum heat setpoint. |
90 |
|
Cooling Setpoint Limit |
This feature allows you to set a maximum cool setpoint value. The setpoint temperature cannot be raised above this value. | CO L
44 PREV NEXT |
Use the + and – buttons to select the maximum cool setpoint. |
44 |
Swing Setting Tip
The temperature swing, sometimes called differential or cycle rate, can be customized for this individual application. For most applications choose a swing setting that is as wide as possible without making the occupants uncomfortable.
Tech Setup continued
| Tech Setup Steps | LCD Will Show | Adjustment Options | Default | |
|
˚F or ˚C |
This feature allows you to display temperature in either Fahrenheit or Celsius. | F OR C
F PREV NEXT |
˚F for Fahrenheit | ˚F |
| 12 or 24 Hour Clock | You can select either 12 or 24 hour clock setting. | 12/24H
P1REV 2 NEXT |
Use the + and – key to select 12 or 24 hour clock. | 12 |
| Display Light | The display light can be configured to operate 3 different ways. To come on only when the Light Key is pressed, when Any Key is pressed, or stay on ALL of the time. | DISP LIGHT
AU PREV NEXT |
AUTO “AU” – Any key ON
ON “On” – Always ON OFF “OF” – Only light key ON |
AUTO |
|
Programmable (Only displayed if the thermostat is connected to the internet) |
You can configure this thermostat to accept a programmed schedule from the mobile App, if WIFI communication is set up through your home network. | PROGRAMABLE
OF |
Select “OF” to configure the thermostat for NON-Program- mable. (Time of day will NOT appear on display).
Select “ON” to configure the thermostat for programmable operation, from the app. |
OFF |
|
PREV NEXT |
||||
|
System Set |
You can configure the system for your particular application.
HEAT-OFF-COOL HEAT-OFF COOL-OFF |
SYS MODE
HC |
Use the + and – key until the desired application is flashing.
HC – Heat – OFF – Cool H – Heat Only C – Cool Only |
Heat Off Cool |
| PREV NEXT | ||||
|
Fan Operation |
Select GAS for systems that control the fan during a call for heat. Select ELEC to have the thermostat control the fan during a call for heat. | FAN OPER
G5
PREV NEXT |
GAS – “GS”
ELEC – “EL’ |
GAS |
Operation of the FAN & SYSTEM button when connected to WIFI and running a programmable schedule from the app: When the set temperature is changed while an app schedule is running, the thermostat will enter a temporary hold, and the Fan and System buttons change to RUN and HOLD for 5 seconds. If you wish to enter PERMANENT HOLD press the HOLD button at this time. If you don’t press the HOLD button within 5 seconds, it will remain in a temporary hold for 4 hours. When connected to WIFI you may also have the ability to turn programming ON or OFF by pressing and holding the FAN button for 3 seconds, while the FAN BOX appears.
WIFI Setup
These WIFI Technician steps/ options are intended for information and troubleshooting. They are not used for installation or initial setup. Follow these steps to enter the WIFI-technical information menu.
- Press and hold the + and – buttons together for 3 seconds.
- Press the WIFI button at the lower right.
- The top of the display will show:
“WIFI NOTOK” if NOT connected to WIFI. “WIFI OK” if connected to WIFI. - IF the NEXT button is pressed, top of the display will show:
The firmware and software versions that are installed on the thermostat. You can scroll through them with the + and – buttons. - IF the NEXT button is pressed again, top of the display will show:
The SSID # of the thermostat. if NEXT is pressed again, you will return to step 4.
The only normal function you would use this step for would be to RESET WIFI provisioning. For example: If you replaced your home WIFI router and need to connect via a different network. Follow these steps to enter the WIFI-technical information menu.
- Go through steps 1 and 2 from the WIFI menu at left.
- Press and hold the TECH button at the lower left for 3 seconds.
- The top of the display will show:
“RESET WIFI” - Press the YES button at the lower left. After a 5-second countdown, the thermostat will reset. Or press NO to exit.
