Pelican TS250H Wireless Thermostats

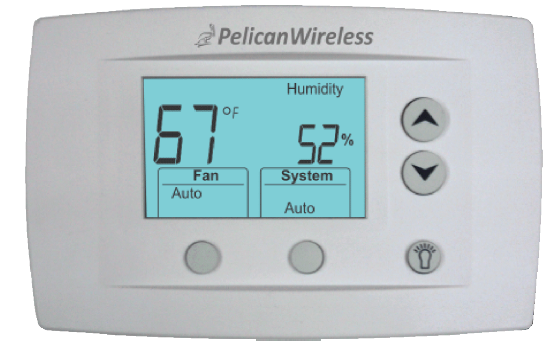

TS250H Internet-Enabled Thermostat with Integrated CO2 and Humidity Sensor
The Pelican Internet-Enabled Thermostat with integrated Humidity and CO2 sensors provides commercial customers with virtual climate and air quality management. The TS250H delivers accurate temperature management, humidity management, air quality (CO2) management, leading-edge energy efficiency, built-in safeties, and alarming, and fine-tuned comfort. Coupled with the Pelican Web App, the TS250H tracks space temperature, humidity levels, CO2 levels, and HVAC operational data in real-time and historically. All information is displayed in real-time online and is viewable on any Internet-connected device
INTRODUCTION
MESH WIRELESS NETWORK
The TS250H communicates wirelessly with a GW400 to reach the Internet. Each TS250H has built-in state-of-the-art wireless mesh network communication and repeating.
FAULT ALARMING
Built-in system and space analytics with automated email or text message alerts when a fault is detected.
WEB APP
Virtual and central management of TS250H is available on all smartphones, tablets, and/or PCs. Directly manage thermostat temperature, humidity, and CO2 levels through a web browser. Designed for intuitive control over multiple thermostats.
HISTORICAL TREND DATA
Online viewable historical data of space temperature, setpoints, HVAC demand, CO2 level, humidity level, and fan demand.
INSTALLATION
Industry-standard HVAC terminals utilize existing thermostat wires. Included with TS250 is Pelican’s innovative limited wiring relay pack (WM500) used in applications where there are only three (3) wires to the HVAC unit.
SCHEDULING
Through the Pelican Web App, you can schedule the TS250H thermostat for daily, 5-2, or 7-day schedules. Thermostats can also be scheduled as groups, for simple multi-thermostat management
Warranty
Designed and assembled in the USA 5-Year Limited Warranty
Specifications
- POWER
- Hardwire 24VAC, 60Hz; 50 mA
- Voltage Range 23 – 30VAC
- Relay Current 1.0A running
- COMPATIBILITY
- 24VAC gas, electric, or oil heating systems.
- Conventional and Heat Pump
- Zone Damper Actuator
- WIRING
- Conventional R, RC, W, W2, Y, Y2, G, C, Dh, Hu
- Heat Pump R, RC, O/B, AUX, Y, Y2, G, C, Dh, Hu
- Damper Actuator R, C, Y, Y2, W, W2
- SYSTEM PROTECTION
- Four-Minute Compressor Short-Cycle Protection
- Temporary Schedule Override
- Auxiliary/Emergency Heat Efficiency Algorithm
- Keypad Lockout
- Trend Data Analytics and Fault Monitoring
- Humidity Dead Band Protection
- THERMOSTAT RANGE
- Operating Range -4°F to 122°F
- Differential Temperature ±0.5°F
- Operating Humidity (%RH) 5 to 90% RH; non-condensing
- Humidity Setting Range 10 – 80% RH
- Dehumidify Setting Range 20 – 90% RH
- Integrated Room CO2 Sensor -20°F to 160°F
- Humidity Accuracy ±2%
- SIZE
- Inch H 3.5 x W 5.97 x D 1.5
- mm H 89 x W 150 x D 38
- Horizontal Mounting
Pelican Wireless Systems | 2655 Collier Canyon Road, Livermore CA 94551 (888) 512-0490
[email protected]
Copyright @ 2019. Pelican Wireless Systems. All Rights Reserved.
www.pelicanwireless.com
DS-TS250H-03
