PECO T8532OCC-001 MULTI-FAN OCCUPANCY THERMOSTAT

Occupied Timer Sets Occupancy Duration for 30 min, 1, 2, 4, 5, 6, 16, 20, 24 Hours. Once the timer expires with no detection the thermostat goes into Setback Ramping
Setback Ramping Determines how the control will ramp to setback values.
- Economy – goes directly to setback values.
- Comfort 1 – sets back at 1°F per Hour until the selected setback value is reached.
- Comfort 2 – sets back at 2°F per Hour until the selected setback value is reached.
Setback Setpoints Temperature values can be set to OFF or 50-90F (10-32C).
Low/ High Temp Protection Freeze protection on this control is set at 40°F (heat). Over temp protection is set at 110°F (cool
Night Lock ON Protection To assure comfort settings for guest room operation an optional configuration will hold user setpoints from 10 PM and 8 AM, once occupancy is detected

Programmable or non-programmable
Battery or low-voltage (hard-wired)
Remote sensor input
Daily valve-purge option
Programmable fan
Programmable holidays
TM memory card interface, 2 GB or smaller, enabling quick configuring of large-project installations
Configurable operation of Heat (W1) for NC or NO

Temperature Control Range	50° to 90° F (10° to 32° C)
Operating Temperature Range	0° to 120° F (-18° to 49° C)
Storage Temperature Range	-20° to 130° F (-29° to 55° C)
Electrical Input Frequency	50/60 Hz +/- 10%
Input Power	24 VAC (20-30 VAC) and/or 2 AA alkaline batteries (installing batteries recommended)
Output Terminal W – Heating	20-30 VAC 0.02-1.0 A
Output Terminal Y – Cooling	20-30 VAC 0.02-1.0 A
Output Terminal G – Fan	20-30 VAC 0.02-0.6 A
Output Terminal A – Fan	20-30 VAC 0.02-1.0 A
Termination Connections	Wallplate w/ terminal blocks
Memory Card	SD (Secure Digital) – 2GB or less

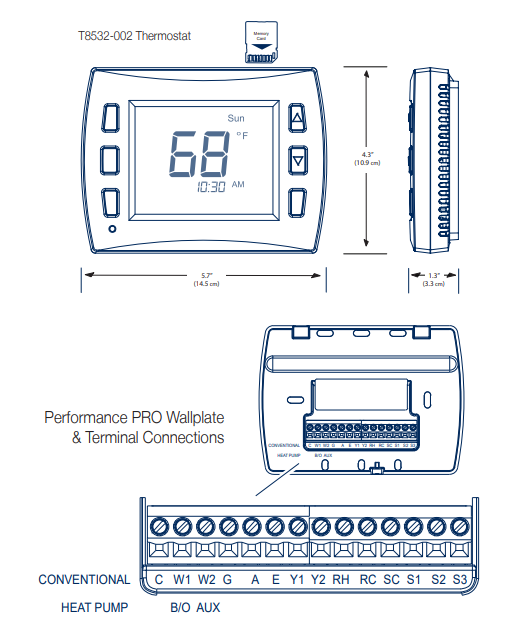

Dimensions

Mounting	Direct mount; 2″ x 4″ horizontal or vertical, or 4″ x 4″
Physical Dimensions	5.7″W x 4.3″ H x 1.3″ D

Models & Accessories

Model	Part No.	Description
T8532OCC-001	71966	Performance PRO, 2 Heat / 2 Cool, Multi-fan, programmable thermostat.
68671	68671	Remote sensor
69308	69308	Indoor remote sensor
