PECO T372P Thermostat Product Specifications Guide

peco-logo

PECO T372P Thermostat

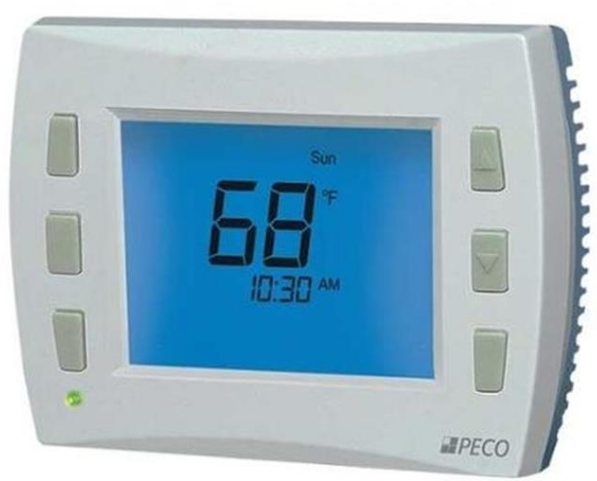

Peco-T8168-Programable-Thermostat-product

T372P and T371N

PECO-T372P-Thermostat-FIG.1

The PECO T372P and T371N Basic Control provide heating and cooling operation for gas, oil, or electric furnace operation. It will also control heat pumps not requiring aux or emergency heat. This control features a large blue LCD display, Fan On-Auto switching, and a system selection of heat or cool. An easy-change battery door is located on the front panel. The wall plate includes a level for easy mounting.

Overview

Overview
1 Heat / 1 Cool Programable or Non-Programable
Adjustable Differential Separate Heating and Cooling Adjustment
Millivolt Compatible Terminals: Rc, Rh, C, W, Y, G, B, O
5 Minute Compressor Delay AAA Battery or 24v Hardwire
Applications Guide
Gas or Oil Heat Yes Heat Only System – Floor or Wall Furnace Yes
Electric Furnace Yes Heat Pump NO Aux. or Emergency Heat Yes
Cool Only Systems Yes Heat Pump (with Aux. or Emergency Heat No
Heat Only System Yes Multi-Stage Systems No
Millivolt Yes

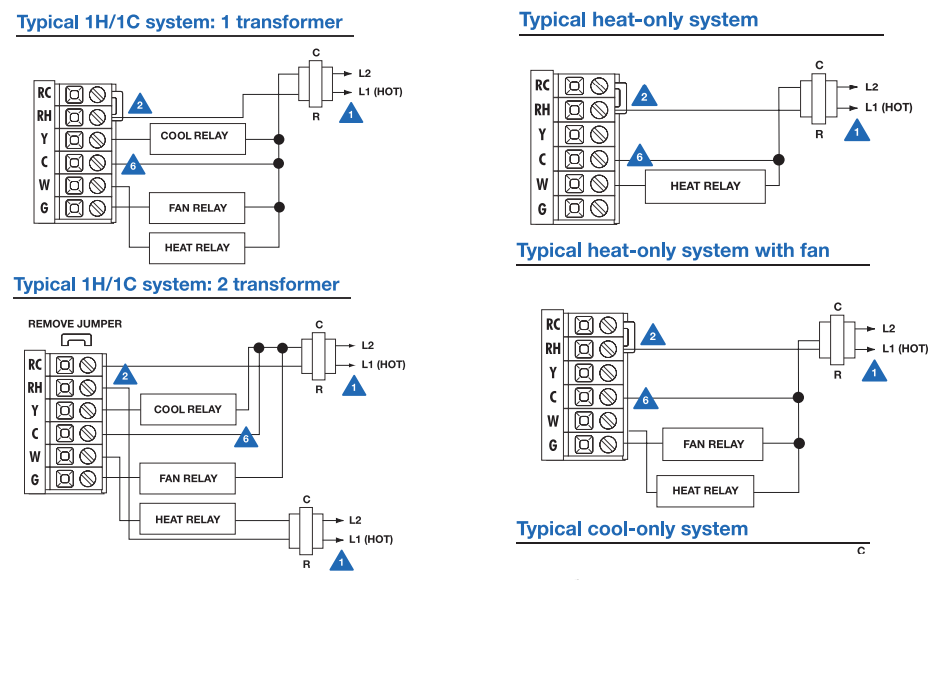

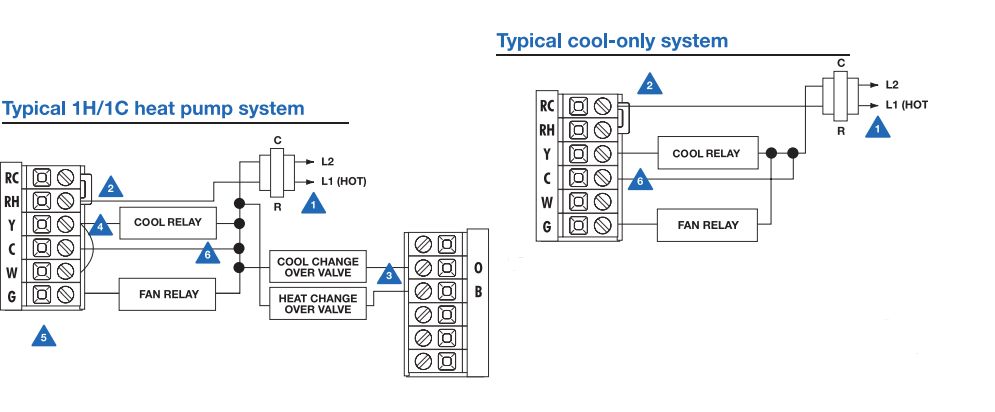

WIRING

PECO-T372P-Thermostat-FIG.2 PECO-T372P-Thermostat-FIG.3

  1. Power supply
  2. Factory-installed jumper. Remove only when installing on 2-transformer systems.
  3. Use either O or B terminals for the changeover valve
  4. Use a small piece of wire (not supplied) to connect W and Y terminals
  5. Set fan operation switch to electric
  6. A Optional 24 VAC common connection when the thermostat is used in battery power mode

Specifications

Specifications
Display range of temp. 41°F to 95°F (5°C to 35°C)
Control range of temp. 44°F to 90°F (7°C to 32°C)
Load rating 1 amp per terminal, 1.5 amp maxi- mum all terminals combined
Display accuracy ± 1°F
Differential Adjustable from 0.2°F to 2.0°F
Power source 18 to 30 VAC, NEC Class II, 50/60 Hz

for hardwire (common wire) AAA Battery

Operation ambient 32° to +105° (0° to +41”C)
Operating Humidity 90% non-condensing maximum
Dim. of Thermostat 4.72” W X 3.86”H X 0.98”0

Get Started Today
For additional details, please contact PECO Control Systems.
11241 SE Highway 212 Clackamas, OR 97015 503-387-6410 [email protected]
pecocontrolsystems.com
T372P and T371N
© Astronics PECO T371N/T372P Data Sheet 2022.9
