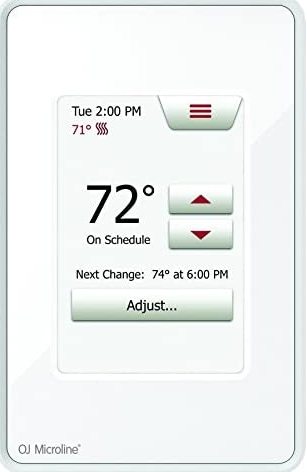

Ojelectronics UWG4 Programmable WiFi Touch Thermostat
QUICK START GUIDE

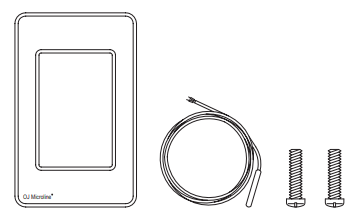

Contents

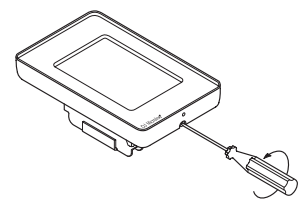

- Loosen the screw at the bottom and remove the faceplate.
- Do not attempt to remove the screw completely

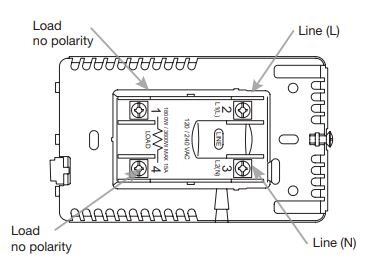

- Turn power source OFF at breaker panel. Make electrical connections to power base.
- AWG between 12 – 20.
- Note! Do not detach the screws from the terminal.
- When fastening the screws use a torque between 0.8 – 1.2 Nm.
- The floor sensor must not come in contact with electrical wires within the wall and must be routed outside the electrical box
- Thread the floor sensor cable through the hole in the power base.
- Push the electrical wires to the back of the electrical box.
- Push the power base into the electrical box.

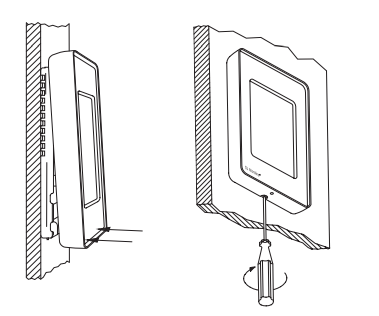

- Secure the power base to the wall
- Make the sensor connections.
- The Floor sensor has no polarity. Connect it to terminals C and D.
- The expansion unit connects to terminals A and B
- Remount the faceplate.

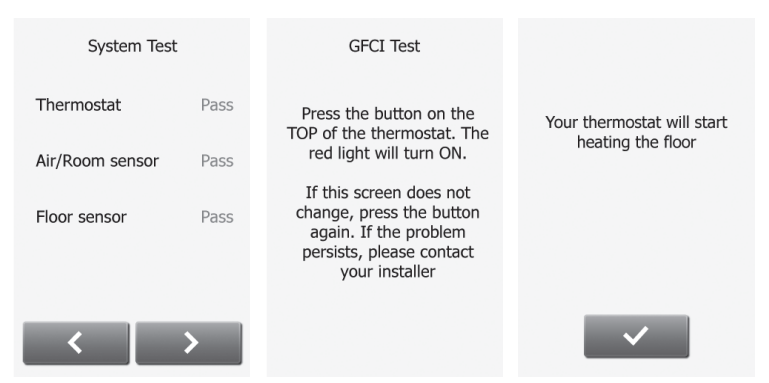

- Perform the system and GFCI tests. Once the thermostat setup is complete, confirm “Your thermostat will start heating the floor” to complete the startup wizard.

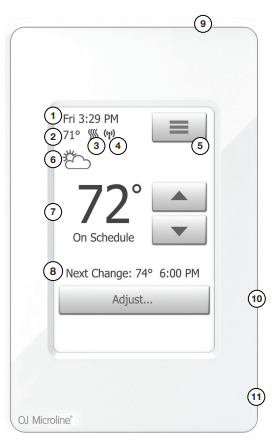

ITEMS
- Day and time
- Current temperature
- Heating indicator – when visible, system is heating.
- Wireless connection indicator – see the manual for explanations
- Access Main Menu
- Weather indication – see the manual for explanations
- Target temperature or setpoint
- Next scheduled change
- GFCI Test Button
- GFCI Indicator
- On/Off/GFCI Reset Button
- Press to turn the system ON
- Hold the turn system OFF
- Press to reset the GFC
CLASSIFICATION
The product is a Class II device (reinforced insulation) and must be connected to the following leads:
- Phase L1 (L) 120 V
- Neutral L2 (N) 0/120 V
- Max. load 15 A (resistive load)
- The Thermostat is to be used with underfloor heating.
- The terminals are suitable for field wiring cables of 12 to 22 AWG.
- Heating element in accordance with the supply voltage.
TECHNICAL DATA
- Supply Range……………………………………………. 120/240 Vac 50/60 Hz
- Load …………………………………………………….max. 15 A (resistive load)
- Max. power at e.g. …………………………………………..1800 W at 120 Vac
- ……………………………………………………………………..3120 W at 208 Vac
- ……………………………………………………………………..3600 W at 240 Vac
- GFCI …………………………………………………….. Class A (5 mA trip level)
- Temperature range ………………………….. +5 to +40°C / +41 to +104°F
- Amb. temp. range ………………………………..0 to +25°C / +32 to +77°F
- WIFI. ………………………………………………………………IEEE 802.11 b/g/n
- Contains FCC ID .. ……………………………………………S67WSDE-670GN
- Contains IC ID ……………………………………………11069A-WSDE670GN
CERTIFICATION
- UL Listed for the US and Canada
- According to the following standards:
- Thermostat: UL 60730-1
- UL 60730-2-9
- CSA E60730-1:13
- CSA E60730-2-9
- UL file number: E157297
- GFCI: UL 943 4th ed.
- CSA C22.2 No. 144.1-06
- Patent pending
WARNINGS:
To avoid electric shock, disconnect the heating system power supply at the main panel before installation and maintenance of the thermostat. Keep thermostat air vents clean and free from obstruction. This thermostat is an electrical device and must be installed in compliance with national and/or local electrical codes. Installation must be performed by qualified personnel where required by law.
QR-code
Scan the QR-code for full user manual.
OJ Electronics A/S
- Stenager 13B
- DK-6400 Sønderborg
- © 2015 OJ Electronics. All rights reserved.
- This manual and parts thereof are protected under Danish and international copyright laws.
