Ojelectronics UWG4 Programmable WiFi Touch Thermostat

• WLAN network connection
• Remote access
• Installation Wizard
• Intuitive control
• QR code support – Patent pending
• 3.5” color touchscreen

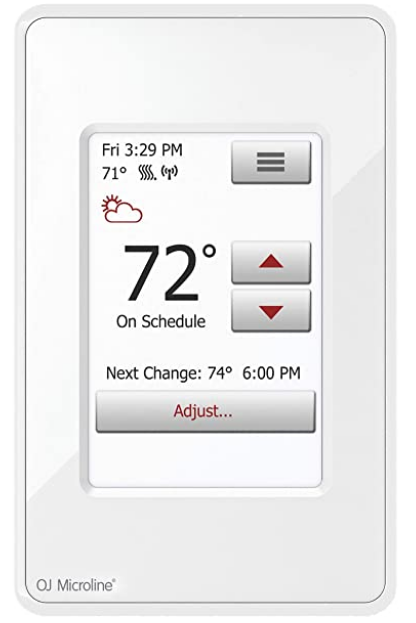

Touch thermostat for electric underfloor heating with sleek design and intuitive control designed for easy installation.

• The OJ Microline® app (iPhone and Android) features a variety of system control opportunities
• 3.5” color screen with easy interactive touch control
• Easy scheduling method and even easier on-the-fly changes
• Power consumption is saved in detail to your user account
• Thermostat settings can be exported to the web page for technical support
• Universal compatibility with existing floor heating sensors
• Suitable for tile, stone, laminate, concrete, and wooden floor
• 5-year battery backup of clock and calendar
• QR code support – Patent pending
• Sleek design – Patent pending

Remote accessibility

OJ Microline® Touch thermostats enable remote WLAN connectivity, which gives users a convenient way to adjust and monitor their home heating system. WLAN connectivity gives easy access to information on energy consumption and system performance.

Smart interaction
Using a thermostat with a color touch screen is much easier. For every action there is an entire screen designed for that use, therefore programming, schedule override, and set-up become much easier for both the user and installer.
Power logging
Follow the floor heating power consumption with a few touches on the display or log into your account from an app or the web.

Easy installation

Connect the wires, turn on the power, and follow the wizard. No need to remember special settings, the wizard will walk the installer through the process. And there will be no unintended heating before final-izing installation, the wizard runs a checklist first.

Control the power – Your way
The installation wizard is your guide. The thermostat’s default setting is for ambient temperature control with floor temperature protection. The included floor sensor can be replaced with any floor sensor with a setting to make the necessary adjustments. The floor protection includes settings for laminate/wood, tile, and concrete or allows the selection of maximum temperature settings. Whether you prefer the heating to start at a specific time or you want it to be warm at a specific time (we call it an early start), if you want the heating to stop when you start cooling, but always to start if it passes the setting threshold – just follow the wizard.

Additional features

• Child lock
• Supported languages: US English, Canadian French, Mexican Spanish
• Three control modes: Ambient temperature with floor protection, floor temperature with floor protection, and ambient temperature without floor protection, (regulator mode without sensor)
• Two date formats: mmddyyyy, ddmmyyyy
• Two-time formats: 24-hour, 12 hours

TECHNICAL DATA

• Supply 120/240 Vac 50/60 Hz
• Load 15A maximum (resistive load)
• Power 1,800 W at 120 Vac
• 3,120 W at 208 Vac
• 3,600 W at 240 Vac
• GFCI Class A (5 mA trip level)
• Temperature range +41 to +104°F (+5 to +40°C)
• Floor limit range +41 to +104°F (+5 to +40°C)
• Floor protection laminate/wood 82F (27.5C)
• Floor protection tile 88F (31.0C)
• Amb. Temp. range +32 to +104°F (0 to +40°C)
• On/Off differential 0.7°F (0.4°C)
• Regulation principle PWM / PI
• Housing IP20
• Floor sensor type NTC (10 KΩ) 15 ft (4.5 m)

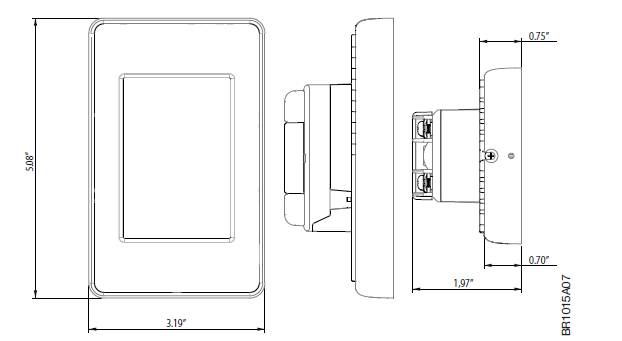

• Dimensions (H/W/D) 5.1/3.2/0.8 inch (130/82/20mm)
• Wall box (H/W/D) 3”/2”/2”
• Display 3½”, 65k color
• Touch resistive
• Programmable events 1- 6 events per day
• WLAN 802.11 b.g.n WLAN module. port 80 access

c-UL-us according to the following standards:

• Thermostat: UL 60730 CSA- E60730
• UL E-file: E157297
• GFCI: UL 943 CSA C22.2, No. 144. 1-06
  Approvals:
• FCC information: S67WSDE-670GN
• IC: 11069A-WSDE670GN
