OJ ELECTRONICS MCD4-UA Clock Thermostat
DIMENSION
4 Event Clock Thermostat
An “all-in-one” clock thermostat for electric underfloor heating control where optimum comfort temperature and minimum energy consumption are required.
- The thinnest clock thermostat on the market, only 20 mm, making it easy for the installer.
- Easy animated menu navigation and programming in 8 different languages. The programming is now child’s play, ensuring the fastest and easiest set-up.
- Set and forget! Adaptive control ensuring comfort temperature at the required time.
- Compatible with existing floor sensors, making it the best thermostat for renovation purposes.
PRODUCT PROGRAMME
TYPE/PRODUCT
- MCD4-1999-UA: All in one – Clock thermostat with built-in room sensor and floor limit sensor. The ideal service thermostat.
- MCC4-1991-UA: Clock thermostat incl. floor sensor 3 m.
- MCC4-1999-UA: Clock thermostat with built-in room sensor.
Thermostat control
Electronic thermostat for control of temperature by means of a sensor placed either externally in the floor or built into the thermostat. MCD4 can also operate in regulator mode (option). This is useful for renovation purposes where it is not possible to use a floor sensor.
Easy read-out of energy consumption
Total switch-on time in percent and calculated cost can be read out for the last 2 days, 30 days or 365 days. Overall energy consumption can thus be monitored.
Built-in clock – calendar with power backup
Comes with built-in 4-event program for automatic comfort and setback temperature. The clock and calendar have built-in battery backup, so the user never has to care about setting the clock after power interruption.
Graphical display

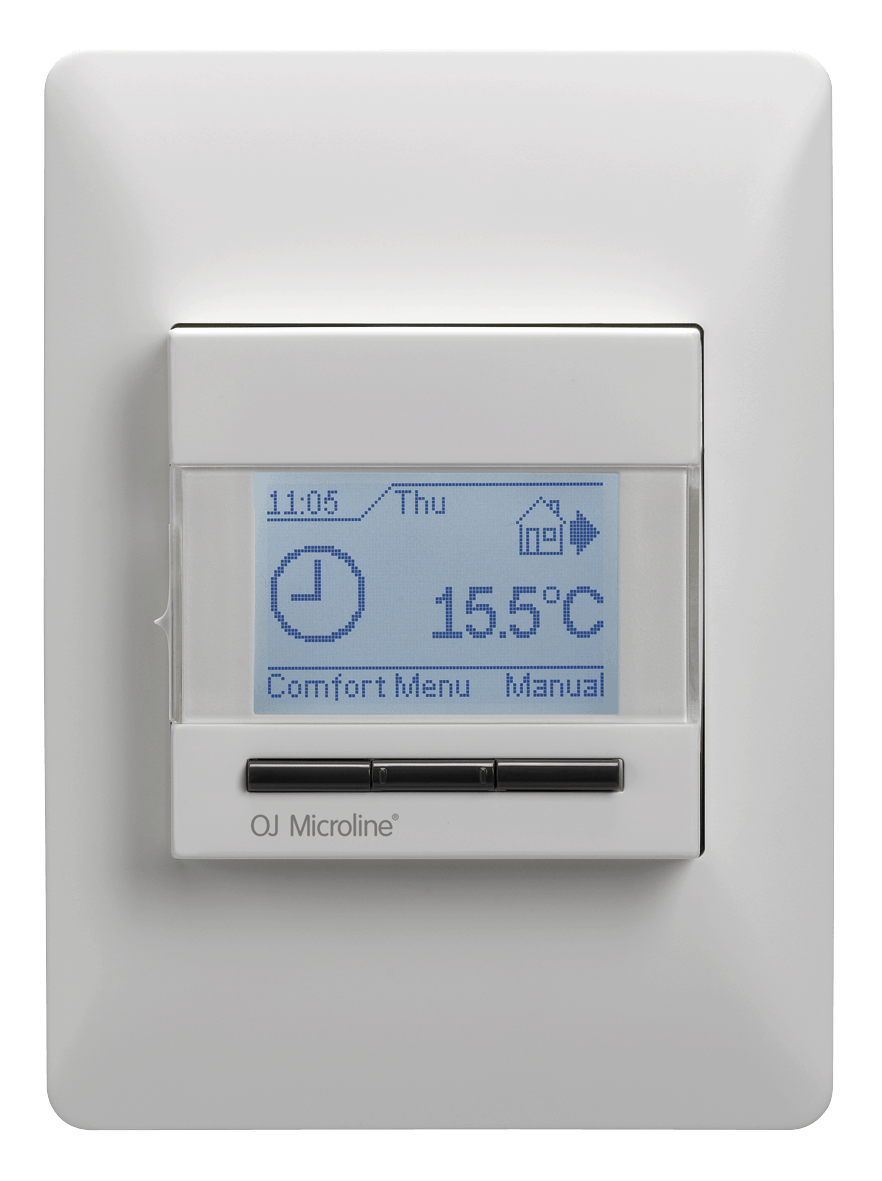

Unique user interface with new animated graphical menus and button based navigation for easy programming and readout of data.
Factory-set events
The thermostat is delivered with factory-set programs as detailed below:
DAY 1-5
EVENT TIME TEMPERATURE
- 1 06:00-08:00 Comfort 20°C
- 2 08:00-16:00 Setback 15°C
- 3 16:00-23:00 Comfort 20°C
- 4 23:00-06:00 Setback 15°C
DAY 6-7
EVENT TIME TEMPERATURE
- 1 06:00-23:00 Comfort 20°C
- 4 23:00-06:00 Setback 15°C
Individual programming of events:
The factory-set periods and/or temperatures can be changed according to requirements.
Furthermore, the following programs can be selected:
- 4 events for 5 days and 2 events for days 6+7
- 4 events for 6 days and 2 events for day 7
- 4 events per day
Comfort mode
The room temperature can be temporarily changed for a single event. The comfort mode temperature is reset after a user selected number of hours. The thermostat will then return to the scheduled event program.
Manual mode
The scheduled event program can be cancelled, e.g. during holidays, and the temperature set for frost protection purposes instead, e.g. to 5°C. The new setpoint will remain active until manual mode is cancelled.
TECHNICAL DATA

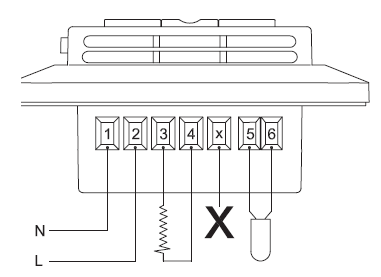

- Supply voltage: 230 V AC ±10% 50/60 Hz
- Output relay SPST: 16 A, resistive load or 1 A inductive load
- Interrupter: 2-pole, 16 A
- Temperature range: +5/+40 °C
- Floor limit range: +5/+40 °C
- Clock function: 4-event program
- Battery backup: 5 years
- Ambient temperature:0/+40 °C during operation
- On/Off differential: 0.4 °C
- Regulation principle: PWM / PI.
- Housing: IP21
- External Sensor type: NTC (12 KΩ) 3 m

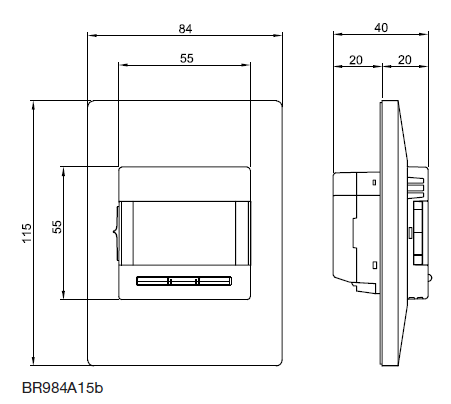

- Dimensions (H/W/D): 115/84/40 mm (20 mm depth)
- Display: 100×64 pixel STN – White backlight
- EU Registered Design: 001101349-0001
Approvals:
VDE, BEAB,NEMKO, GOST
