NEOMITIS RTE7RFA PROGRAMMABLE ROOM THERMOSTAT
PACK CONTAINS
INSTALLATION RECEIVER
For best performance, do not mount the receiver on metal wall boxes and leave at least 30 cm distance from any metal objects including wall boxes and boiler housing.
MOUNTING OF WALL MOUTING PLATE
- Unscrew the 2 screws under the receiver.
- Remove the wall plate from the receiver.
- Secure the wall plate with the two screws provided using the horizontal and vertical holes.
- In case of surface mounting, a knock out area is provided on the wall plate and on the corresponding area of the receiver.

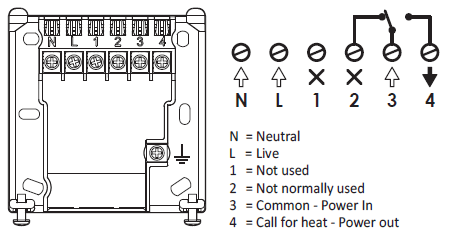

WIRING
MOUNTING OF THE RECEIVER
- Replace the receiver on the wall mounting plate.
- Secure the receiver by screwing the both locking screws under the receiver.
INSTALLATION THERMOSTAT
Recommended locations for your thermostat. To ensure that your ther mostat provides accurate readings and controls effec- tively, it must be installed approximately 1.5 m above floor level on an inside wall, away from direct sunshine and any other sources of heat or cold such as radiators, cold draughts, etc. NB: In order to ensure proper operation of the product, ensure that the thermostat is not positioned near to an area which could be affected by interference from another source. E.g.: a wireless transmit- ter or receiver, TV, PC, etc.
INSTALLING BATTERIES
- Remove the batteries cover which is placed on the front of thermostat.
- Insert the 2 batteries AA
- Replace the batteries supplied.
MOUNTING OF THERMOSTAT
ON THE WALL
- Unscrew the 2 screws under the thermostat.
- Remove the wall plate from the thermostat.
- Secure the wall plate with the two screws provided using the horizontal and vertical holes.
- Replace the thermostat on the wall mounting plate.
- Secure the thermostat by screwing the locking screws under the thermostat.
On The Table Stand
- Insert the 2 pins inside the wallplate.
- Slide the stand to the right.
- Fold the stand and lock it into the wallplate.
- Tiit the thermostat according to its placement in the room. 2 tits are available.
PAIRING PROCEDURE
- Press and hold for 5 seconds the RF test button on the receiver. RF test green light is blinking.
- Within 1 minute, press and hold for 5 seconds the RF test button on the thermostat. Pairing icon is flashing.
- Thermostat RF icon and receiver green light are blinking.
- Thermostat RF icon and receiver green light will be solid when pairing is complete.
Note: the receiver is usually located near your boiler. If you want to check the signal strength, move the mode slider to (lh position and then press and release the RF test button. RF icon blinks for 10 seconds then signal strength appears. 10 is the best signal strength.
INSTALLER SETTINGS
ADVANCED INSTALLER SETTING
Access
Move the mode slider to position. Select the Programming slider position and press Enter for 5 seconds to go into the dedicated installer setting.
Set 12/24 hours clock
- The pre-set value is 12 hours clock.
- Rotate the dial to change to “24 hr”.
- Then save by pressing Enter or move the Programming slider.
Set C/’F temperature
- The pre-set temperature is Celsius (C).
- Rotate the dial to change to degree Fahrenheit.
- Then save by pressing Enter or move the Programming slider.
Set calibration
- Rotate the dial to adjust the calibration to the desired value.
- Then save by pressing Enter or move the Programming slider.
Program lock
- Rotate the dial to ON and locked.
- Then save by pressing Enter or move the Programming slider.
Select 2 points/TPI
- Rotate the dial to change to 2 points control algorithm.
- Then save by pressing Enter or move the Programming slider.
TROUBLESHOOTING
Display disappears on thermostat.
- Check batteries.
- Replace the 2 batteries. Only use alkaline 1.5V AA (LR6) batteries.
- Do not use rechargeable batteries.
The heating does not come on or does not go off.
- Your room thermostat may have been set up close to a source of heat or on a cold wall-put it in a recommended location (see the “Installing” section on page 2 for these locations).
- Check that the radio communication works between the thermostat and the receiver.
- Check if the boiler controlled by the programmable room thermostat is properly connected to the receiver.
Radio transmission is not working properly:
1-The receiver is not picking up the code sent by the thermostat.
- Check and replace thermostat batteries.
2-The receiver does not recognize transmitter’s code.
- Pair the room thermostat transmitter with the receiver again See Pairing section.
3- The receiver or the transmitter is affected by interference:
- Re site the transmitter.
- If possible, re site the receiver away from the source of the interference.
You want to change the operating mode but when you move the mode slider nothing happens.
- If the lock symbol is being displayed, then the thermostat is locked.
- Unlock the thermostat by following the instructions for doing so in the “program lock” section (see page 4).
The thermostat is in Auto Mode but programs are not being executed by the boiler:
- Ensure that the thermostat is in good working condition.
- Change the batteries.
The radio link between the thermostat and the receiver is lost.
- Check the battery level status.
- Check that the radio communication works between the thermostat and the receiver.
- If the radio communication does not work between the receiver and the thermostat
- Conduct RF Test (see page 3).
- Repeat the pairing between the thermostat and receiver (reter to the pairing proce- dure on page 3).
The thermostat does not control properly.
- Thermostat sensor may be influenced by a source of heat or cold.
- Check that the radio communication works between the thermostat and receiver.
- If the problem persists, contact your installer.
TECHNICAL SPECIFICATIONS
- Power supply: 2 alkaline 1.5 V AA (LR6) batteries.
- Manual temperature setting range: from +5°C to +30°C.
- Battery life: approx. 2 years.
- Radio frequency: 2,4035 Ghz/ 2,4055 Ghz /2,4075 Ghz
- Maximum RF power transmitted: <1mW
Receiver:
- Power supply: 230V~50/60Hz.
- Relay outputs: 5(2)A.
- Rated impulse voltage: 4000V.
- Micro-disconnection: Type 18.
- Pollution degree: 2.
- Automatic action: 100,000 cycles.ac
- Class I.
Maximum range in the home: 15m is typical but this varies depending on the building construction eg plasterboard lined with metal foil the number of walls and ceilings that the signal has to pass through and by the surrounding electromagnetic environment. Signal sending: every 10 minutes, maximum time-lag 1 minute after set-point temperature has been changed.
Environment
- Operation temperature: 0°C to +40°C.
- Storage temperature: from -10°C to +60°C.
- Humidity: 80% at +25°C (without condensation)
- Protection rating: IP30.
N.B.: this room thermostat is one part of a complete radio system and will only work with the 230V AC receiver.
EU declaration of conformity: We hereby declare under our sole res ponsibility that the products described in these instructions comply with the provisions of Directives and harmonized standards listed belowa
Thermostat
- RED 2014/53/EU:
- Article 3.1a (Safety): EN60730-1/ EN60730-2-7/EN60730-2-9/ EN62311
- Article 3.1b (EMC): ETSI EN301489-1/ ETSI EN301489-3
- Article 3.2 (RF): ETSI EN 300440
- Directive RoHS 2011/65/EU, amended by Directives 2015/863/EU and 2017/2102/EU
- ROHS: EN50581:2012
Receiver
- RED 2014/53/EU:
- Article 3.1a (Safety): EN60730-1/EN60730-2-9/ EN62311
- Article 3.1b (EMC): ETSI EN301489-1/ ETSI EN301489-3
Article 3.2 (RF): ETSI EN 300440
Directive RoHS 2011/65/EU, amended by Directives 2015/863/EU and 2017/2102/EU - ROHS: ENS0581:2012 and are manufactured using processes that are certified iSO 9001 2015
The symbol, affixed on the product indicates that you must dispose of it at the end of its useful life at a special recycling point, in accordance with European Directive WEEE 2012/19/EU. If you are replacing it, you can also return it to the retailer from which you buy the replacement equipment. Thus, it is not ordinary household waste. Recycling products enables us to protect the environment and to use less natural resources.
