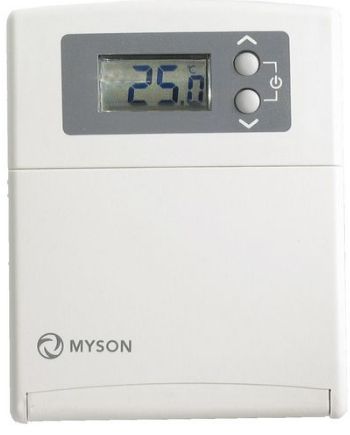

Myson MRTE Digital Room Thermostat

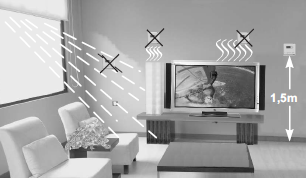

LOCATION

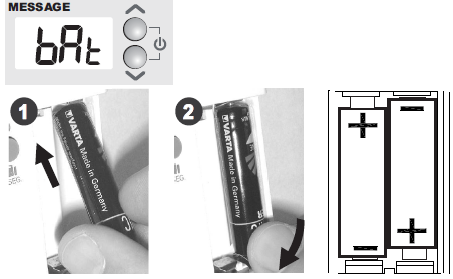

REPLACE BATTERY

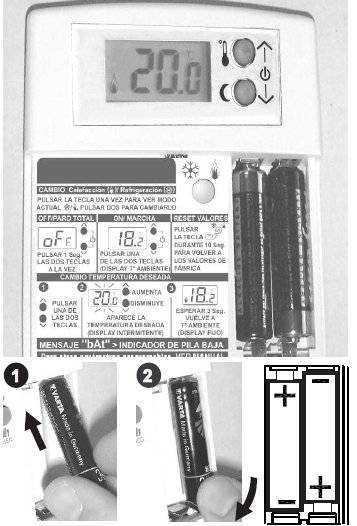

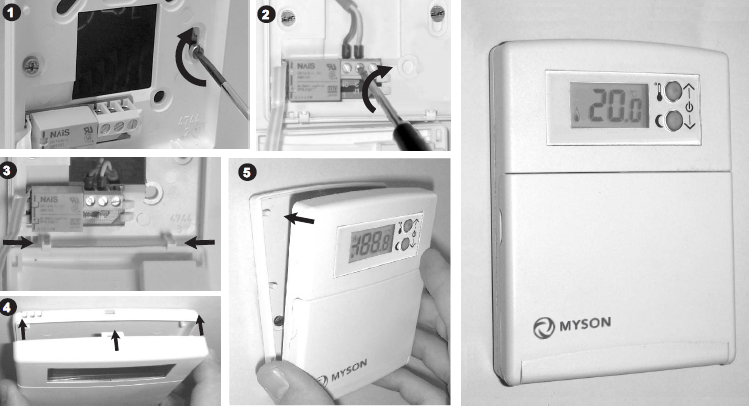

INSTALLATION
REGULATION MODE IN HEATING BY DEFAULT

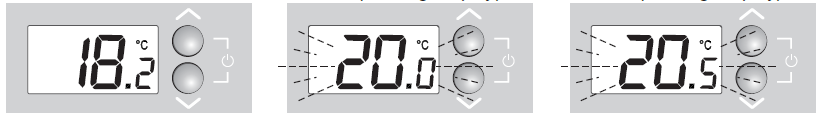

- Put in batteries
- The room temperature will appear (Fixed Display

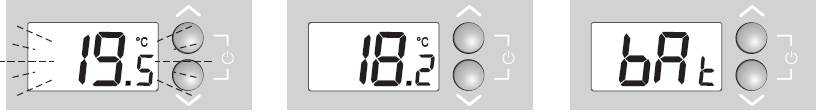

- Push
to select the desired temperature (Blinking Display) - Push, to increase the temperature desired (Blinking Display
- Push, to decrease the temperature desired (Blinking Display
- Wait for 3 sec. Display return to room temperature (Fixed Display
- Low battery message (Blinking bAt with room Temp

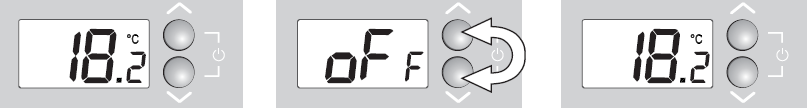

OFF / ON
- With the display in room . temperature (Fixed Display)
- Push both buttons together (Blinking OFF with room temp
- Push (Display returns to room temp.)
ACCESS TO PARAMETERS
- Pushing , you can enter the desired temp (Blinking display)
- Push by 10 seconds (Both buttons together)
- You will enter in the optional parameters
- Go to the next parameter Change parameter value

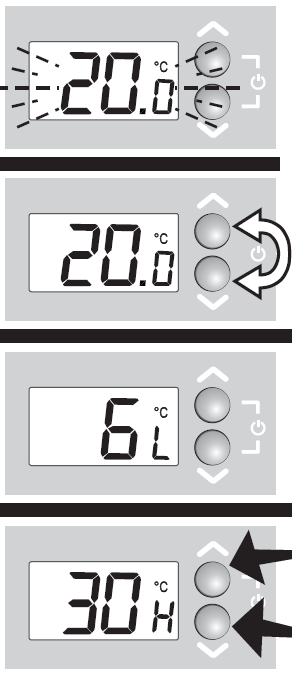

Optional parameter adjustments

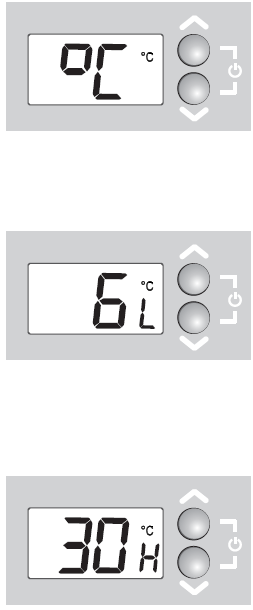

- Visual Temperature in ºC or ºF (parameters settings in ºC or ºF)
- Blocking of the desired temp. for a minimum limit (Adjustable: 5 to 19ºC / 41 to 66ºF)
- Blocking of the desired temp. for a maximum limit (Adjustable: 20 to 35ºC/ 68 to 95ºF)

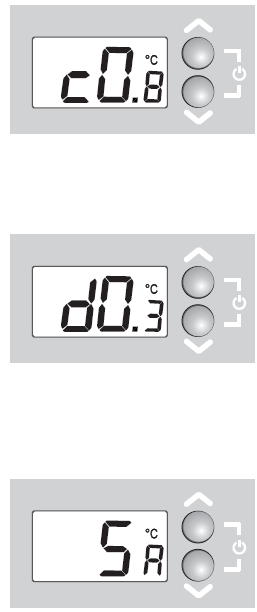

- Adjustment of visual Temp. (Adjustable: -3 to 3ºC/ -5,4 to 5,4ºF)
- Differential
- (
Adjustable: 0,1 to 2ºC/ 0,2 to 3,6ºF) - (
Adjustable: 0,2 to 2ºC/ 0,4 to 3,6ºF)
- (
- Anti-ice cycle
- Adjustable between OFF or 5ºC to 18ºC 40ºF to 64ºF
- Adjustable between OFF or 5ºC to 18ºC 40ºF to 64ºF

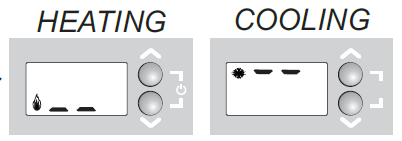

CHANGE MODE HEATING ( BY DEFAULT) / COOLING( )
- if you push once you can see the actually mode of regulation, and pushing another time you change the mode of regulation.
- it’s recommended that in mode cooling the differential has to be higher for protect the motor
VALUE RESET
pushing the button by 10 seconds the values of parameters returns to factory settings

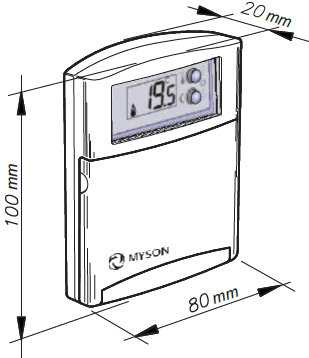

Dimension

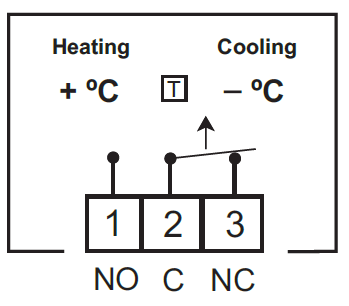

Electrical Diagram
Technical Information
Electronic thermostat
- This equipment has a 2 years guarantee, which means it only replaces the faulty part.
- We do not take any responsibility for deteriorated equipment, which are a result of bad handling.
The guarantee does not include:
- Equipment with deteriorated, worn or modified serial number.
- Equipment whose connection or use has not been carried out in accordance with the indications attached to equipment.
Equipment modified without prior agreement from manufacturer. - Equipment whose deterioration is due to bangs or emanations of liquids or gases.
Conditions of Guarantee
VERY IMPORTANT!
- It is installer’s responsibility to fit electrical protection suitable for the installation (STANDARDIZED).
- This appliance should be mounted on a universal recessed box.
- In accordance with our policy of continual product improvement, we reserve the right to amend the specification of these products without prior notification.
- Independently mounted control device for surface mounting and connection to fixed wiring
- Device designed for use in non-polluted environments.
MYSON CONTROLS
- MYSON LTD, EASTERN AVENUE,
- TEAM VALLEY, GATESHEAD,
- TYNE & WEAR, NE11 0PG
- SALES OFFICE No.: 0845 402 3434
