Introduction

Welcome
Your new thermostat will provide year of reliable service. Using this digital thermostat will provide more uniform comfort in your home through the seasons. Thank you for buying the product! Please read this manual for complete instructions on installing and operating your thermostat. If you require further assistance, please feel free to contact us.

In the box

• Thermostat 1pc
• Screws 2pc
• User Guide 1pc
• Wall plate 1pc

Service
We offer the warranty of 18 months from the sales day. If it is not the problem of quality or beyond the warranty time, we will charge for the after-sale service

Technical Data

• Sensor：NTC Accuracy：±0.5℃
• Temp. Range：5 -35℃ Power Consumption：<1.5W
• Timing error：<1％
• Power Supply：110~240V, 50 ~60Hz
• Current Load： Induction for fan: 3A;
• Resistive for fan: 5A
• Shell Material：PC （Fireproof）
• Dimension：86x86x13.3mm
• Installation box：86*86mm or European 60mm
• Ambient Temp.：0 ~ 45℃，5 ~ 95％RH(Non condensing）
• Storage Temp：-5~ 60℃

About your thermostat

Tp528 series Modern Touch Screen Room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy. TP528Series are microprocessor based thermostat with LCD display.

Features of your thermostat

• Modern desgin similar as a cell phone.
• Beautiful Frame CHROME creates elegant life.
• Acrylic lenses to avoid the finger scrath.
• Touch Button makes simple operation.
• Large screen display with backlight is easy to read—even in the dark.
• Four periods program schedules maximize comfort and economy.
• One-touch temp control overrides program schedule at any time.
• Precise comfort control keeps temperature within 0.5°C of the level you set.
• Internal and external sensor selectable is suitable for any place.
• Data memory when power is off.
• Easy installation.
• 86mm hidden box and european 60mm round box is available.

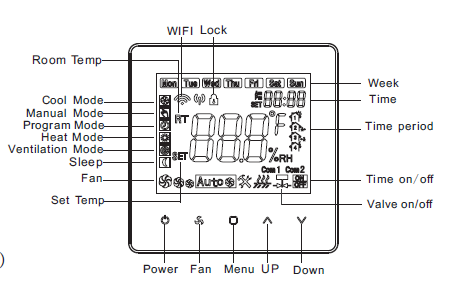

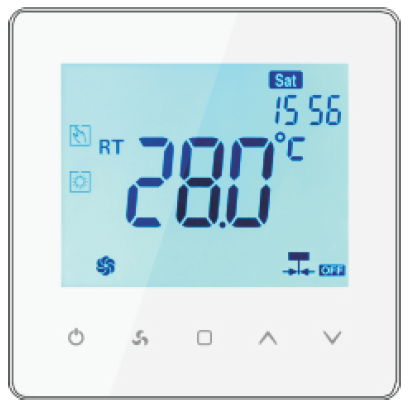

Display

Model definition of your thermostat

• Fc2: Two pipe; Control Fan Coil Unit and Two wired Motorized valve.(when room temperature reaches the setpoint, both will turn off)
• FC2F: Two pipe; Control Fan Coil Unit and Two wired Motorized valve.(when room temperature reaches the setpoint, valve will turn off but fan will turn to low speed)
• D: Two pipe; Control on/off Motorized Damper
• C: Two Pipe; Control Fan Coil Unit and Three wired Motorized valve
• M1: Two pipe; Control 0-10V Motorized Valve
• 4: Four pipe; Control Fan Coil Unit and Two wired
• Heat and Cool Motorized valve.
• T: Clock
• L: Backlight
• P: Weekly Programmable
• N: RS485/MODBUS RTU communication
• K: Keycard
• E: External sensor
• P and N could not be compatible at the same time.
• For example:TP528FC

Operation

• Setting the temperature
  • When power is on,long press button,you could select manual mode or program mode
  • In the mode of programmable, set temperature, time and timing on/off could not be adjusted. If the user wants to change, please reprogram.
  • In the mode of manual, press to set the temperature. will display in the left corner of screen.
• Setting Lock (optional function)
  • Press and holdfor 3 sec. to lock the screen.
  • The icon will display on the screen.
  • Press and hold again for 3 sec. to unlock the screen.
• Setting the fan
  • Press to select the fan speed AUTO, HIGH, MED, LOW.
• Setting the system mode
  • Press to change the system mode HEATING, COOLING and VENTILATION. In the mode of VENTILATION, the valve is off but the fan runs
  • When power on,long press to set weekly proram
• Setting the Sleeping
  • Press and Hold to set the sleeping. will flash.
  • Press and Hold at the same to cancel
• Select manual and program
  • When power on Long press button, will flash
  • Press , will flash. Long press to
  • select weekly programmable
  • Long press to set min of the time
  • Press to set hours of the time;
  • Press to set week of the time;
• Adjusting the weekly programmable
  • When power on,Long press into programmable.
  • Press to change the different items.
  • Press to set the relative values.
  • The order is Minute adjusting→ Hour adjusting → Temerature adjusting → Minute timing-on → Hour timing-on→ Minute timing-off→ Hour timing-off→
  • Temperature adjusting ( “12345”,”6”,”7”, is “5+1+1” programmable mode, every mode has two times zones and a time temperature setting)

Week	First Period			Second Period
	Turn on time	Turn off time	Set temp.	Turn on time	Turn off time	Set temp.
Mon-Fri	1	2	3	4	5	6
Sat	7	8	9	10	11	12
Sun	13	14	15	16	17	18

• Configuration Menu Settings
  • During power off, press and hold at the same time for 5 sec.to enter the configuration menu
  • Short Press to change the settings
  • Press to set the relative values.
  • All the settings will confirm automatically when power is on.

No.	Function	Press           set	Default
1	Temp. Calibration	– 6℃ to 6℃	0℃
2	Max Set Temp.	20℃ to 35℃	30℃
3	Min. Set Temp	5℃ to 20℃	14℃
4	working Mode	1: Cooling Only            2: Heat/ Cool	2
5	Temp Display	F:Fahrenheit              C: Celsius	C
6	Fan Control	0: When room temp reaches the setpoit, the fan will turn off 1: When  room temp reaches the setpoint, the fan will turn to low speed	1
7	Lock	0: All buttons locked except power 1:All buttons locked	0
8	Time Display	1:12hours           0：24hours	0
9	Display Mode	0: Display both room temp and set temp 1: Display set temp only	0
A	Dead Zone Temp	1-5℃	1℃
B	Data Memory	0:Power off when power lose 1：Remain the same status when power on	1
C	Rs485 address	1- 254	001

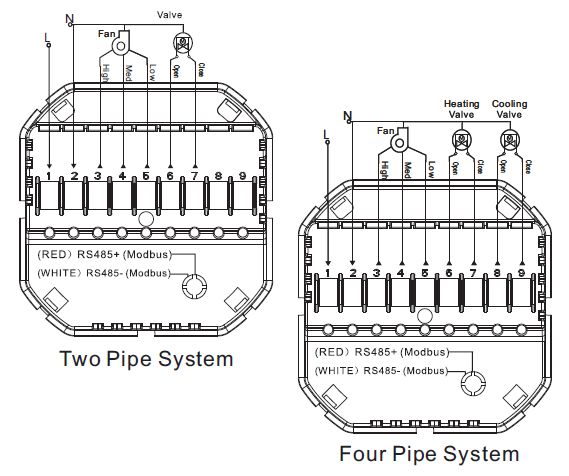

Wiring your thermostat

Installing your thermostat

This product is suitable for standard 86mm wall box or european 60mm round box.

•  Connect the wire of power and other equipment into the terminals.

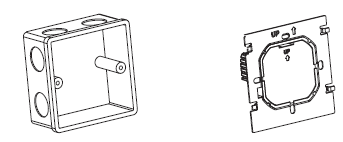

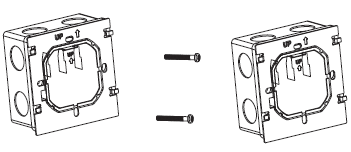

•  Fix the wall plate into the wall box by a screwdriver

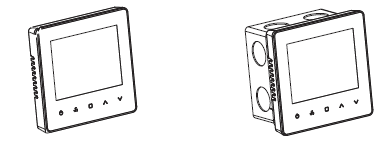

•  Connect the LCD board into the wall plate
