Midea TP201AL Programmable Room Thermostat User Guide

MIDEA LOGO

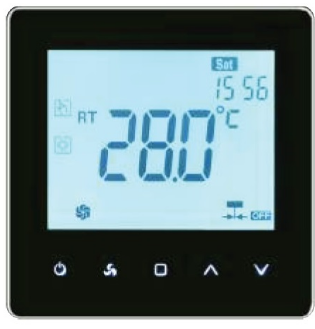

Midea TP201AL Programmable Room Thermostat

Midea- TP201AL- Programmable- Room- Thermostat- pro

Introduction

Your new thermostat will provide years of reliable service. Using this digital thermostat will provide more uniform comfort in your home through the seasons. Thank you for buying the product! Please read this manual for complete instructions on installing and operating your thermostat. If you require further assistance, please feel free to contact us.

In the box

  • Thermostat
  • Screws
  • User Guide

Service

We offer a warranty of 18 months from the sales day If it is not a problem of quality or beyond the warranty time, we will charge for the after-sale service.

Application

TP201 series Modern Touch Screen Programmable Room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy TP201 are microprocessor based thermostat with LCD display.

Features of vour thermostat

  • Modern desgin similar as a cell phone.
  • Acrylic lenses to avoid finger scrath.
  • Touch Button makes simple operation.
  • Large screen display with backlight is easy to read even in the dark.
  • 7 days four periods program schedules maximize comfort and economy.
  • One-touch temp control overrides program schedule at any time.
  • Precise comfort control keeps temperature within 1°C of the level you set.

Easy installation.

  • 86mm*86mm hidden box.
  • Black and white shell is optional.
  • Home screen quick reference

DisplayMidea- TP201AL- Programmable- Room- Thermostat- 1

Model definition of your thermostat

  • A1: Two pipe; Control Fan Coil Unit and Two wired Motorized valve.(when room temperature reaches the setpoint, both will turn off)
  • A2: Two pipe; Control Fan Coil Unit and Two wired Motorized valve.(when room temperature reaches the setpoint, valve will turn off but fan will turn to low speed)
  • B: Two pipe; Control on/off Motorized Damper
  • C: Two Pipe; Control Fan Coil Unit and Three wired Motorized valve
  • E: Four pipe; Control Fan Coil Unit and Two wired Heat and Cool Motorized valve.
  • L: Backlight
  • P: Weekly Programmable
  • For example: TP201A1LP

Operation

Setting Power on/off
Press Midea- TP201AL- Programmable- Room- Thermostat- 2to turn on/off the power.

Setting Temperature
Press Midea- TP201AL- Programmable- Room- Thermostat- 3to set the temperature. Factory default is 26 C.

Selecting System Mode
Press Midea- TP201AL- Programmable- Room- Thermostat- 4 to select Midea- TP201AL- Programmable- Room- Thermostat- 5 heating,Midea- TP201AL- Programmable- Room- Thermostat- 6 cooling or Midea- TP201AL- Programmable- Room- Thermostat- 7 ventilation. Factory Default is ventilation.

Setting the Fan Speed

  • Press Midea- TP201AL- Programmable- Room- Thermostat- 17 to select the fan speed.
  • Midea- TP201AL- Programmable- Room- Thermostat- 9is Low speed(Factory default);
  • Midea- TP201AL- Programmable- Room- Thermostat- 10is Med speed;
  • Midea- TP201AL- Programmable- Room- Thermostat- 11is High speed;
  • Midea- TP201AL- Programmable- Room- Thermostat- 12is Auto speed.

In auto mode, the fan will run according to the comparision of room temperature and set temperature.

Adjusting Day Program Schedules

  • Press and hold Midea- TP201AL- Programmable- Room- Thermostat- 4 for 3 sec., hh will flash in the postion of hh:mm.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the hour.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4, mm will flash in the postion of hh:mm.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the minute.
  • The above is the steps to set real time.
  • Then go into day programmable setting.
  • PressMidea- TP201AL- Programmable- Room- Thermostat- 4 . 1 (for example) will flash in the postion of 1234567.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3to adiust the week.
  • PressMidea- TP201AL- Programmable- Room- Thermostat- 4 . period 1 © and hh will flash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the hour.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4, period Midea- TP201AL- Programmable- Room- Thermostat- 13 and mm will flash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the minute.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 17to confirm the setting:
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4. period 2Midea- TP201AL- Programmable- Room- Thermostat- 13 O+ and hh will flash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the hour.
  • ‘PressMidea- TP201AL- Programmable- Room- Thermostat- 4 , period 2Midea- TP201AL- Programmable- Room- Thermostat- 13 O. and mm will flash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the minute.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4to confirm the setting;
  • PressMidea- TP201AL- Programmable- Room- Thermostat- 17 . period 3 Midea- TP201AL- Programmable- Room- Thermostat- 15 and hh will flash.
  • PressMidea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the hour.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4periodsMidea- TP201AL- Programmable- Room- Thermostat- 15 the aid ten wil ash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 17to confirm the setting:
  • PressMidea- TP201AL- Programmable- Room- Thermostat- 4 , period 4 Midea- TP201AL- Programmable- Room- Thermostat- 16, and hh will flash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the hour.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4. period 4 Midea- TP201AL- Programmable- Room- Thermostat- 16 and mm will flash.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 3 to adjust the minute.
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 17to confirm the setting;
  • Press Midea- TP201AL- Programmable- Room- Thermostat- 4, loop will display in the screen.
  • One day programmable setting is finished.

Technical Data of your thermostat

  • Power Supply: AC85-260V, 50/60HZ
  • Power Consumption: <0.5W
  • Current Load: 3A
  • Sensor: NTC
  • Accuracy: $1 °C
  • Dimension: 86*86*13.3mm (H*W*D)
  • Set Temp.: 10 C – 40 C
  • Shell Material: Fireproof PC+ABS
  • Installation Box: 86*86mm
  • Working Ambient: 0~ 45°C, 5~95% non-condensing.
  • Storage Temp.: -5-55°C

WiringMidea- TP201AL- Programmable- Room- Thermostat- 18

Installing your thermostat

  • This product is suitable for standard 86*86mmMidea- TP201AL- Programmable- Room- Thermostat- 19
  • Open the control board by a Flat-blade screwdriver in the position
  • Remove The CablesMidea- TP201AL- Programmable- Room- Thermostat- 20
  • Connect The WiringMidea- TP201AL- Programmable- Room- Thermostat- 21
  • Fix the back cover by the two screws inside the box Midea- TP201AL- Programmable- Room- Thermostat- 22
  • Connect the control board and back cover.Midea- TP201AL- Programmable- Room- Thermostat- 23

NOTICE: The installation wire should be 1.5-2.5mm2.

WARNING: Please arrange a professional technician to install this product according to the installation drawing and instructions.

RISK OF ELECTRICAL SHOCK. Disconnect the power supply before making an electrical connection. Contact with components carrying hazardous voltage can cause electrical shock and may result in severe personal injury or death.
