Midea THP-1001 Fan Coil Thermostat User Guide

Your new thermostat will provide uniform and comfortable temperature control throughout every room in your property. We bring together technology, craftsmanship and the highest quality materials to provide you with a safe, reliable product combined with sleek, contemporary design. Please read this installation/programming manual for comprehensive instructions on installing and operating your thermostat. Please also ensure a suitably qualified person installs your thermostat and complies with all local regulations.

In the box

Thermostat 1pc
Screws 2pc
User Guide 1pc
QC Passed 1pc
Screws 1pc
Wall plate 1pc

ABOUT YOUR THERMOSTATS
THP-1001 series Modern Round Touch Screen Room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp. as reaching the aim of comfort and saving energy.

MODEL DEFINITION

A: Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
M: Two pipe; Control Fan Coil Unit and 0-10V Motorized Valve
E: Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and
Two Wired Cool Valve.
N: Modbus RTU communication
W: Wifi connection
K: Keycard
W2: Window
T: Clock
P: Programmable
E: External Sensor
For example THP-1001A

FEATURES

On Appearance

A negative black screen will bring you to a secret world.
Modern appearance leads to modern life.
Beautiful UI design.
Touch buttons to make simple operation.
86mm hidden box and European 60mm round box is suitable.
White, black housing creates your colorful life.

On Functionality

Powerful functions are available such as WIFI etc,
0.5°C Accuracy keeps the temperature within the level you set.
Humidity sensor helps you know the humidity around you. (customize)
Data memory when power is off.
5+1+1 days six periods programmable maximize comfort and economy.
Interated with Amazon Echo ,Google Home, Tmall Genie, IFTTT.
All setting languages synchronize your time zone, address and language.
No limit to add rooms and support device sharing with family.

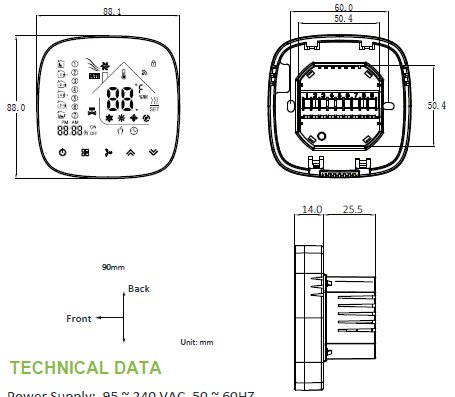

DIMENSION

TECHNICAL DATA

Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: ‡0.5 C
Set Temp. Range: 5 – 35 C
Dispaly Temp. Range: 5 ~ 99 C
Ambient Temp.: 0 ~ 45 C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: -5 ~ 45 C
Power Consumption: <1.5W
Timing Error: < 1%
Shell Material: PC +ABS (Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP20
Buttons: Capactive Touch Buttons

BEFORE WIRING AND INSTALLING

Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
Installer must be a trained, experienced service technician.
After installation is complete, check out product operation as provided in these instructions.

CAUTION
Electrical Shock or Equipment Damage Hazard. Can shock individuals or short equipment circuitry. Disconnect power supply before installation.

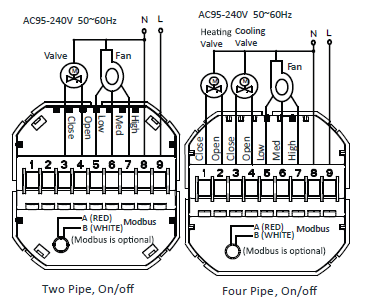

Wiring

INSTALLATION

Your thermostat is suitable for installation within a standard 86mm pattress box or European 60mm pattress box.

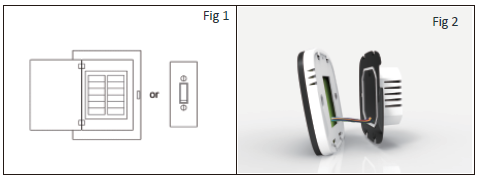

Step 1. Keep power off.
Step 2. Remove the mounting Plate by rotating the LCD part.

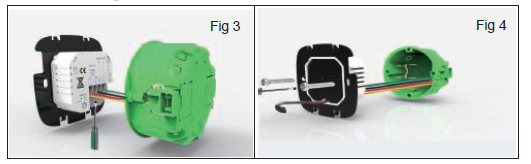

Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details
Step 4. Fix the mounting plate into the wall with screws in the box.

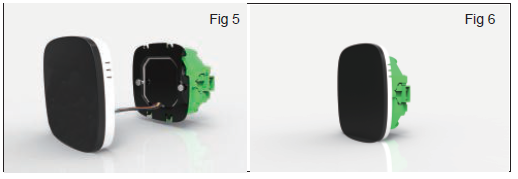

Step 5. Fasten body of the thermostat and the mounting plate by rotating.
Step 6. Installation complete.

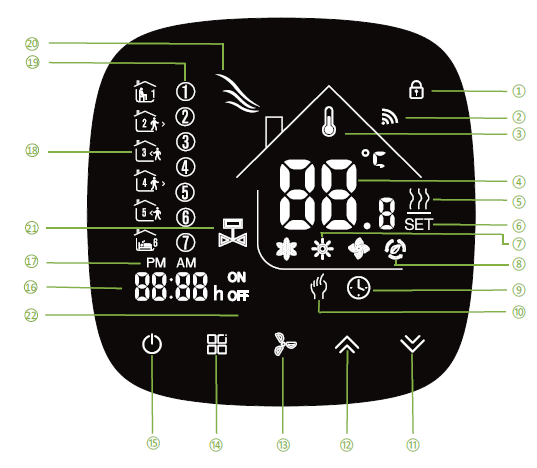

Display

OPERATION

During power on

Power On/off: Press to turn the thermostat on/off.
Manual & Programmable
- Press and hold will flash. Press to select manual and pres W to select weekly programmable.
Setting Temperature
- In the mode of manual, press to set temperature. “SET” will display in the left corner of screen.
Locking your thermostat
- Press and hold the arrows for 5 seconds to lock/unlock your thermostat.
Selecting System Mode
- Press to change the system mode HEATING, COOLING and VENTILATION. In the mode of VENTILATION, the valve is off but the fan runs.
Setting the Fan Speed
- Press to select the fan speed AUTO, HIGH, MED, LOW.
Adjusting/Setting the Clock
- Press and hold will flash.Press to set minute, hour and weekday (1 = Monday, 2 = Tuesday etc.) by using the arrows, after 3 seconds the value will be confirmed automatically.

Adjusting the Weekly Programmable

Press to do the adjustment of weekly programmable.
Then press change the different items. Press to set the relative values.
Your thermostat provides six scheduled heating and cooling periods each day – three Comfort periods – 1, 3 & 5 (the temperature required when room is occupied) and three Economy periods – 2, 4 & 6 (the temperature required when room is unoccupied.
You can set both the time and temperature for each of these six daily periods.
Adjusting/setting the schedules can only be carried out when in program mode; Touch M (mode) to change between manual mode and program mode.
In manual mode, will show in the bottom left of the screen.
Touch the icon for four times until the weekday schedule settings appear (1 2 3 4 5 will show along the top of the screen).
Use the arrows to adjust the time for the 1st (Comfort) period Press the icon and use the to set the temp. for the Ist period. Repeat this process for periods
Press the icon once more to enter the weekend schedule settings (6 & 7 will show along the top of the screen).
Repeat the above process to set the weekend schedule.
Press once more to confirm and exit.

Default settings for program schedule

Time display	WEEKDAY (MONDAY – FRIDAY) (12 3 4 5 shows on screen)		WEEKEND (SATURDAY) (6 shows on screen)		WEEKEND (SUNDAY) (7 shows on screen)
Time display	TIME	TEMPERATURE	TIME	TEMPERATURE	TIME	TEMPERATURE
Period 1	06:00	20。C	06:00	20。C	06:00	20。C
Period 2	08:00	15。C	08:00	20。C 。	08:00	20。C
Period 3	11:30	。 15 C	11:30	20 C	11:30	。 20 C
Period 4	13:30	。15 C	13:30	20 C	13:30	。 20 C
Period 5	17:00	22。C	17:00	20。C	17:00	20。C
Period 6	22:00	15。C	22:00	15。C	22:00	15。C

During Power Off

Setting the Functions and Options
When power is off, press and hold and at the same time for 5 sec. in order to reach system function.
Then press to change the different items.
All the settings will confirm automatically when power is on

Code	Function	Setting and options	Default
1	Temperature	-9 to 9 。C	-3
2	Fan control	00:When room temp. reaches the set point,the fan will turn oﬀ 01:When room temp. reaches the set point,the fan will keep running.	0
3			01
4	Heat/cool	00:Cool only 01:Heat/Cool	01
5	Min. Set Temp.	5 to 15。C	05
6	Max. Set Temp.	15 to 35。C	35
7	12/24 hours	00:12h 01:24h	01
8	Display Mode	00：Display both set temp. and room temp. 01: Display set temp. only	00
9	Energy saving Mode	00: Non-energy saving Mode 01: Energy saving Mode,set Temp. keep economy Temp.	00
A	Temp.	10 to 30。C	20
B	Cooling Economy Temp.	10 to 30。C	26
C	Deadband Temp.	1 to 5。C	1
D	Standby Bightness of backlight	3-99 bigger value,more brightness	4

ABOUT WIFI

WI-FI CONNECTION
Before using your Wi-Fi thermostat for the first time, you must configure the Wi-Fi signal and settings through your smartphone or tablet. This will allow communication between your connected devices.

Step 1 Download your APP
For IOS devices, search for “Smart Life” in Apple Store and download it. Alternatively, scan the relevant QR code here(Fig 1-2). For Android devices, search for “Smart Life” in Google Play and download it. Alternatively, scan the relevant QR code

Step 2 Register your account
Open “Smart Life”, you will get a piece of notification(Fig 2-1). Click Allow to go into your page of the register (Fig 2-2). Press register and enter your phone no. or email then you can get a verification code. Input your password and confirm to complete your registration.If you have an account, please log in.

Step 3 Connect your Wi-Fi signal

On your thermostat
With power off, press and hold the V arrow for eight (8) seconds. The backlight will be on and the icon § will flash one time per sec

Then, go back to the home page of your app

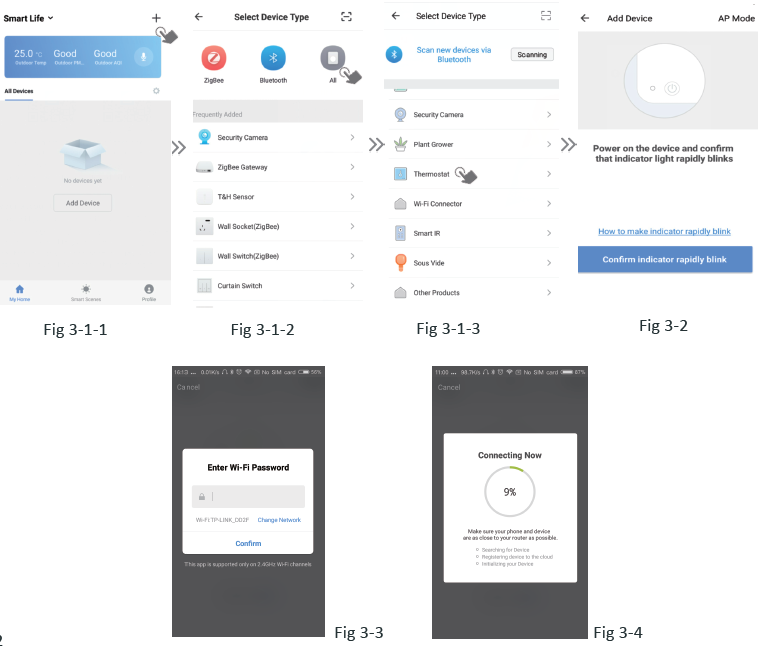

Press the + on the upper right corner of the page (see Fig 3-1-1) to add your device. Click Confirm indicator rapidly blink then select your network and back to your app to enter the password of your wireless router and confirm. The app will connect automatically. This may typically take up to 5~90 seconds to complete. Your room name could be edited when the device is connected

This is EZ mode which provides fast network connection between your app and your device. If your router doesn’t support it or your wifi signal is weak or you can not connect by EZ mode, press the AP Mode on the upper right corner in Fig 3-2.

If you have connected your thermostat successfully, please ignore the AP setting as below.

On your thermostat

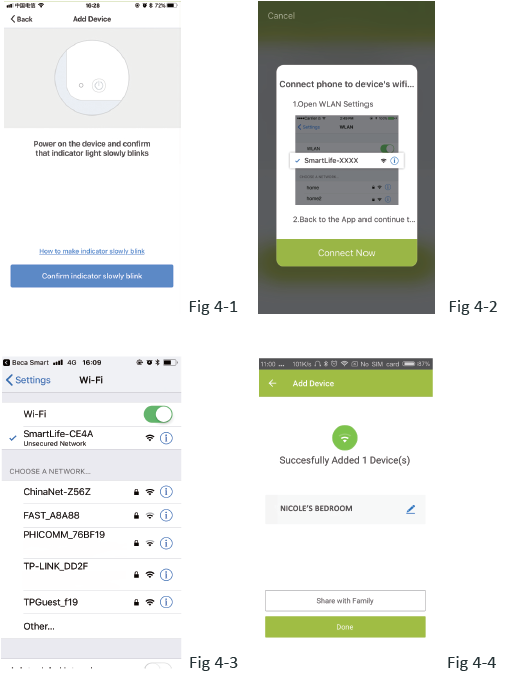

With power off, press and hold the arrow for eight (8) seconds. The backlight will be on and the icon will flash one time per sec Press and hold the arrow for eight (8) seconds again. The icon will flash one time every (3) seconds.

Then, go back to the home page of your app
Click Confirm indicator slowly blink then select your network and back to your app to enter the password of your wireless router (Fig 3-3) and confirm. The app will go into the page in Fig 4-2.

Press Connect now to select the wifi signal Smartlife-CE4A of your thermostat
Go back to your app and click Connect now then the app will connect automatically
This may typically take up to 5~90 seconds to complete.
Your room name could be edited when the device is connected

PROGRAMMING YOUR THERMOSTAT
When your room is established successfully, it will display on the heating-cooling home screen The round bution is to turn on/off your room. Click the line into beginning programming your thermostat.

Power on/off button. When the screen is bright, it is powered on; when the screen is dark, it is powered off.
Mode button. In this mode you can set cooling, heating and ventilation. is cooling, is heating and is ventilation.
Fan Speed button. Press this button to select auto, low, med, and high speed. is auto speed, is low speed, is med speed, and is high speed.
Manual button. In this mode, your heating can be set manually (i.e. (i.e. NOT using the pre-programmed settings)
Program button. When this button shows, your thermostat is in program mode and will follow any pre-set heating schedule.
When in Manual mode, press the button to select mode and vice-versa.
Economy button In this mode, the temperature will be kept at 26 degrees. This temperature cannot be changed or adjusted
Lock/Unlock button. If the button is green, the screen is “locked”. If the button is grey the screen is “Unlocked” of the page. After a few seconds, the current room temperature will show.

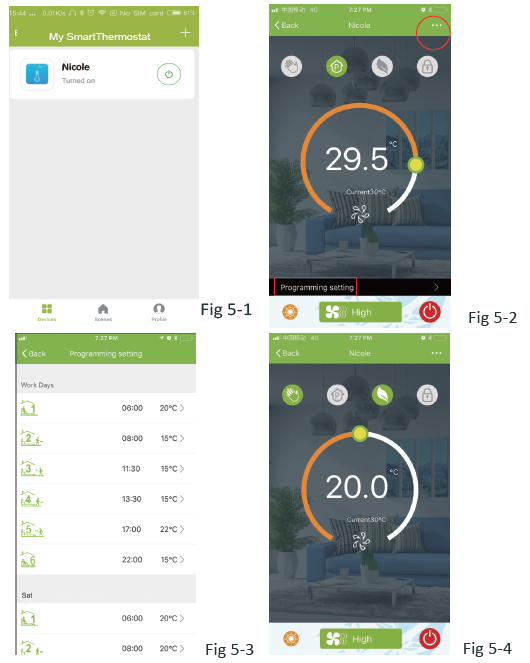

When in Program mode, click on the schedule setting (at the bottom of the page) to be taken to the schedule page where you can simply click on the working days (Mon-Fri) and then the time Temp. to adjust to your prefered schedule.
You can set 6 periods – time and temp.
Repeat the above after clicking on the Weekend (Sat-Sun) settings at the top of the page
Once your schedule has been set, click on SAVE and the app will send the programming to your thermostat and confirm the schedule has been saved

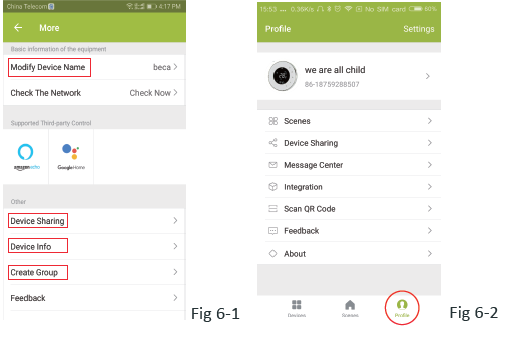

How to create a group?
Press the menu button in the red circle then click Create Group. Select all the rooms you want and confirm. The one who create this group can control all the rooms at the same time.

Note
Except create the group, in this menu page, you can also modify your\ device name, share your device, get information of your device.

How to share your device with your family member?

Way 1: Mentioned in the above.
Way 2: Click your Profile at the right bottom of your main page
Select Device Sharing then add the account you want to share.
You can see the sharing account you have sent and the device you have shared in this sharing page.
You don’t need to do anything if you are the one shared.
You can add as many as rooms you want.

How to connect your device to Amazon Echo or Google Home?
In your profile, click Integration into the using page. Press Use Now > for your Amazon Echo or Google Home or mall Genie or IFTTT then you can see the operation steps.

What is your Smart Scene and How to use it?
Customize your own personal scenes to suit your needs. For example, set your home to automatically turn on the thermostat on when you are back home .Press + button into the setting.

Step 1: You can set a condition for the Task like a Temperature below 20 degrees, then click Save. (Condition:Temp., Humidity, Wether, PM2.5, Air Quality Sunrise/Sunset,Device)
Step 2: Add a task. Press to Select Device (Power, Set Temp, Lock Mode) to act, then Save.If you want to delete the scene, you can press Delete at the end.

NOTE: The room sound could be turned on/off in PROFILE-SETTING-

SOUND. The sound is matched with the default of your system

SIMPLE EXCEPTION HANDLING

No.	Phenomenons	Handling
1	Power is on but without display.	* Check if the terminals between LCD panel and Power Unit Box is loosen.
2	Without output but display works.	* Use a new LCD panel or new Power Unit Box to replace the old one.
3	Room Temp. Is a little different from the actual.	* Do temperature calibration in item 1 of high senior options

SERVICE

Your thermostat carries an 24 months warranty from date of purchase. Service outwith the warranty period may incur a charge. For more detail please contact with us directly.
