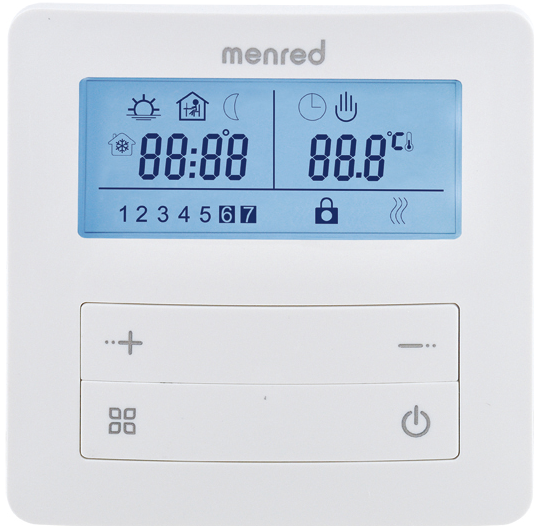

Menred RT5 Programmable Digital Thermostat
4 Time Periods
First time period:
- get up in the morning
Second time period:
- Go out in the morning
Third time period:
- Back home in the afternoon
Fourth time period:
- Sleep time
Window open function
When the thermostat detects the temperature drops Y℃ within X minutes, it will enter into window open mode and continue to work Z minutes. (The values of X, Y, Z can be set)
Preheat function
- Operate under time period mode
- Turn on the heating before reaching
- the next time period
- Reach the next set temperature
- in advance
& Press buttons for 5S Lock or unlock
TIMER
- Weekly programmable/4 time periods available to set the required temperature
- 5G Frequency; Connect WIFI via Bluetooth

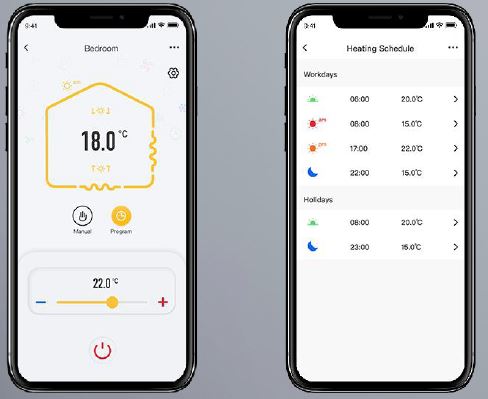

- Mobile phone APP remote control Able to upgrade online

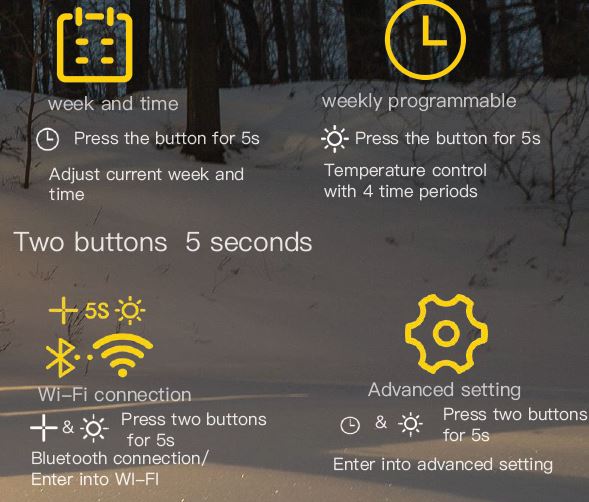

5 seconds
One button / Two buttons 5 seconds

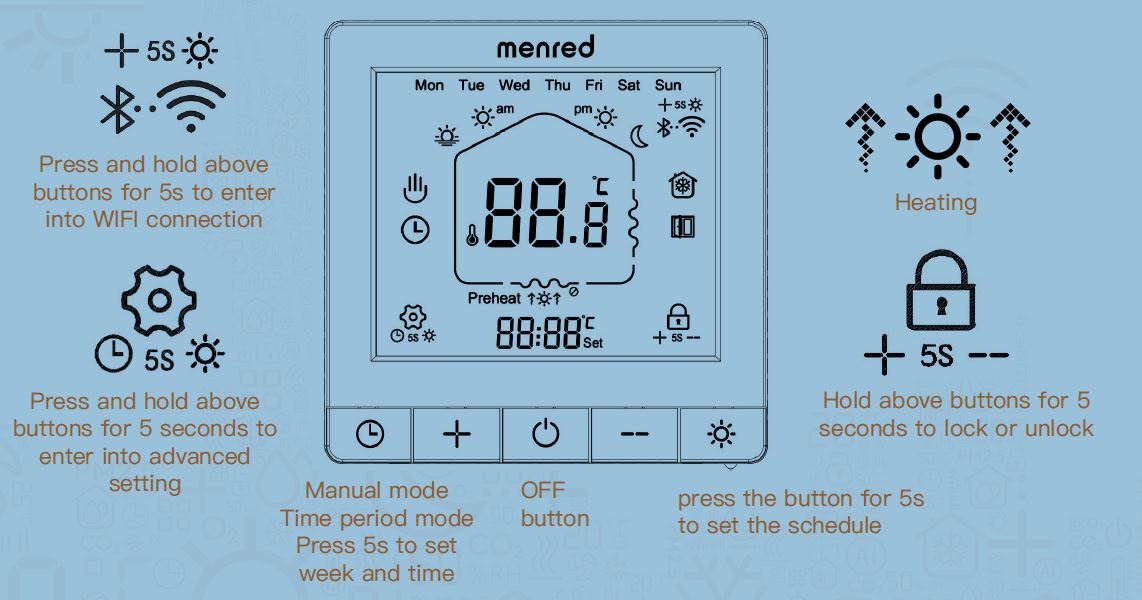

DISPLAY
Selection table
| Model | Load | Description |
| RT51.13 | 3A | Water floor heating |
|
RT51.23i |
3A |
Water floor heating + potential-free output + Wi-Fi |
| RT51.36t | 16A | Electric floor heating + floor sensor |
| RT51.36i | 16A | Electric floor heating +floor sensor + Wi-Fi |
Technical data
- Working voltage: AC220V 50Hz; Rated power: ＜1.5W
- Signal terminal: 0.75mm2 lead
- Wiring terminal: one terminal can be connected to
- 2*1.5mm2 or 1*2.5mm2 wire at most
- Measured range:-9.5~99.5℃; Protection class:IP20
- Ambient temperature: -10~55℃

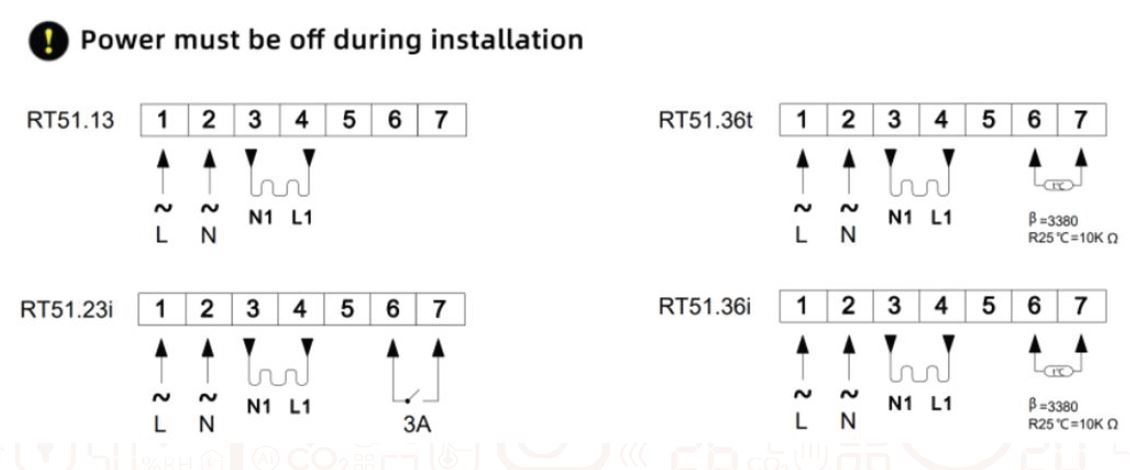

Wiring method
REFERENCE:
