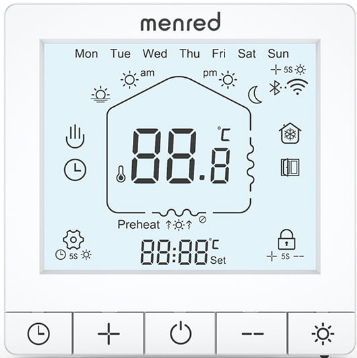

Menred E91 Series Touch Screen Room Thermostat
Introduction
Weekly circulation digital programming thermostat with LCD touch screen has 6 events every day. Manual mode and program mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuators used in hydronic floor heating.
Technical data
- Voltage:220V/230V
- Power consumption:2W
- Setting range:5～90℃(can adjust to 35-90℃)
- Limitation setting:5…60℃ (Factory setting:35℃)
- Switch differential:0.5-10℃ adjustable factory setting
- Ambient temperature:-5～50℃
- Protective housing: IP20
- Housing material: Anti-flammable PC

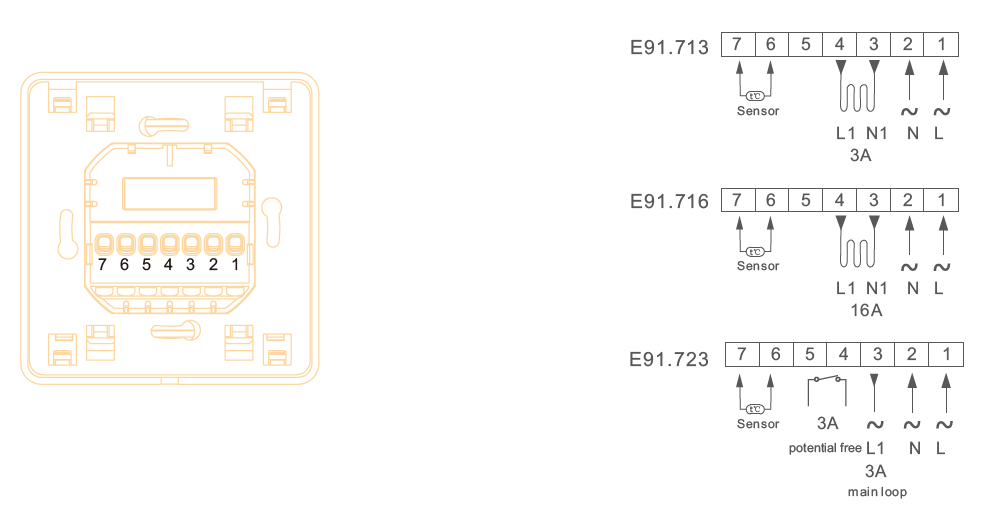

Wiring diagram

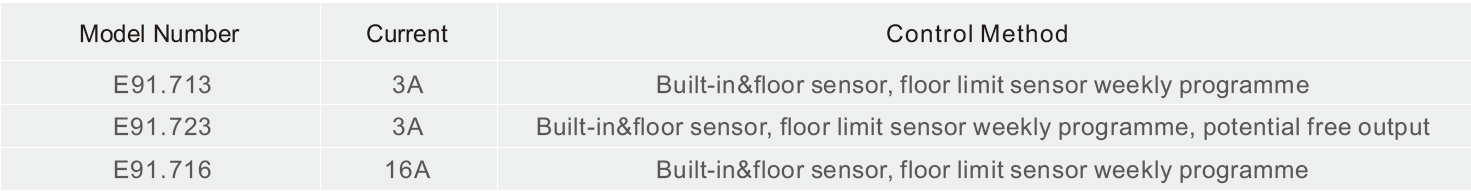

Selection table
