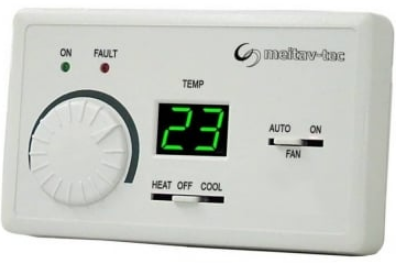

Meitay-tec TED-220-HC11-3S Non-Programmable Thermostat
INTRODUCTION
Wall mount, 220VAC thermostat, with temperature display suitable, for fan coil applications and Air Conditions with H/C configurations (no Heat Pump). The TED-220-HC11-3S thermostat is suitable for commercial or residential applications to control a large variety of HVAC systems, including fan coils. This mechanical thermostat offers Cool and Heat outputs as well as 3 fan speeds, making the TED220-HC11-3S the perfect solution for basic and simple climate control.
Features
- Wall mount, 220VAC Main supply
- 2 Outputs for Cool and Heat
- 3 Fan Speeds
- External Temperature Sensor – option
- Energy saving – cost efficient, Environmental Friendly logic
- Large, easy to read LCD display
- Display for ambient temperature and set point

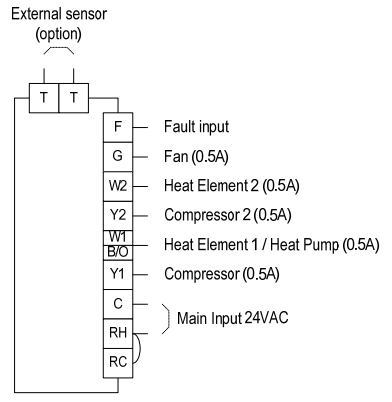

Wiring Diagram
REFERENCE:
DOWNLOAD MANUALS:
Meitay-tec TED-220-HC11-3S Non-Programmable Thermostat Product Specification Guide
Meitay-tec TED-220-HC11-3S Non-Programmable Thermostat Product Specification Guide
