Meitay-tec TED-220-C1-3S Non-Programmable Thermostat
INTRODUCTION
Flush Mount, 220VAC thermostat with Heat and Cool outputs, 3 fan speeds and IR option The FMH-220-HC11-3S-IR is a fully featured, flushmount thermostat suitable for commercial or residential applications to control a large variety of HVAC systems. This easy-to-operate thermostat has one output for Cool and one output for Heat Element (On/Off), 3 fan speeds and IR option. The FMH-220-HC11-3S-IR is a smart-looking thermostat with a soft aesthetic shape and a large, easy-to-read LCD display
Features
- Flush mount, 230VAC thermostat
- separate outputs for Cool and Heat
- Fan Speeds
- Remote Control – option
- Temperature offset – adjustable
- Daily, digital Timer from RC – optimal when you are asleep or awaY
- Energy saving – cost-efficient, environmental friendly thermostat 3 minutes compressor delay (to protect the compressor)
- Auto fan – selectable
- Auto speed – selectable
- Type of heater (electric heater or oil heater) – selectable

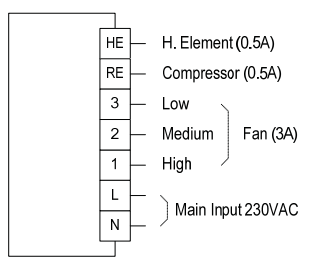

Wiring diagram
