Meitay-tec ETN24-SUPER-3S-FP-PROG Programmable Thermostat

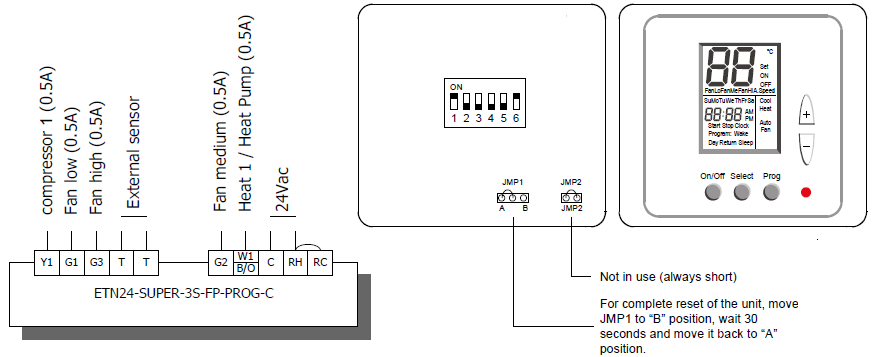

WIRING
DIP switch configuration
|
Switch |
Internal / External sensor | Heat-Cool / Heat Pump | Heater type (HC only) | Heat Pump conf. (HP only) | 3 Minutes compressor delay | |||||
| Internal* | External | HC* | HP | Electric heat* | Oil/Gas heat | HP in cool* | HP in heat | With delay* | Without delay | |
| 1 | ON* | OFF | x | x | x | x | x | x | x | x |
| 2 | x | x | OFF* | ON | x | x | x | x | x | x |
| 3 | x | x | x | x | OFF* | ON | OFF* | ON | x | x |
| 4 | x | x | x | x | x | x | x | x | OFF* | ON |
| 5 | OFF* | ON | x | x | x | x | x | x | x | x |
| 6 | ON* | OFF | x | x | x | x | x | x | x | x |

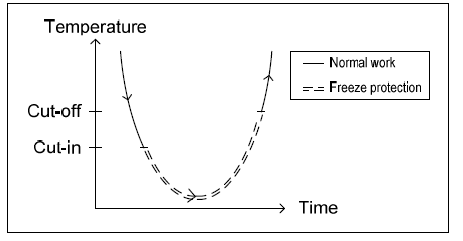

Freeze Protection
When the temperature drops below the freeze protection cut-in temperature*, the thermostat will turn on the Heat and Fan outputs in order to protect the system from freezing. This function will be activated when the thermostat is either in On or Off position. The display will alternate between “AL” and the room temperature. The thermostat will return to normal mode when the temperature rises above the freeze protection cut-off temperature*. *adjustable – refer to the technician settings section of the operating manual
Meitay-tec
- Tel: +972-3-9626462
- Fax: +972-3-9626620
- www.meitavtec.com
- [email protected]
