Meitay-tec ETN24-SUPER-3S-FP-PROG Programmable Thermostat

Meitay-tec ETN24-SUPER-3S-FP-PROG Programmable Thermostat-PRODUCT

INTRODUCTION

The ETN-24-Super-Prog-7 Days-US is a stylish thermostat that is well-suited for commercial and residential applications. It can control a large variety of HVAC systems with either Heat/cooling or Heat Pump configurations and offers a selectable number of heating and cooling stages. Its 7-Day program, with 1 period (Set Cool/Set Heat) per day, is easy to use and can provide 24-hour comfort as well as energy savings. Overall, the ETN-24-Super-Prog-7 Days-US is an attractive, wall-mount thermostat with a large and easy-to-read display.

Features

  • Wall-mount, 24VAC thermostat
  • DIP switch selectable configurations:
    • Heat/Cool or Heat Pump system
    • Electric or Oil/Gas heat system
    • Heat Pump in Cool or Heat
  • 7-day programmable – 1 period per day, each with Set Heat and Set Cool
  • Separate Cooling & Heating set points
  • Emergency Heat available in Heat Pump mode
  • °C scale, 24 hr clock
  • Filter counter in hours- range: 0-900 (adjustable)
  • Offset for temp. reading adjustment – ±6°C
  • Set point limits for Cool & Heat (5…30°C)
  • External Temperature Sensor- option
  • Lock – Unlock thermostat buttons
  • Voltage-free, normally-open fault input. Will show signal on the thermostat when active
  • 3 minutes compressor delay – optional (DIP switch selectable)

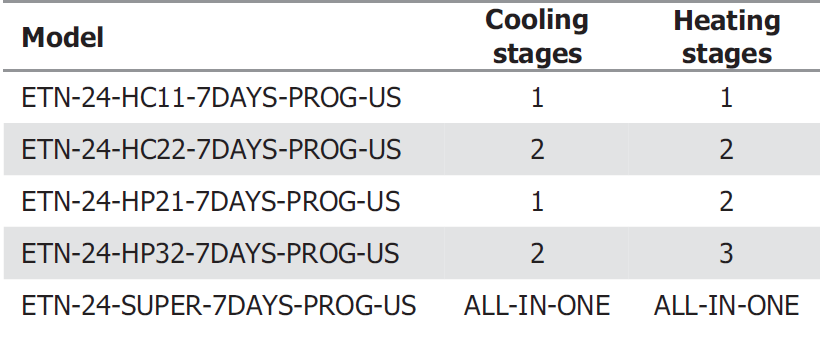

Models

Meitay-tec ETN24-SUPER-3S-FP-PROG Programmable Thermostat 1

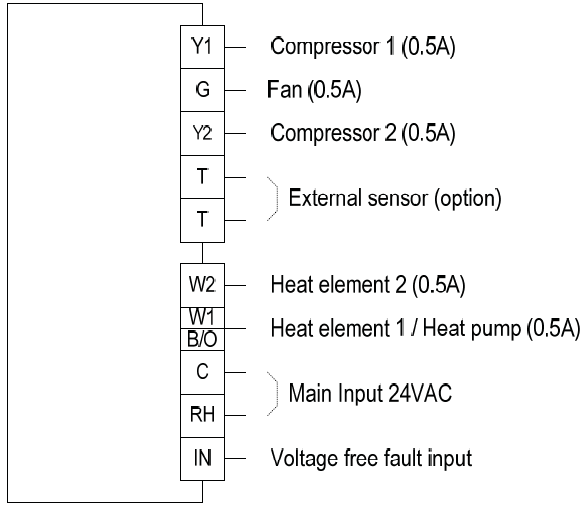

Wiring diagram

Meitay-tec ETN24-SUPER-3S-FP-PROG Programmable Thermostat 2
