Meitay-tec ETN-24-HC11-3S Programmable Thermostat Product Specification Guide

Meitay-tec logo

Meitay-tec ETN-24-HC11-3S Programmable Thermostat

Meitay-tec- ETN-24-HC11-3S- Programmable- Thermostat -pro

General

The ETN-24-HC11-3S-Prog-US is a stylish thermostat that is well-suited for commercial and residential applications. It can control either Heat/Cool systems or Fan Coils (2-pipe or 4-pipe systems) and offers 3 fan speeds. Its 5-1-1 program, with 4 periods (Set Cool/Set Heat) per day is easy to use and can provide 24-hour comfort as well as energy savings. Overall, the ETN-24-HC11-3S-Prog-US is an attractive, surface-mount thermostat with a large and easy to read display.

Features

  • Surface mount – 24Vac thermostat
  • 1 Heat output and 1 Cool output
  • Suitable for Heat/Cool systems or Fan Coils (2-pipe or 4-pipe systems)
  • 5-1-1programmable; 4 periods per day, each with Set Heat and Set Cool
  • 3 fan speeds
  • Offset – for temperature reading adjustment
  • Set point limits- password protected
  • External sensor- option
  • Lock – Unlock buttons function
  • °C or °F scale (must be specified at time of order), Am/Pm clock

DIAGRAM

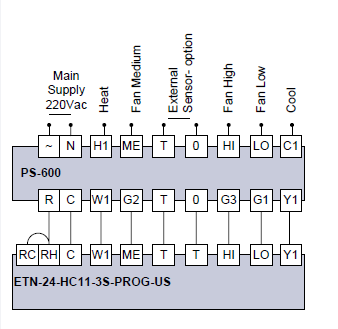

Electrical Diagram – outputs 220Vac

Meitay-tec- ETN-24-HC11-3S- Programmable- Thermostat  1

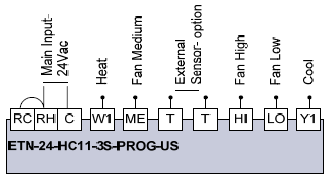

Electrical Diagram – outputs 24Vac

Meitay-tec- ETN-24-HC11-3S- Programmable- Thermostat  2

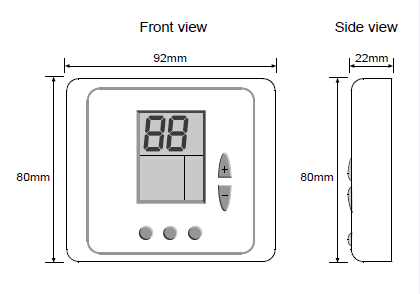

Dimensions

Meitay-tec- ETN-24-HC11-3S- Programmable- Thermostat  3

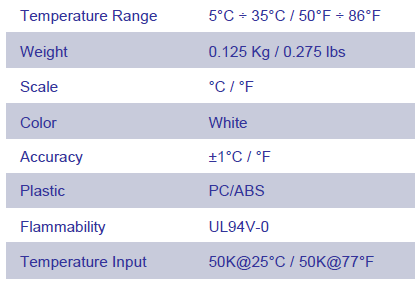

Specifications

Meitay-tec- ETN-24-HC11-3S- Programmable- Thermostat  4

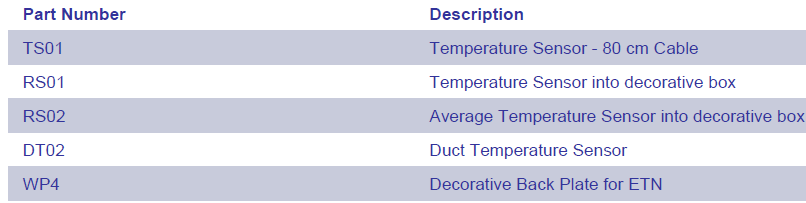

Accessories

Meitay-tec- ETN-24-HC11-3S- Programmable- Thermostat  5
