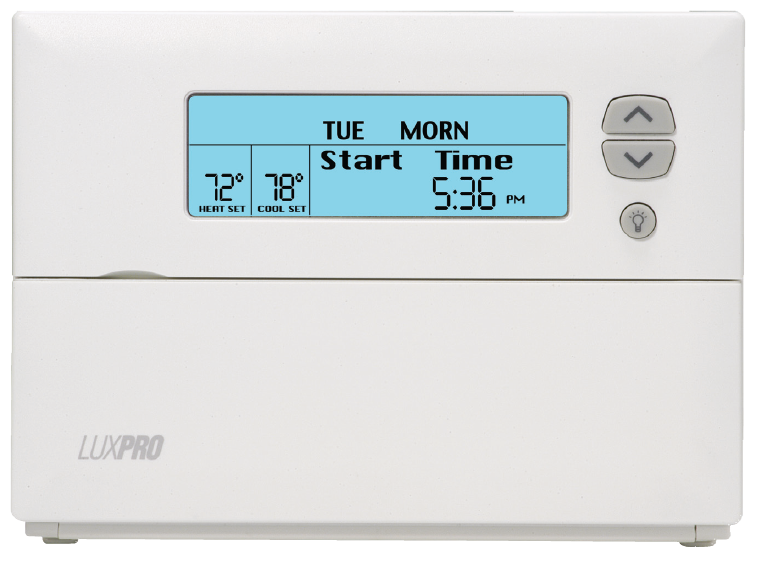

LUXPRO PSP722E Programmable Thermostat
Universally compatible Everything’Stat® offers programmable control of single or multistage heating and cooling systems. Temperature control adjustable.
5/2-Day Programmable
Product Highlights
- Universal Compatibility Everything’Stat®
- Controls up to 2 Stages of Heat and 2 Stages of Cooling Plus Auxiliary and Emergency Heat
- Auto-Changeover Between Heat and Cool
- Auxiliary and Emergency Heat Indicators
Product Features
- EL (Electro Luminescent) Backlight
- IAQ Independently Programmable Fan
- 7 Day Programming
- Default Temperature Program
- 4 Periods Per Day
- Temporary Temperature Override
- Manual Hold
- Adjustable Vacation Hold (1-30 Days)
- Optional Smart Recovery
- Programmable Air Filter Timer with Filter Change Indicator
- Energy Usage Monitor
- Fahrenheit or Celsius Temperature Display
- 12/24 Hour Clock
- Easy Programming with LUX Speed Dial®
- Advanced Copy Function for Fast Easy Programming
- Nonvolatile Memory for All Temperature Programs and Settings
- Daylight Savings Time (DST) Button
- Multimode Keyboard Lockout with
- User Programmable 3 Digit Lock Code
- Programmable Max. Heat Temperature Limit
- Programmable Min. Cool Temperature Limit
- Defeatable Audible Button Response
- Menu Driven Setup Done from the Front Panel
- User Temperature Calibration Adjustment
- Dual Power Capable (System and/or Battery)
- Multi-Stage Adjustable Temperature
- Differential/Cycle Rate
- Programmable Length Minimum Run/Off Time
- Programmable Auto-Changeover Dead-Band
- Programmable Fan-On Delay Setting
- Programmable Fan-Off (Overrun) Delay Setting
Installation
Compatible With
- Most 24v Gas, Oil, Electric Heating, and Air Conditioning Systems
- Multi-stage Heat Pumps
- 2-Wire Hydronic Systems
- Hydronic Air Handlers
- Millivolt Systems
Not Compatible With
- 3 Wire Hydronic Systems
- Line Voltage Systems (Without Transformer)
SPECIFICATIONS

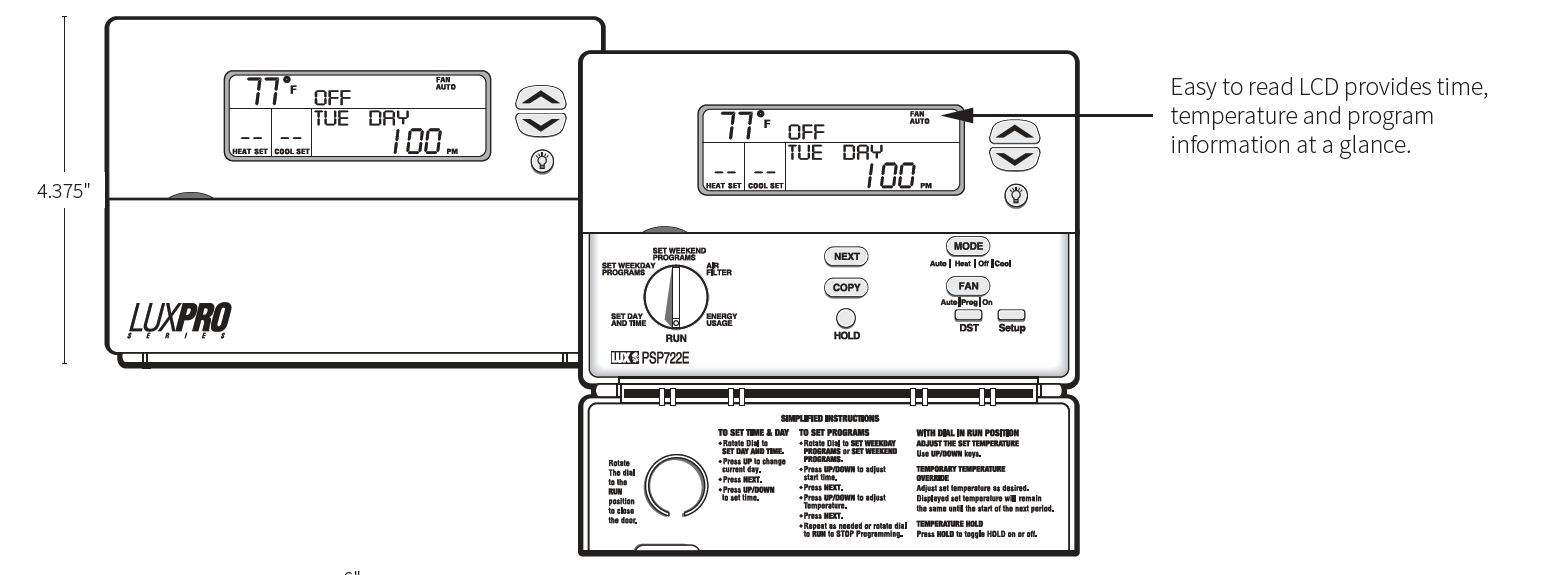

| Dimensions | 6″ (150mm) wide x 43⁄8″ (110mm) tall x 11⁄4″ (30mm) deep |
| Heat/Cool Terminals | RH, RC, O, B, W1, W2, Y1, Y2, G, E, C |
| Electrical Ratings | 11⁄2 AMPS at each terminal, 2 AMPS total 24 VAC. System or Battery Powered: 2 “AA” Batteries (optional). |
| Temperature Control Range | ■ Temp control 45° F to 90° F (7° to 32° C)
■ Display range: 23° F to 99° (-5° C to 37° C) ■ Temp differential: adjustable from .25° F to 2.25° F accuracy +- 1° over a range of 45° F to 90° F. |
| Environmental Limits | ■ Moisture and Dust: meets IP20
■ Operating Humidity: 20% to 90% (non-condensing) ■ Operating temperature: 32°F to 95°F (0°C to 35°C) ■ Storage temperature: -4°F to 130°F (-20°C to 54°C) ■ Electrical Immunity: meets relevant CE specifications |
| Compatibile With | ■ Most 24v Gas, Oil, Electric Heating and Air Conditioning Systems
■ Multi-stage Heat Pumps ■ 2-Wire Hydronic Systems ■ Hydronic Air Handlers ■ Millivolt Systems |
| Not Compatibile With | ■ 3 Wire Hydronic Systems
■ Line Voltage Systems (Without Transformer) |
| Packaging | ■ Master Carton: Master Carton: 10 units
■ UPC: |
