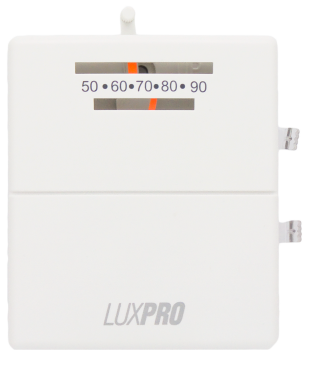

LuxPRO PSM40SA Heating/Cooling Thermostat
Heating/Cooling Mechanical
Product Highlights
- Easy to use
- Mercury-free
- 5-year warranty
Product Features
- Clean, attractive design
- Snap action mechanism
- Value priced
- Adjustable heat anticipator
- Contains no mercury
Electrical Ratings
- 24 VAC (30 VAC maximum)
Anticipator Rating
- 0.15 A to 1.2 A
Temperature Control Range
- 45ºF to 90ºF (7º to 32º). Accuracy: ±1ºF over a range of 50ºF to 95ºF
Environmental Limits
- Operating humidity: 20% to 90% non-condensing
- Operating temperature: +32ºF to +95ºF (+0ºC to +35ºC)
- Storage temperature: -4ºF to +130ºF (-20ºC to +54ºC)
- Electrical immunity: meets relevant CE specifications
Installation
Compatible With
- Most 24V gas, oil, electric heating systems, and air conditioning systems
- wire hydronic systems
- Millivolt systems
- Hydronic air handlers
- Single-stage heat pumps
Not Compatible With
- 3-wire hydronic systems
- Multi-stage heat pumps
- 120V/240V systems
- Compressor without time delays
Physical Dimensions (When Mounted)
- Width = 3″ (77 mm)
- Height = 3.50″ (90 mm)
- Depth = 1.375″ (35 mm)
- Optional wall plate: Part no. MTO84S, 4.75″ (121 mm) X 4.75″ (121 mm)
Packaging
- Packaged in the box – carton quantity = 50
- Carton specifications: 16.50″ long X 14.75″ wide X 12.375″ deep. Carton weight: 17 lbs.
UPC Code
- 0 21079 98040 6
