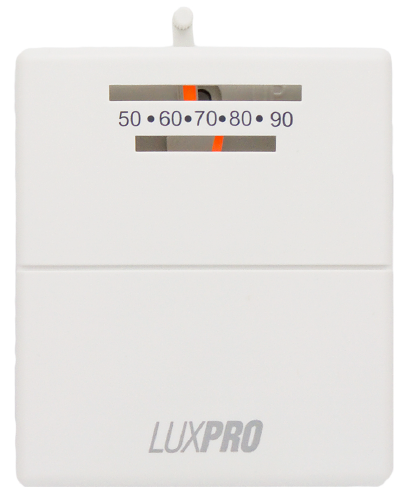

LUXPRO PSM30SA THERMOSTAT
Heat-Only Mechanical
Product Highlights
- Easy to use
- Mercury-free
- 5-year warranty
Product Features
- Clean, attractive design
- Snap action mechanism
- Value priced
- Adjustable heat anticipator
- Contains no mercury
Installation
- Most 24V gas, oil, and electric heating systems
- 2 wire hydronic systems
- Millivolt systems
- Hydronic air handlers
- Single-stage heat pumps
- 3-wire hydronic systems
- Multi-stage heat pumps
- 120V/240V systems
Electrical Ratings
- 24 VAC (30 VAC maximum)
Anticipator Rating
- 0.15 A to 1.2 A
Temperature Control Range
- 45ºF to 90ºF (7º to 32º). Accuracy: ±1ºF over a range of 50ºF to 95ºF
Environmental Limits
Moisture and dust: meets IP20
- Operating humidity: 20% to 90% non-condensing
- Operating temperature: +32ºF to +95ºF (+0ºC to +35ºC)
- Storage temperature: -4ºF to +130ºF (-20ºC to +54ºC)
- Electrical immunity: meets relevant CE specifications
Physical Dimensions (When Mounted)
- Width = 3″ (77 mm)
- Height = 3.50″ (90 mm)
- Depth = 1.25″ (32 mm)
- Optional wall plate: Part no. MTO84S, 4.75″ (121 mm) X 4.75″ (121 mm)
Packaging
- Packaged in the box – carton quantity = 50
- Carton specifications: 16.50″ long X 14.75″ wide X 12.375″ deep. Carton weight: 17 lbs.
UPC Code
- 021079 98030 7
4747 South Broad Street I Building 101 – Suite 330 I Philadelphia, PA 19112 I P: 856.234.7905 I F: 856.234.7825 LuxProProducts.com
