LUXPRO PSD011B Programmable Thermostat
Product Highlights
- Digital thermostat with a large easy-to-read display with backlight.
- Temperature control set from factory at a fixed value of +/- 0.5° F/C.
- Battery Powered Only version.
Product Features
- 1 Stage Heat / 1 Stage Cool
- Battery Powered Only
- Large Illuminated Digital Display
- Attractive Slim Design
- Soft Touch Buttons
- Default Set Temps: 65F Heat / 78F Cool
- Fahrenheit/Celsius Switchable
- Adjustable Temperature Stops
- 5 Minute Compressor Protection
- Easy Installation
- Optional Wall Plate Available
Installation
Compatible With
- Most 24V Heating and A / C Systems
- 1 Stage Heat / 1 Stage Cool: Gas, Oil, Electric, or Single Stage Heat Pump Systems
- 2 Wire Heat Only Hydronic Systems (Hot Water Baseboard & Radiator)
- Millivolt Systems (Wall Heaters / Furnaces & Gas Fireplaces)
Not Compatible With
- Multi-stage Heat Pumps
- 3 Wire Hydronic Systems
- Line Voltage Systems (120 / 240 VAC)
SPECIFICATIONS

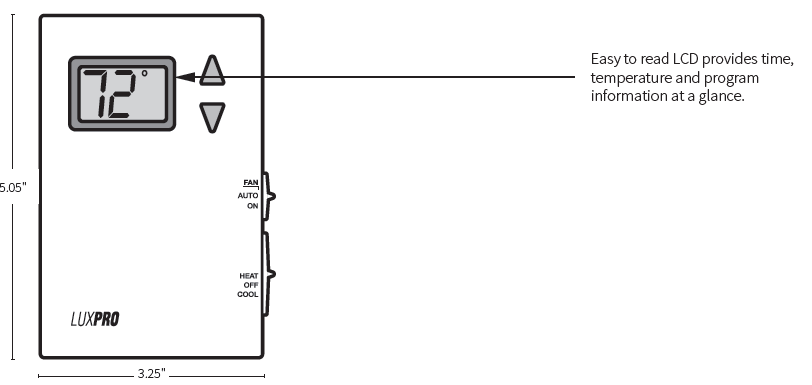

| Dimensions | 3.25″ (83mm) wide x 5.05″ (128mm) tall x 1.10″ (28mm) deep Wall plate: 4.50″ (114 mm) wide x 5.45″ (138 mm) tall |
| Heat/Cool Terminals | RH, RC, W1, Y1, G, O/B |
| Electrical Ratings | 11⁄2 AMPS at each terminal, 3 AMPS total 24 VAC Battery Powered Only: 2 “AA” Batteries |
| Temperature Control Range | ■ Temp control 45° F to 90° F (7° to 32° C)
accuracy +- 1° over a range of 45° F to 90° F. |
| Environmental Limits | ■ Moisture and Dust: meets IP20
■ Operating Humidity: 20% to 90% (non-condensing) ■ Operating Temperature: +14°F to +122°F (-10°C to +50°C). ■ Storage Temperature: -4°F to +140°F (-20°C to +60°C). ■ Electrical Immunity: meets relevant CE specifications. |
| Compatibile With | ■ 24V Heating and A / C Systems
■ 1 Stage Heat / 1 Stage Cool: Gas, Oil, Electric, or Single Stage Heat Pump Systems ■ 2 Wire Heat Only Hydronic Systems (Hot Water Baseboard & Radiator) ■ Millivolt Systems (Wall Heaters / Furnaces & Gas Fireplaces) |
| Not Compatibile With | ■ Multi-stage Heat Pumps
■ 3 Wire Hydronic Systems ■ Line Voltage Systems (120 / 240 VAC) |
| Packaging | ■ Master Carton: Master Carton: 10 units
■ UPC: |
WARNING: Use Energizer® or DURACELL® Alkaline Batteries Only.
Energizer® is a registered trademark of Eveready Battery Company, Inc. – DURACELL® is a registered trademark of The Gillette Company, Inc
4747 South Broad Street I Building 101 – Suite 330 I Philadelphia,
PA 19112 I P: 856.234.7905 I F: 856.234.7825
LuxProProducts.com
