LUXPRO P711V Programmable Thermostat
Product Highlights
- All in-one programmable/ non-programmable
- Dual powered
- Adjustable heating and cooling limits
- 5 year warranty
Product Features
- Easy installation
- Program 7-day, 5/2-day, or non-programmable
- Easy-view back light
- Optional wall plate #WP567
- User option: 2 or 4 periods per day
- eypad lock for unauthorized use
- Temporary override and manual hold
- Dual powered (2AA) Alkaline Batteries (included)
- Temporary Compressor protection bypass
- 5/2 minute selectable time delay for equipment protection
- User temperature calibration
- Display option: fahrenheit or celsius temperature
- Adjustable heating and cooling limits
- Adjustable temperature differential/swing
- Vertical mount installation
Installation
Compatible With
- For most 24V heating and A/C systems
- 2-heat/1-cool: gas, oil, or electric systems (Non-heat-pumps)
- 2-wire heat only hydronic systems (hot water baseboard & radiator)
- Millivolt systems (wall heaters/furnaces & gas fireplaces)
Not Compatible With
- Multi-stage heating & AC systems
- Multi-stage heat pumps
- 3-wire hydronic zone valve systems
- 120V/240V line voltage systems (without transformer
SPECIFICATIONS

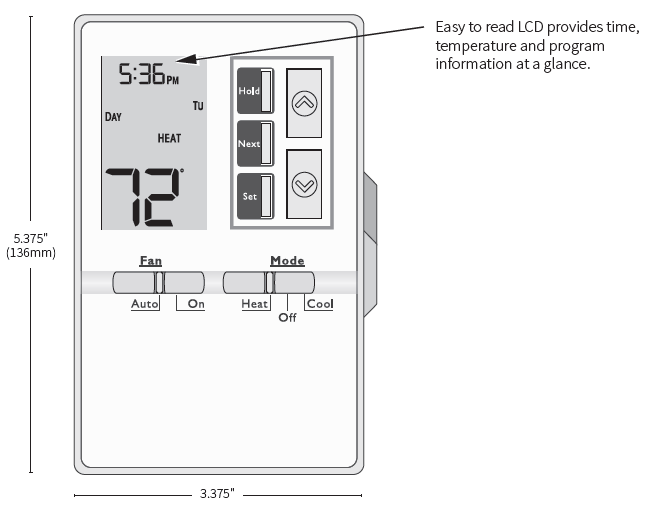

| Dimensions | 5.375″ (136mm) wide x 3.375″ (86mm) tall x 1.25″ (32mm) deep |
| Heat/Cool Terminals | RH, RC, W, Y, G, C, O/B (solid pins for 24v and Millivolt systems) |
| Electrical Ratings | 1.5 Amps per terminal at 24 volts |
| Temperature Control Range | ■ Temp control 45°F to 90°F (7°C to 32°C)
■ Display range: 23°F to 99°F (-5°C to 37°C) ■ Temperature Differential: adjustable from ±0.25°F to ±2.25°F Accuracy ±1°F over a range of 45°F to 90°F. |
| Environmental Limits | ■ Moisture and Dust: meets IP20
■ Operating Humidity: 20% to 90% (non-condensating) ■ Operating temperature: 14°F to 114°F (-10°C to 45°C) ■ Storage temperature: -4°F to 140°F (-20°C to 60°C) ■ Electrical Immunity: meets relevant EMI/EMC specifications |
| Compatible With | ■ For most 24V heating and A/C systems
■ 1-heat/1-cool: gas, oil, electric or single stage heat pump systems ■ 2-wire heat only hydronic systems (hot water baseboard & radiator) ■ Millivolt systems (wall heaters/furnaces & gas fireplaces) |
| Not Compatible With | ■ Multi-stage heating & AC systems
■ Multi-stage heat pumps ■ 3-wire hydronic zone valve systems ■ Line voltage systems (120/240 VAC) |
| Packaging | ■ Master Carton: 10 units
■ UPC: 0 21079 15711 2 |
LUX PRO
- 4747 South Broad Street I Building 101 – Suite 330
- Philadelphia, PA 19112
- P: 856.234.7905
- F: 856.234.7825
- LuxProProducts.com
