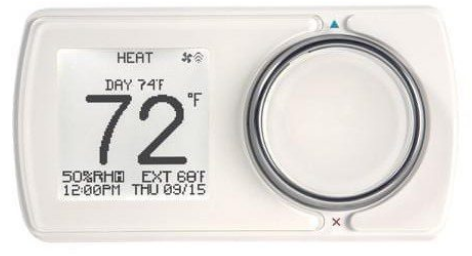

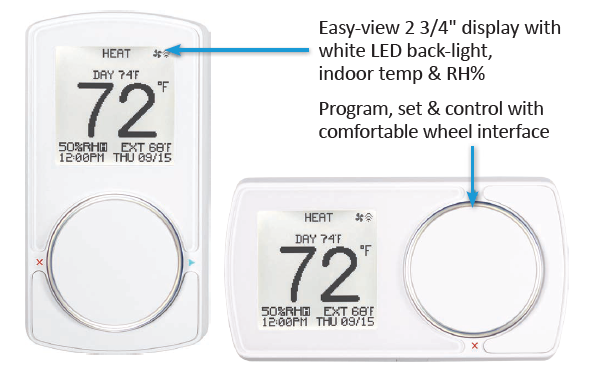

LUXPRO GEOx Smart Thermostat
Smart Features
- Geofencing: Home & Away Aware™
- Smart Scheduling: Utility cost estimated
- Smart tips: For savings & seasonality tips
- Automatic communication with airSMART IAQ monitor (Foobot)
- Reporting: Energy & run time usage
- Apps: iOS & Android
- System run-time monitor System
- Conventional heat & A/C up to 2h/2c
- Heat Pumps: up to 3h/2c Aux/Emergency heat and dual fuel systems with fossil fuel furnace back-up.
- Hydronic heat: when 24V system common (c-wire) is present.
- Power: C wire or LUX Power Bridge (sold separately: sku LPB-WPR-005).
Product
- Color: white with brushed metal finish accent
- Horizontal or vertical mounting
- H/DH dry-contacts for 3rd party equipment
- De-humidification options using A/C condensing unit
- djustable 2nd stage heat and cool offset
- 7-day programmable from unit or via app
- Air filter monitor
- Dual mount -horizontal/vertical
Connectivity
- Radio: WiFi certified 802.11 b/g/n
- Frequency: 2.4 GHz
- Encryption: SHA256RSA
- Platforms: Amazon Alexa enabled devices
Accessories
- Includes wall plate
SPECIFICATIONS MODEL# GEOx
| Dimensions | (horizontal orientation) Height: 3.12″ (79mm) Width: 5.7″ (145mm) Depth: 1.32 (33mm) |
| Heat/Cool Terminals | R, Y1, Y2, G, W1, W2/O/B, C,
U/U (for separate humidifier/de-humidifier) |
| Electrical Ratings | 1.5 Amps per terminal @24Volts |
| Temperature Control Range | Control Range: 45°F to 90°F (72°C to 32°C) Display Range: 32°F to 99°F (0°C to 37°C)
Temp differential: adjustable from ±0.25F to ±2.25F |
| Environmental Limits | Moisture and Dust: Up to IP20
Operating Limits: +14°F to 122°F (+10°C to 50°C) Operating Humidity: 20% to 90% non-condensing Storage Limits: +40°F to +140°F (-20°C to +60°C) |
| WiFi Specifications | 2.4GHz: 802.11 b/g/n SHA256RSA data encryption
Network commissioning through iOS/Android app or WPS Program and system settings stored on the device for set up and function – with or without WiFi |
| Compatible With | For conventional heat & A/C up to 2h/2c. Heat pump universal compatibility up to 3h/2c including AUX/ EMERG heat and duel fuel systems -with fossil fuel furnace back-up. Hydronic heating applications if 24V system common (c-wire) is present. |
| Not Compatible With | 120V/240V line voltage systems. Gas millivolt heaters, gas fireplaces and other 2-wire heat applications. |
| Packaging | Master Carton: 5 Units UPC: 0 21079 16004 4 |
LUX Products Corporation. Philadelphia, PA 19112 USA
REFERENCE:
Download Manual:
LUXPRO GEOx Smart Thermostat Warranty Guide
