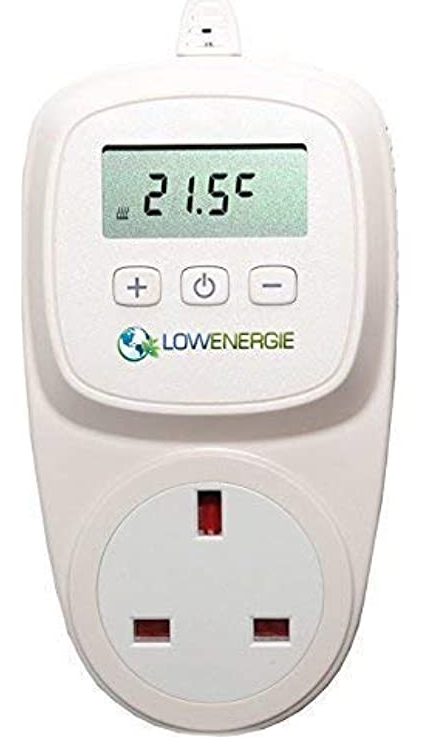

Lowenergie TH-928T Digital Thermostat
Key Features
- Three buttons for easy use.
- Simply adjust your required temperature by using the + and – buttons.
- The display shows the room temperature.
- Temperature display in degrees Celsius.
- Non-programmable.
Operating Instructions
- Plug the heating device into the unit and press the power button.
- The desired temperature can be chosen by using the + and – buttons
- To switch off press the power button.
- Room temperature can be shown by the long pressing of the on/off button under ‘off mode’.
Calibration of the unit
The unit may need calibrating if the temperature shown is higher/lower than the actual room temperature. Calibration is simple
- To do this you need to first ascertain what the correct temp is.
- The example shown below is if the room is 19 degrees and the unit is reading 17 you need to add 2 degrees onto it.
- You will need to amend to your specific needs
To calibrate
- Place in the plug and switch the plug socket on
- Press the + and – together, this will then enter-calibrate mode, press the + button twice (the number will go up by 2)
- Press the power button – it may say 1052
- Press the power button again.
To set the temperature of which you would like it to come on press the + and – as desired. For example, if you set it at 17 degrees the unit will activate at 16.5 degrees and lower and allow heat until 17 degrees is reached.
Technical Data
- Output Voltage: 230V /50HZ
- Switching Capacity: 3000W/ 13A
- Backup storage: EEPROM
- Sensor Mode: Internal Sensor
- Temperature settings: 5°C ~35°C, 0.5°C increments.
- Accuracy: +/- 0.5°C (+/- 1°F).
- Thermostat dimension: 70 mm x 41.5 mm x 140mm.
- Color: White
- IP protection rating: 20
- Certification: CE
Guarantee
This Lowenergie plug-in thermostat is guaranteed for a period of 12 months from the date of purchase. Please retain it for future reference
Lowenergie
- Lowenergie is a registered Trademark
- www.lowenergie.com
- Lowenergie, Warrington, UK
