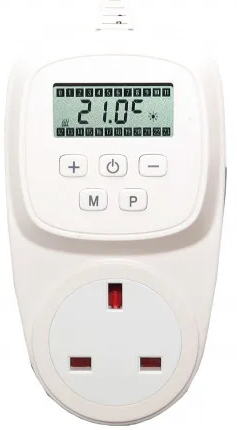

Lowenergie Programmable Plug-in Thermostat

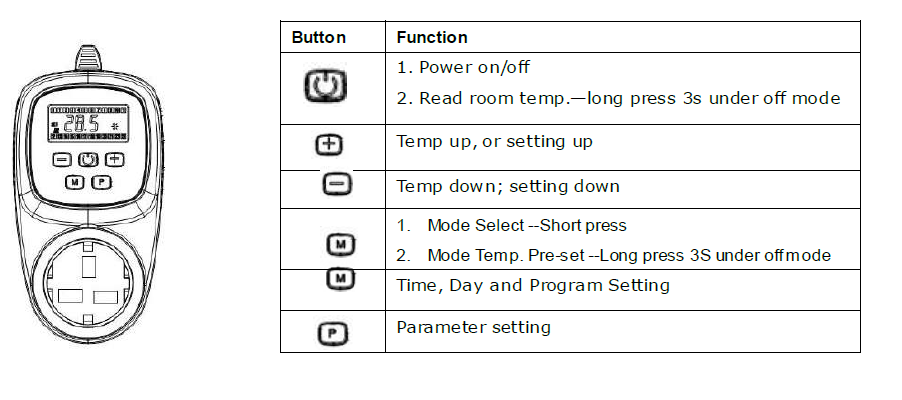

BUTTON FUNCTIONS

This Plug-in thermostat is intended for use with electric heaters.

Keys Features

• Plug in design make it easy to install.
•  Five buttons make it easy to operate.
•  7 days programmable
•  Comfort, Energy-saving, and Holiday Mode Selectable.
•  The display shows the set temperature.
•  Temperature display in degrees Celsius.
•  With EEPROM
•  Frost Protection

Technical Data

• Output Voltage: 230V
• Switching Capacity: 3000W/ 13A
• Backup storage: EEPROM
• Sensor Mode: Internal Sensor
• Temperature settings: 5°C ~ 60°C, 0.5°C increments.
• Accuracy: +/- 0.5°C (+/- 1°F).
• Thermostat dimension: 70 mm x 41.5 mm x 140mm.
• Color: White
• IP protection rating: 20.
• Certification: CE.

Parameter Settings

Under off status, press the “M” button and “+” button at the same time can into the parameter setting. Each press of the “M button can move to the next setting.

Mode Temperature Pre-set.

The Mode temp. Can be set as following steps:

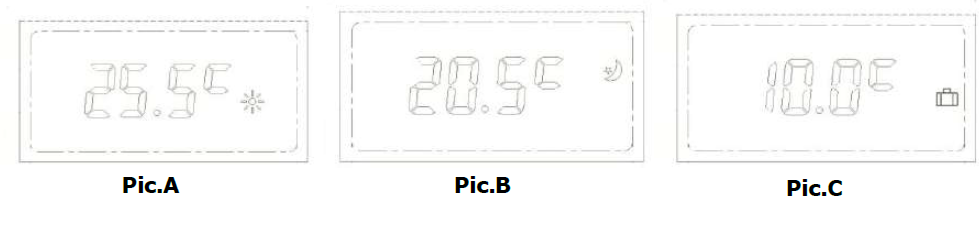

•  Press and hold the M button for around 3 seconds. The COMFORT mode (Pic. A) display..
•  Change the mode temperature with the + and – buttons.
•  Press the M button, and the Energy-saving mode display (Pic. B).
•  Change the mode temperature with the + and – buttons.
•  Press the M button, and the holiday mode display (Pic. C).
•  Change the mode temperature with the + and – buttons.
•  The comfort function is displayed as a symbol (e.g. 25.5°C).
•  The energy-saving function is displayed as a symbol (e. g. 20.5°C).
•  The holiday function is displayed as a symbol (e.g. 10°C).

Day, Time, and PRG. Setting.
The thermostat provides the option to program 23-time settings, irrespective of the day, i.e. a total of 161 switching programs per week. These are shown in the display with a series of figures at the up and bottom of the display.

• You have already set the temperature value beforehand: (see page 2, mode temperature pre-set).
• The comfort function is displayed as a symbol (e.g. 25.5°C).
• The energy-saving function is displayed as a symbol (e.g. 20.5°C)

Set the time, day, and program with the following steps.

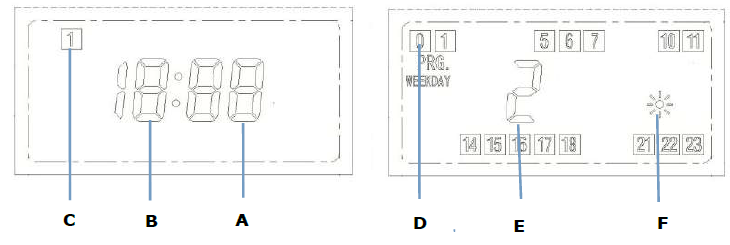

•  Press and hold the P button for around 3 seconds. The minute’s display (A) flashes.
•  Change this value using the + and – buttons.
•  Press the P button. The hour display (B) flashes.
•  Change this value using the +and – buttons.
•  Press the P button. The day display (C) will flash as a number.
•  Change this value using the + and – buttons. Use 1 for Monday, 2 for Tuesday, 3 for Wednesday, 4 for Thursday, 5 for Friday, 6 for Saturday and 7 for Sunday.
•  Press the P button. The switch program (D) and mode icon(F) flash.
•  Set the program using the + and – buttons. Use the M button to change the mode. Comfort Mode( ) and Energy-saving mode( ).
•  Press the P button after making the desired setting for this day, it will automatically skip to the next day, you have the option of skipping to another day by pressing the P button.
•  After all, days of setting, the thermostat will keep the setting and back to the main menu.

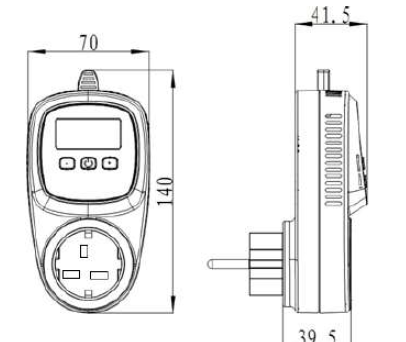

Dimension
