SPECIFICATION
Electrical
Surrounding Conditions
Unit Data
Connectivity
Communications Cabling Specifications (V‐Net)
Standard Features
- 4-1/4″ Backlit LCD
- Clock
- Screensaver
Basic Functions:
- Room temperature display
- Operation – On/Off
- Mode – Auto/Cool/Dry/Heat/Fan Only (for AC unit)
- Ventilation mode (for ventilator unit)
- Occupied cooling and heating temperature setpoints
- Unoccupied cooling and heating setback temperature setpoints
- Fan speed – Auto/Low/Med/High/Power
- Discharge vanes – Auto/Swing/Fixed’
- Controller lock function
- Static pressure installer setting
- Function setting for plasma filter, electric heat, humidifier, elevation grille, ventilation kit, and auxiliary heat option
- Error code display during unit or system malfunction
- Auto restart on power failure
Advanced Functions:
- Time of day scheduling, 5 events per day with control of occ/unocc, on/off, mode, setpoints, and fan speed
- Two setpoint autochangeover
- Minimum difference between setpoints (1-7°F) adjustable deadband
- Setback function
- Time overide function
- Check energy usage display
- Target energy consumption display
- Time limit control
- Hold function
- Setpoint range lock
AWG ‐ American Wire Gage

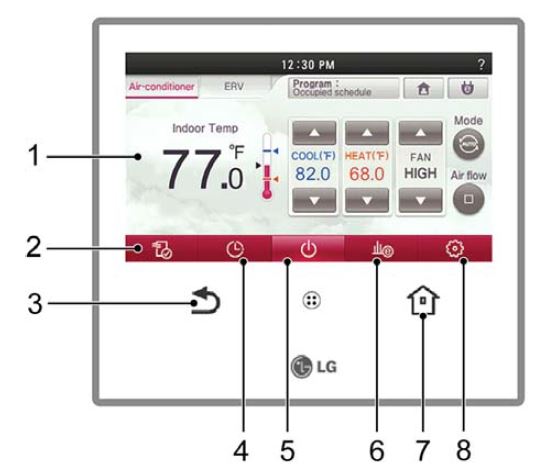

- Operational indication touchscreen
- Sub function button
- Back button
- Schedule button
- On/Off button
- Energy Savings button
- Home button
- Settings button
Notes:
- Available functions/features may differ based on connected system.
- Communication cable can be extended to a maximum of 164 feet by using the Wired
- Remote Group Control Cable Assembly (PZCWRCG3) or Wired Remote Extension
- Cable (PZWRC1), maximum of 4.
- Must follow installation instructions in the applicable LG installation manual
Optional Accessories (sold separately):
- PZCWRC1 ‐ 33‐foot Extension Cable Assembly
- PZCWRCG3 ‐ Group Control Cable Kit
- PQWRHQOFDB ‐ Wireless Remote Controller
