Legrand 076723 Modular Thermostat User Manual

legrand logo

Legrand 076723 Modular Thermostat

Legrand- 076723- Modular- Thermostat-pro

USE

Temperature sensor for modular thermostat (Cat. No. 038 40)

RANGELegrand- 076723- Modular- Thermostat-pro - 1

PREPARATIONLegrand- 076723- Modular- Thermostat-pro - 2

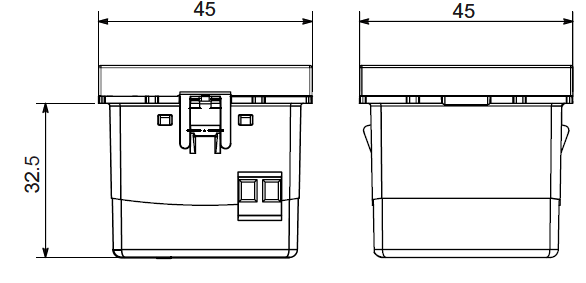

OVERALL DIMENSIONS

Legrand- 076723- Modular- Thermostat-pro - 3

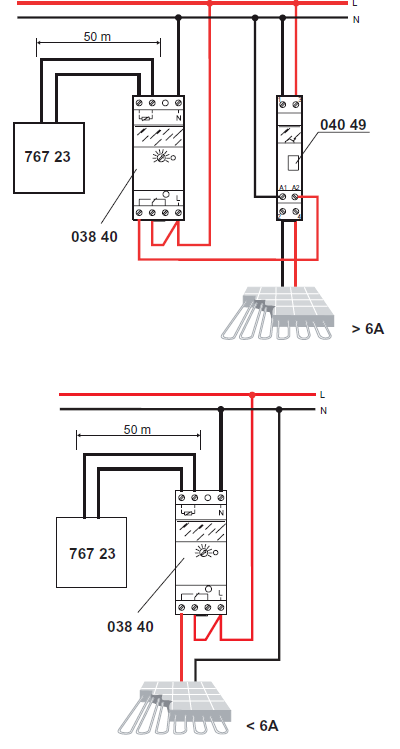

CONNECTION

  • Number of terminals: 2
  • Type of terminals: with screw
  • Length of stripping: 6 mm
  • Capacities of the terminals: 1 x 2.5 mm2 flexible or rigid
  • Tool: flat screwdriver 3.5 mm

Legrand- 076723- Modular- Thermostat-pro - 4

FUNCTION
The sonde uses a PTC (resistor with a positive temperature coefficient) for temperature measurement. The one used has a value of 1000  (± 10 ) at 25° C and a temperature coefficient of 0.75 %/K

° C Resistance ()
– 20 684
– 10 747
0 815
10 886
20 961
25 1000
30 1040
40 1122
50 1209

GENERAL CHARACTERISTICS

Mechanical characteristics

  • Impact tests: IK 04
  • Penetration of solid bodies/liquid: IP 41 (C15-100)

Material characteristics

  • Polycarbonate

Electrical characteristics

  • Glow wire test (IEC 60 695-2-10, -2-11 : 650° C / 30 s)
  • Voltage: 230 VAC
  • Frequency: 50/60 Hz

Climatic characteristics

  • Storage temperature: – 10° C to + 60° C
  • Ambient temperature: – 5° C to + 50° C

Reference
