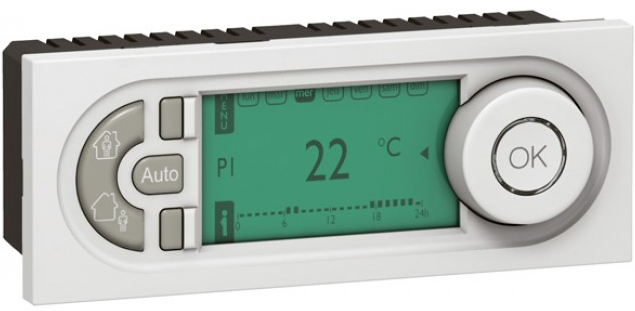

Legrand 076721 Thermostat programmable
Technical data
| Technical data | ||
| Supply voltage: | 230V 50/60Hz | |
| Power consumption: | 1 W | |
| Relay output: | 1 changeover contact 8A 250V~ cos f = 1 | |
| Accuracy: | ± 1 s /day, day under typical installation conditions | |
| single strand | multi strand | |
| Wire cross-sections: | 1,5…4 mm2 | 1,5…2,5 mm2 |
| Programs (saved by EEPROM) 4x predefined, 1x individual | ||
| Running reserve: | 100h for all settings | |
| Range of adjustment: | +7°C … +30°C | |
| Frost protection temperature: | +7°C | |
| Storage temperature: | – 10°C to +60°C | |
| Ambient temperature | – 5°C to +50°C | |
| Operating principle: | Typ 1.B. EN 60730-1 | |
| Energy class | IV = 2%, EU 811/2013 | |

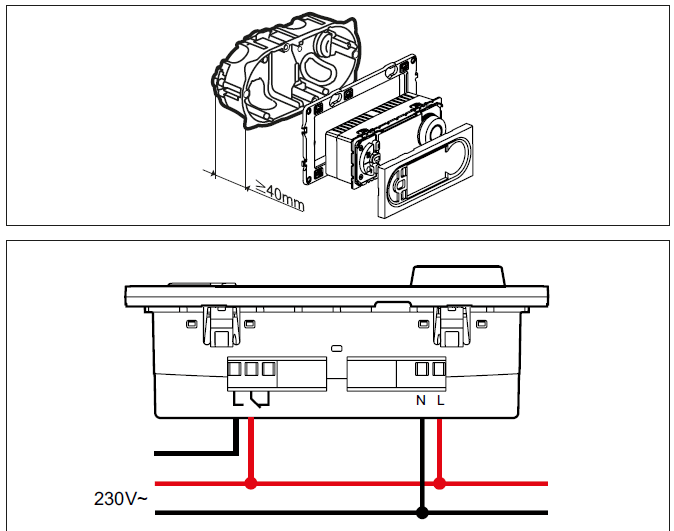

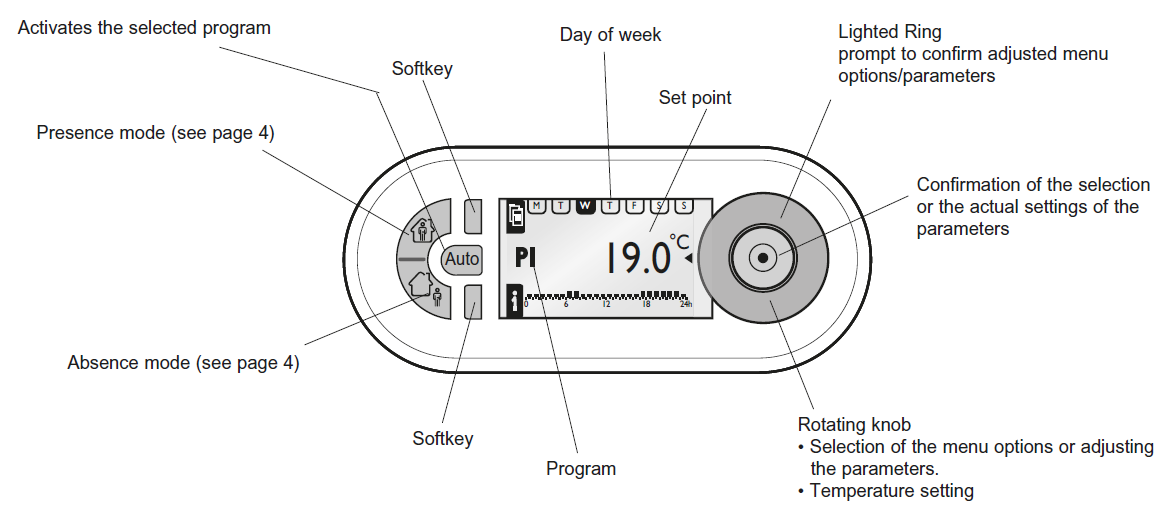

Softkeys
MENU
PROGRAMS

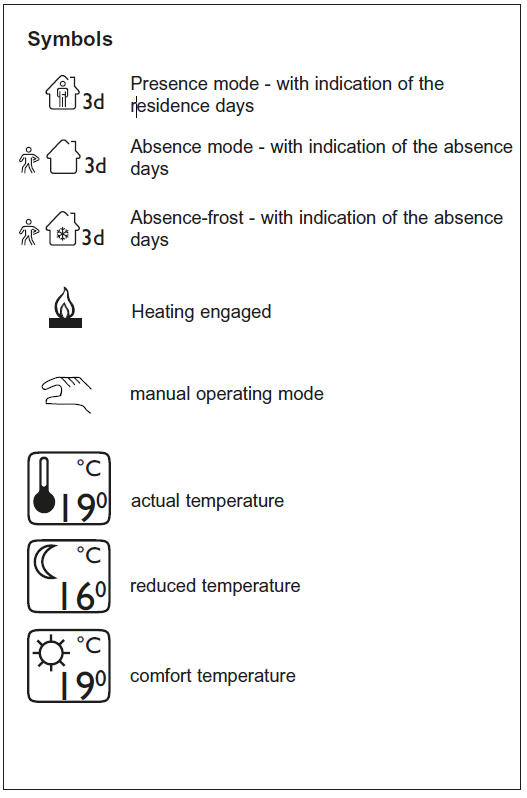

Symbols

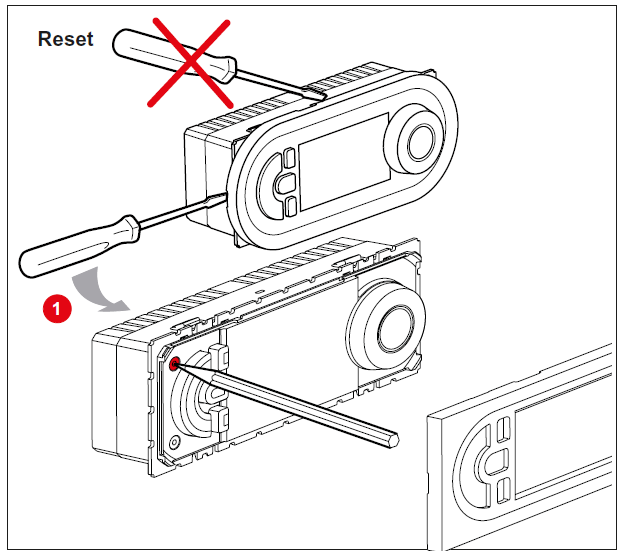

Reset

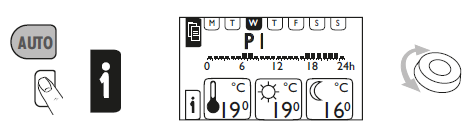

Program information
Manual regulation
Modifies the setpoint directly in steps of 0,5 °C; this action doesn’t affect the chosen mode. With the next automatic switching, either due to a program or because of a return to the auto mode, the setpoint is set back to the pre-selected value.

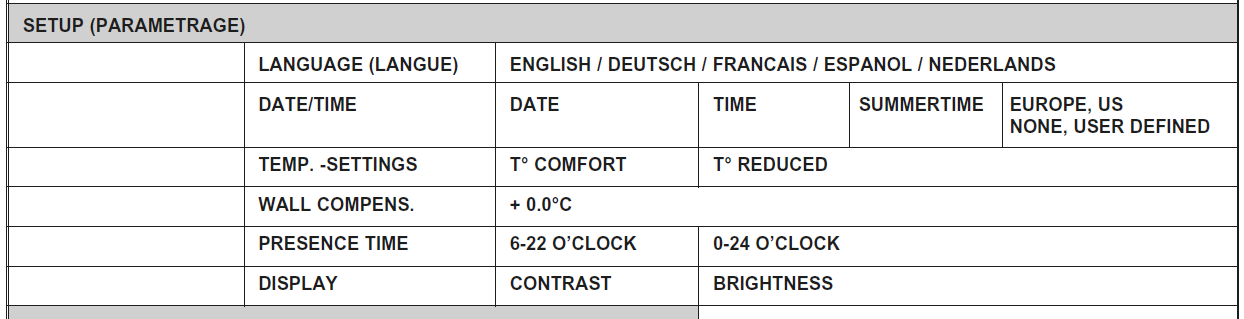

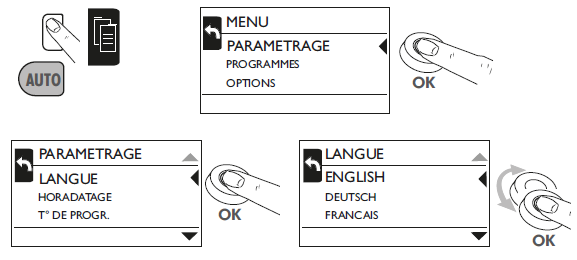

Select language

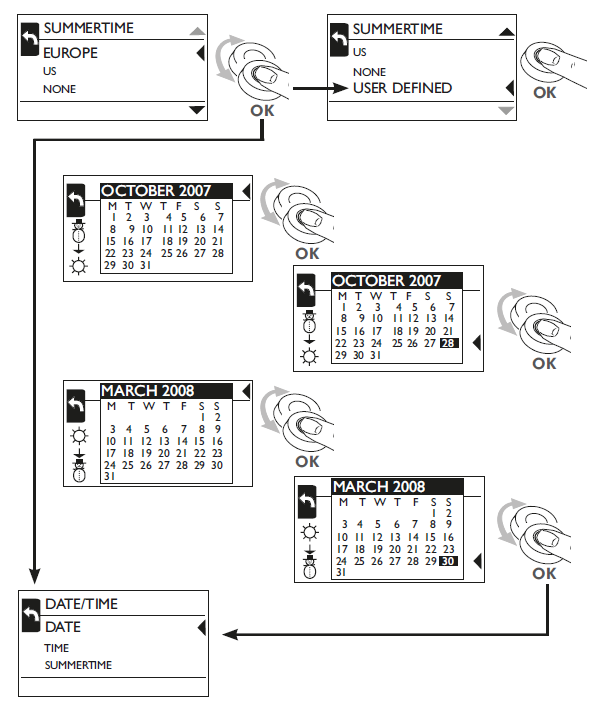

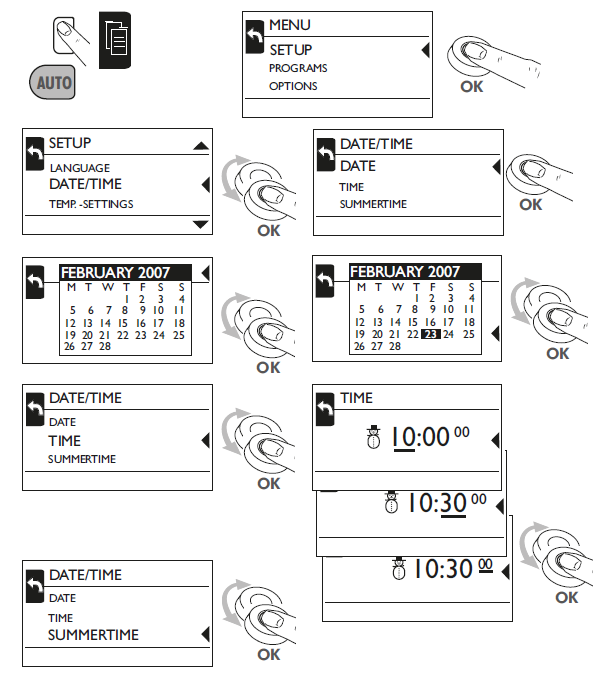

Time, date and summertime (Daylight saving time)

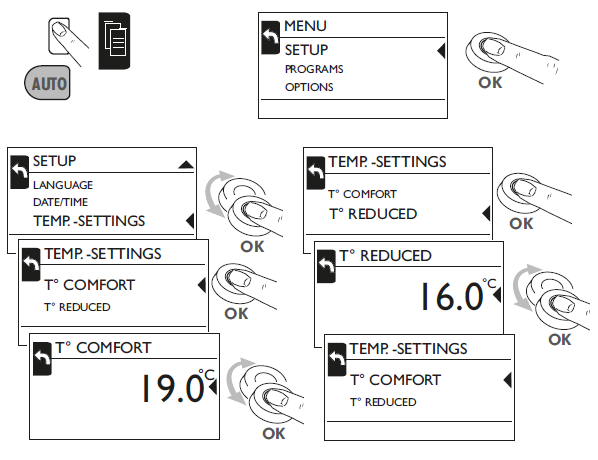

Temperature setting
Comfort time when present

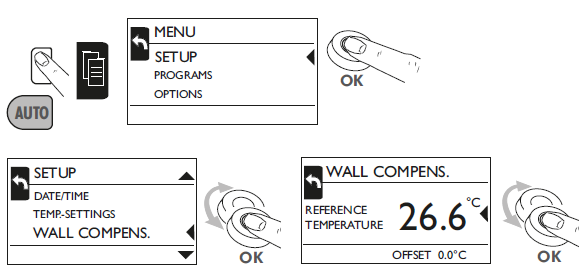

Wall compensation
The wall compensation enables the difference to be adjusted if the temperature values differ from the room temperature.
Contrast/brightness adjustment

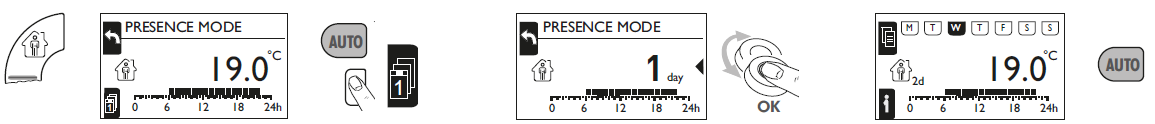

Presence mode

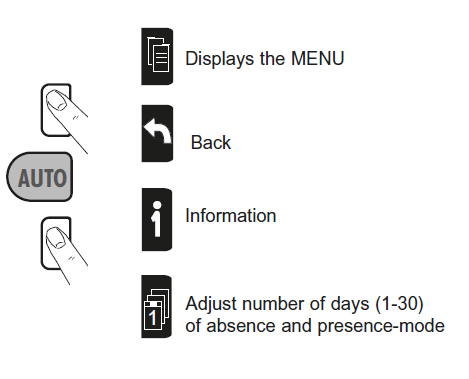

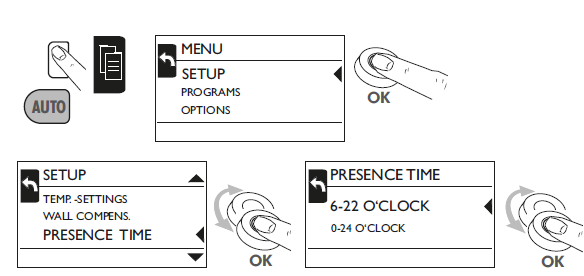

- Activates the comfort level between 6:00-22:00/0:00-24:00, the rest of the day the reduced level is active.
- This mode can be initiated for an unlimited time or for a number of days between 1 and 30.
- If button 1 is not pressed for 20s or button OK is pressed after the display of the presence mode screen, an unlimited number of days will be set.
- Adjust number of days (1-30) of presence-mode
- After expiration of the adjusted days or pressing the key AUTO returns to AUTO mode

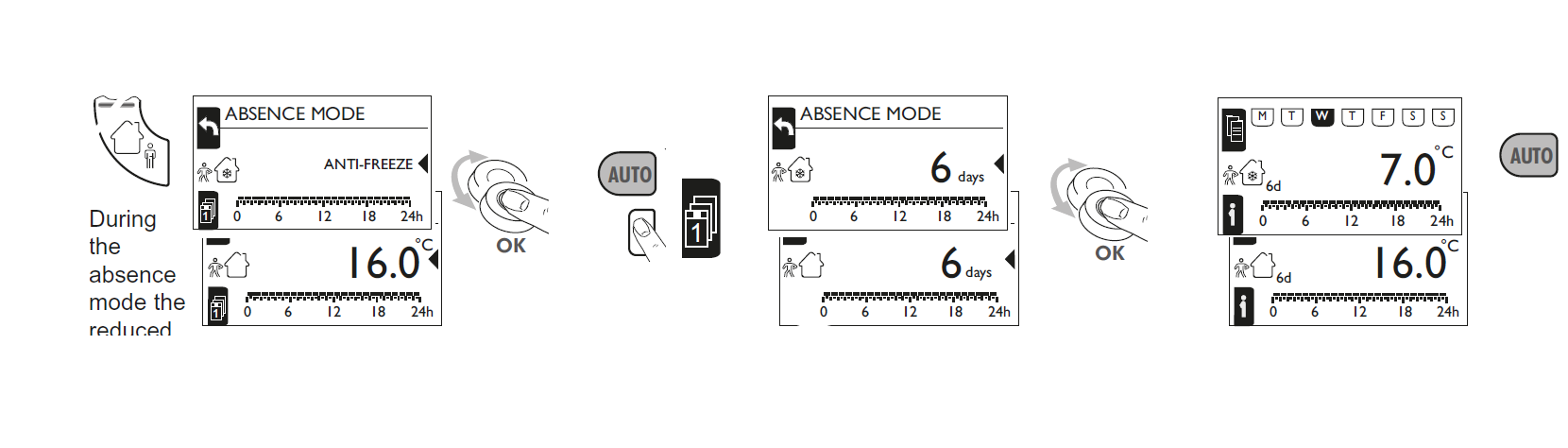

Absence mode
- During the absence mode the reduced or the frost protection level is activated throughout the day. The user can choose which level is actually used. This mode can be initiated for an unlimited time or for a number of days between 1 and 30.
- If button 1 is not pressed for 20s or button OK is pressed after the display of presence mode screen, an unlimited number of days will be set.
- Adjust number of days (1-30) of absence-mod
- After expiration of the adjusted days or pressing the key AUTO returns to AUTO mode.

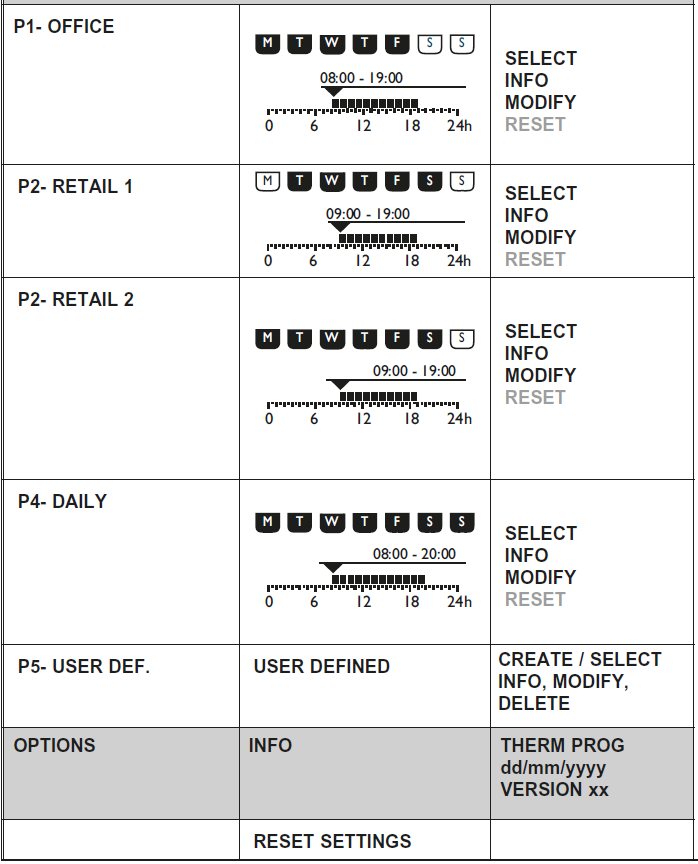

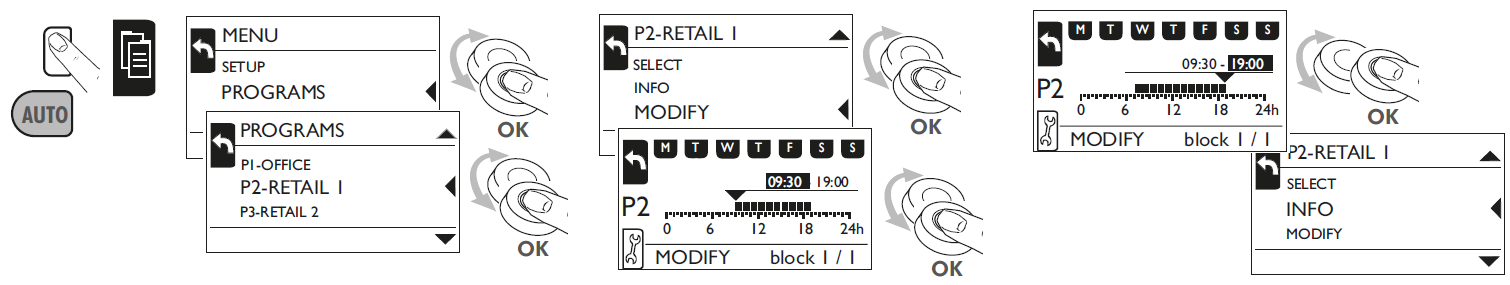

Modify programs Changes ON/OFF-times

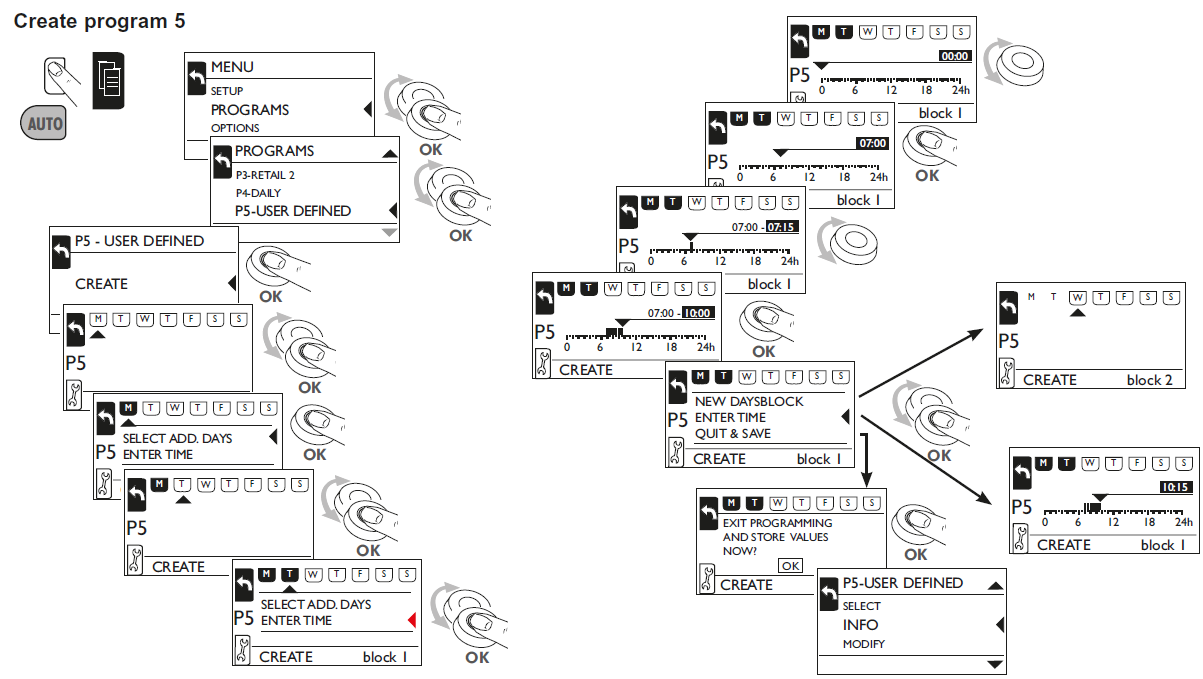

Create program 5
Reference
