Laticrete DS-26.3-1220 STRATA_HEAT Thermostat
PRODUCT NAME
STRATA_HEAT Thermostat
MANUFACTURER
- LATICRETE International, Inc.
- 1 LATICRETE Park North
- Bethany, CT 06524-3423 USA
- Telephone: +1.203.393.0010, ext. 1235
- Toll Free: 1.800.243.4788, ext. 1235
- Fax: +1.203.393.1684
- Website: laticrete.com
PRODUCT DESCRIPTION

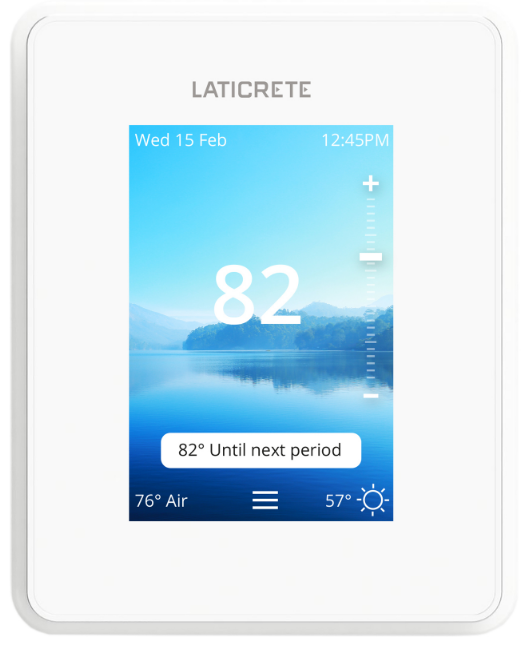

The STRATA_HEAT Thermostats are dual voltage 120V/240V and simple to use; the STRATA_HEAT A programmable Thermostat is a digital programmable thermostat and the STRATA_HEAT Wi-Fi Thermostat can be controlled through smartphone technology. The STRATA_HEAT Thermostats are designed to be used with the STRATA_HEAT Wire whether it is installed with the STRATA_MAT Spacing Strips or the STRATA HEATMat. All electrical connections must be made by a licensed electrician. Failure to do so will void all warranties and claims. Comply with all applicable building and electrical codes.
Parts
- One (1) power base
- One (1) Sensor Probe
- Two (2) screws
Advantages
- Advanced floor control maximizes comfort and energy savings
- 15 A (res.) 60 Hz
- 15 ft. (4.5 m) sensor included
- The easily accessible floor sensor connector
- Built-in GFCI with the test light
- 7-day easy to program
- User-friendly set-up
- Digital picture frame
- Suitable Substrates
TECHNICAL DATA
Physical Properties
|
Mod el |
Type |
Supply |
Max
. Loa d |
Floor Sens or |
GF CI |
| 0802
– 0403 -T |
Programma ble | 120V/24
0V |
15A,
60 Hz |
NTC (10K) | 5
mA |
| 0802
– 0404 -T |
Wi-Fi Compatible | 120V/24
0V |
15A,
60 Hz |
NTC (10K) | 5
mA |
Storage: -4°F to 140°F (-20°C to 60°C) Size (H x W x D) 3.54 x 4.72 x 0.85 in. (90 x 120 x 21.7 mm) 2 ¾” (7 cm) double gang box is recommended Specifications subject to change without notification. The results shown are typical but reflect the test procedures used. Actual field performance will depend on installation methods and site conditions.
INSTALLATION
Guidelines
Turn off power to the heating system at the main electrical panel to avoid electrical shock. The installation should be carried out by an electrician. See Easy Set Up Guide DS-46.4 and DS-0507 provided with the unit. Also, go to www.laticrete.com for the following information:
| Description | Numbe r | Type |
| STRATA_HEA
T Wi-Fi Thermostat |
DS- 046.4 | Easy Set-Up Guide |
| STRATA_HEA T
Programmable Thermostat |
DS- 050.7 | Easy Set-Up Guide |
| STRATA_HEA
T Wi-Fi Thermostat |
DS- 046.2 | Operating Manual |
| STRATA_HEA T
Programmable Thermostat |
DS- 050.4 | Operating Manual |
| STRATA_HEA
T Wi-Fi Thermostat |
DS- 044.8 | Troubleshooting guide |
AVAILABILITY AND COST
- Availability
- LATICRETE materials are available worldwide.
- For Distributor Information, Call: Toll-Free: 1.800.243.4788
- Telephone: +1.203.393.0010
- For online distributor information, visit LATICRETE at laticrete.com
- Cost Contact a LATICRETE Distributor in your area.
WARRANTY
See 10. FILING SYSTEM: DS 230.13: 1-Year Product Warranty
MAINTENANCE
The Internal STRATA_HEAT™ Thermostat GFCI (Ground Fault Circuit Interrupt) should be tested monthly to ensure continued safe operation. If an external GFCI
is utilized, it should also be tested monthly.
TECHNICAL SERVICES
- Technical Assistance
- Information is available by calling the LATICRETE
- Technical Service Hotline: Toll-Free: 1.800.243.4788, ext. 1235
- Telephone: +1.203.393.0010, ext. 1235
- Fax: +1.203.393.1948
Technical and Safety Literature
To acquire technical and safety literature, please visit our website at laticrete.com.
FILING SYSTEM
Additional product information is available on our website at laticrete.com. The following is a list of related documents:
- DS 230.13: LATICRETE Product Warranty (United States and Canada)
- DS 605.0: Floor Warming Mat
- DS 601.1: Installation Instruction Guide
2020 LATICRETE International, Inc. All trademarks shown are the intellectual properties of their respective owners. Data Sheets are subject to change without notice. For latest revision, visit laticrete.com. DS-26.3-1220
