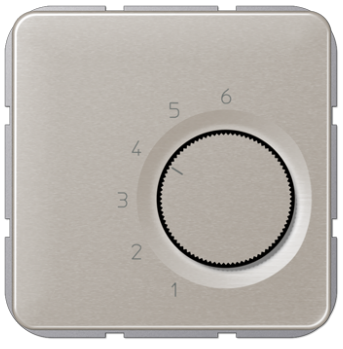

JUNG TR CD 236 PT Room thermostat

TR CD 236 PT

Room thermostat (2-way contact)

with screwless terminals for rigid wires up to 2.5 mm2
screw fixing only, without claws
1-pole, 2-way, heating 10 (4) A, AC 230 V ~, 50/60 Hz
1-pole, 2-way, cooling 5 (2) A, AC 230 V ~, 50/60 Hz
For switching between heating/cooling the EBERLE terminal strip EV..H/K is necessary.
(The value in brackets indicates inductive loads with cos = 0.6)
Thermal feedback (neutral conductor required)
Hysteresis: 0.5 K, nominal range: +5 °C … +30 °C
No neutral position
Without switch and control LED
When set temperature is reached the NO/NC contact switches over.

Metal versions (anodized aluminium)

Colour: platinum
Material: anodized aluminium
