JUNG LS 5194 KRM TS D Room controller thermostat

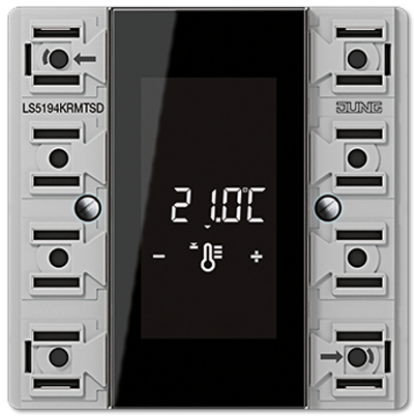

LS 5194 KRM TS D

Room controller display compact module 4-gang

For cover kit 4-gang, ref.-no.: ..504 TSA .. in the LS range can be extended by means of a room controller extension module, ref.-no: LS 5178 TSEM can be extended by means of a push-button extension module, ref.-no.: LS 509.. TSEM
Recommended mounting height: 1.5 m

Measurement and feedback control of the room temperature
Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
Installation in flush box according to DIN 49073

Product characteristics
All buttons can be assigned with push-button sensor functions or functions for controller operation.

KNX medium: TP 256
Backlit LC display
One or two functions per button
To be completed with cover kit
Eight status LEDs – red, green or blue
Brightness of status LEDs and LCD adjustable
Integrated bus coupling unit
Connection of extension modules
Integrated room temperature sensor
External sensor (ref.-no.: FF 7.8) can be connected
Room temperature control with setpoint value specification
Two internal independent controllers for two independent areas – in connection with extension modules
Display of room or set temperature (°C or °F)
Display of outdoor temperature – with external sensor, e.g. weather station
Display of time, in conjunction with KNX time encoder (in menu level)
Push-button function or rocker function
Disabling function: Disabling or changing the function mode of single or all button functions
Alarm function, optional acknowledge by pressing any button
Function symbols can be shown
