IEC E055-71520325 Programmable Fan Coil Thermostat User Manual

IEC-LOGO

IEC E055-71520325 Programmable Fan Coil Thermostat

IEC_E055-71520325_Programmable_Fan_Coil_Thermostat-product

Compatibility

Your IEC fancoil thermostat is designed to work with 24V fancoils, both 2 pipe or 4 pipe. For 2 pipe units with automatic changeover between heating and cooling based on water supply, you will need to obtain a H2O changeover switch, G100-71520306. The thermostat controls 3 speed fans and can control to a remote temperature sensor.

Contents

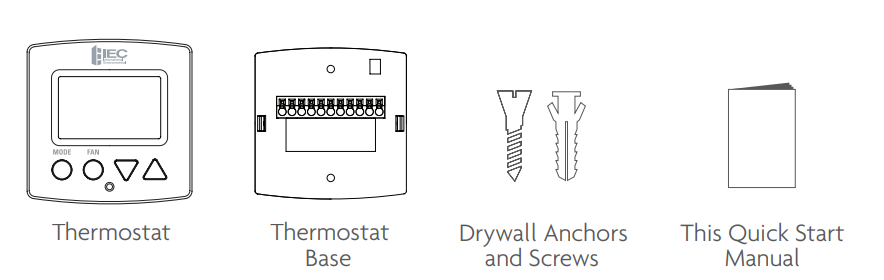

IEC E055-71520325 Programmable Fan Coil Thermostat-fig.1

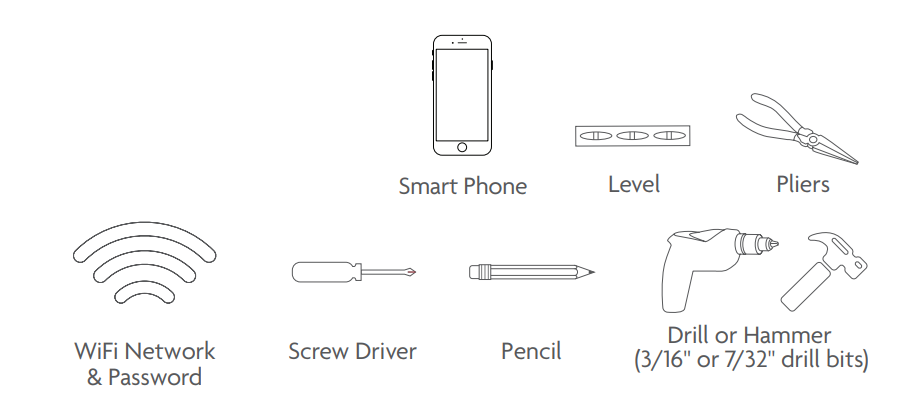

Necessary Tools

IEC E055-71520325 Programmable Fan Coil Thermostat-fig.2



INSTALLATION

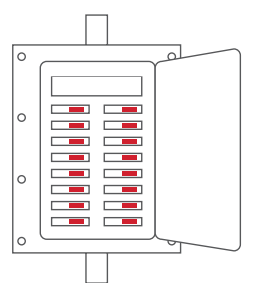

  1. Step 1 – Power Off Current SystemIEC E055-71520325 Programmable Fan Coil Thermostat-fig.3
    • All power must be disconnected before any installation or service is attempted. More than one power source may be supplied to a unit. Power to remote mounted control devices may not be supplied through the unit.
    • To confirm power is off, adjust the temperature on your current thermostat.
      WARNING: Failure to follow this step can result in personal injury and/ordeath from shock and electrocution.
  2. Step 2 – Remove Faceplate

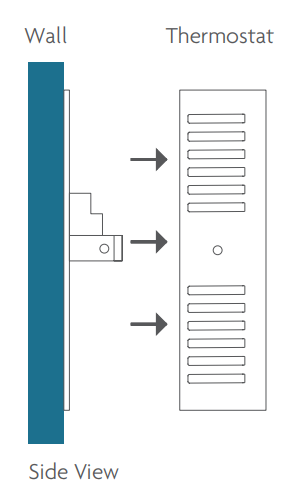

    IEC E055-71520325 Programmable Fan Coil Thermostat-fig.4Remove the faceplate of the current system. Most faceplates snap-off or feature small screws that will need to be removed.
    WARNING: If you see large thick electrical wires, wire nuts, or if your system is labeled 120V, 240V, or 277V DO NOT PROCEED. THIS THERMOSTAT IS NOT COMPATIBLE WITH THESE SYSTEMS
    IEC E055-71520325 Programmable Fan Coil Thermostat-fig.5
    WARNING: Failure to follow this step can result in personal injury and/or death from shock and electrocution.
  3. Step 3 –
    If you are NOT replacing an existing IEC thermostat (model numbers E055-71520301 – E055-71520305, E055-71520316 – E055-71520319), proceed to Step 4.
    If you ARE replacing one of those thermostat models, you should not need to unwire or replace the existing backplate. Your new thermostat not only fits onto that backplate but has the same wire locations.
    If you see any wire attached to the RS terminal, you may need to change the remote sensor in the fancoil. See Owner’s Manual for details.
    If you see a wallplate in place behind the thermostat backplate, you will need to use a plastic shim (E055-71520329) to give a better mechanical fit. The shim is available for purchase through Parts. Contact your local sales representative for assistance. Proceed to Step 8.
  4. Step 4 – Label & Disconnect Wires
    • One by one, apply a label designated to each wire you disconnect from your current thermostat.

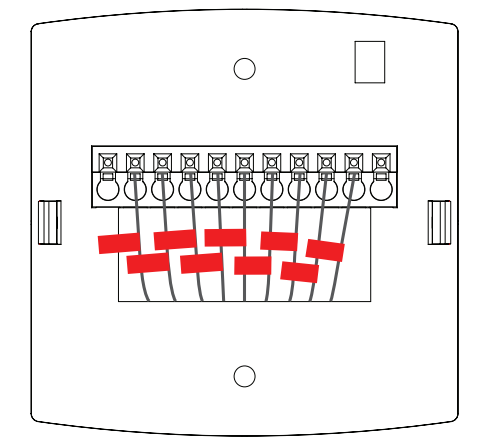

      IEC E055-71520325 Programmable Fan Coil Thermostat-fig.8
      TIP: Before disconnecting any wires, take a photo of your current wire configuration with your mobile device.
      IEC E055-71520325 Programmable Fan Coil Thermostat-fig.9
      Wire from the old thermostat terminal marked

      Function

      Install on the new thermostat connector marked

      Wire Color

      G1, GL Low Fan Speed G
      G2, GM Middle Fan Speed G2
      G3, GH High Fan Speed G3
      Y, Y1 chilled water valve (4 pipe) or hot/chilled water valve (2 pipe) Y1
      W, W1 hot water valve (4 pipe) or strip heat (2 pipe) W1
      H/C, WATER 2 pipe water temp sensor (open = hot,

      closed = chilled)

      H20
      SWITCH Dry contact for condensate overflow, occupancy sensor, door switch CK1
      REMOTE wired remote 10K thermistor RS
      R, Rh, M, Vr, A power (24v) R
      C common C
      Y2 2-stage cooling Y2
  5. Step 5 – Remove Current Backplate
    Unscrew the current backplate and remove it from the wall. Be careful not to let the wires fall into the wall.
    IEC E055-71520325 Programmable Fan Coil Thermostat-fig.6
    TIP: If needed, wrap the wires around a pencil or pen to keep them from falling inside the wall.
    IEC E055-71520325 Programmable Fan Coil Thermostat-fig.7
  6. Step 6 – Mount New Base
    • Gently separate the display from the base by pulling first from one side, then the other until the two pieces unsnap. A small screwdriver may be used, very carefully, to start separating the two pieces.
      TIP: If needed, wrap the wires around a pencil or pen to keep them from falling inside the wall.

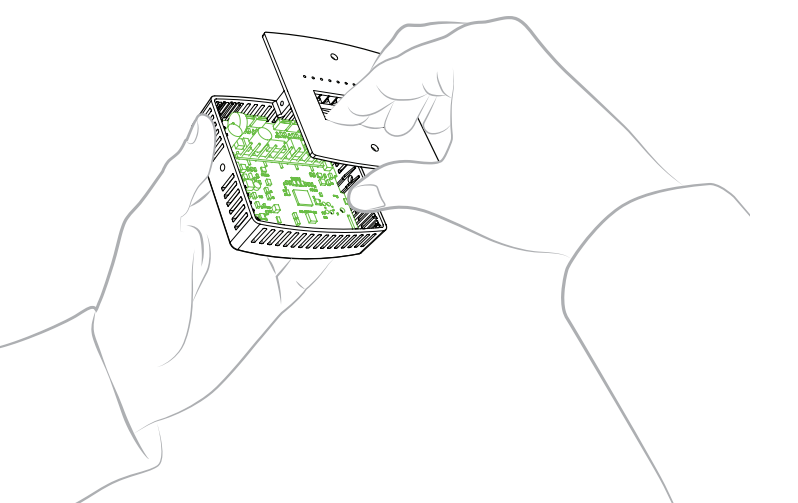

      IEC E055-71520325 Programmable Fan Coil Thermostat-fig.10
    • Position the base against your wall, and determine if wall anchors from the current thermostat align with the screw locations of new base.
    •  If the base does not align with existing anchor holes, mark new screw locations with a pencil.
      Drywall: Drill a 3/16″ hole for the anchor
      Plaster: Drill a 7/32” hole for the anchor
    • Pull wires through the opening in the base and secure to the wall using provided screws.
      TIP: Use a level to ensure thermostat is properly aligned before marking screw locations.

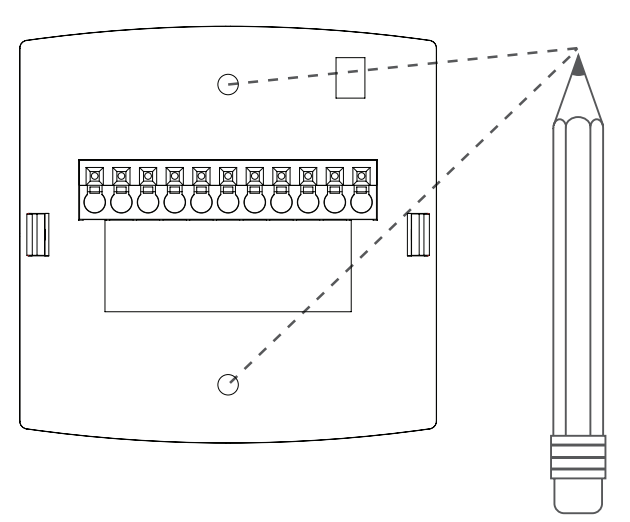

      IEC E055-71520325 Programmable Fan Coil Thermostat-fig.11
  7. Step 7 – Connect Wires
    • Match your previous wire configuration to the new base. One by one, connect each wire by inserting the metal end into the corresponding slot and tightening the screw.
      TIP: Use pliers to straighten wire before inserting into new base. Be sure to cut any excess wire so that the insulation extends to the terminal block. When the wire is installed properly to the terminal block, there should be no copper exposed.
  8. Step 8 – Attach Thermostat
    Align the pins on the thermostat circuit board with the corresponding holes below the wiring connectors and push the top and the bottom of the plastic housing enclosing the display until it clicks into place, top and bottom.
    IEC E055-71520325 Programmable Fan Coil Thermostat-fig.14
    Front of thermostat should click into place easily. If you encounter resistance do not apply excess force – remove, check that the pins are straight and ensure there are no wires in the way and retry.
  9. Step 9 – Switch Power/Circuit Breakers Back On
    Turn your fancoil back on.
  10. Step 10 – Set Up Wi-Fi Connection
    Overview
    At minimum, the first 3 tasks below must be completed to access your thermostat remotely from a browser. The 4th step is optional (highly recommended) and only is needed to access your thermostat(s) from a mobile device.
    These steps are:
    • Successful connection to a local Wi-Fi Access Point with internet access.
    • Confirm receipt of a Skyport generated verification email (this only occurs once during the Skyport account setup).
    • A 6-digit code obtained from the thermostat is successfully entered into a Skyport account.
    • Successfully download and install the IEC Skyport app on your mobile device(s).
      Your thermostat operates on the 2.4 Ghz, Wi-Fi b/g/n band.

TABLE OF BUTTON PRESSES TO ENTER MENUS

TO ENTER MENUS BUTTON PRESS

  • Setup Steps………………………..MODE & FAN for 5 seconds
  • Time Schedule…………………..MODE & Up for 2 seconds
  • Emergency Heat………………..Up & FAN for 2 seconds
  • Lockout Buttons……………….MODE, Up & Down for 2 seconds
  • Calibration………………………….MODE & Down for 2 seconds, then MODE
  • Wireless Setup…………………..FAN for 5 Seconds
  • Humidity……………………………..MODE for 2 seconds

Connect to Wi-Fi

The IEC thermostats are joined to a Wi-Fi network with the help of the IEC Configurator App. This app may be downloaded from your mobile device’s app store. Once the thermostat is installed and powered, the Configurator App will facilitate connection to the access point in 6 steps as outlined below.

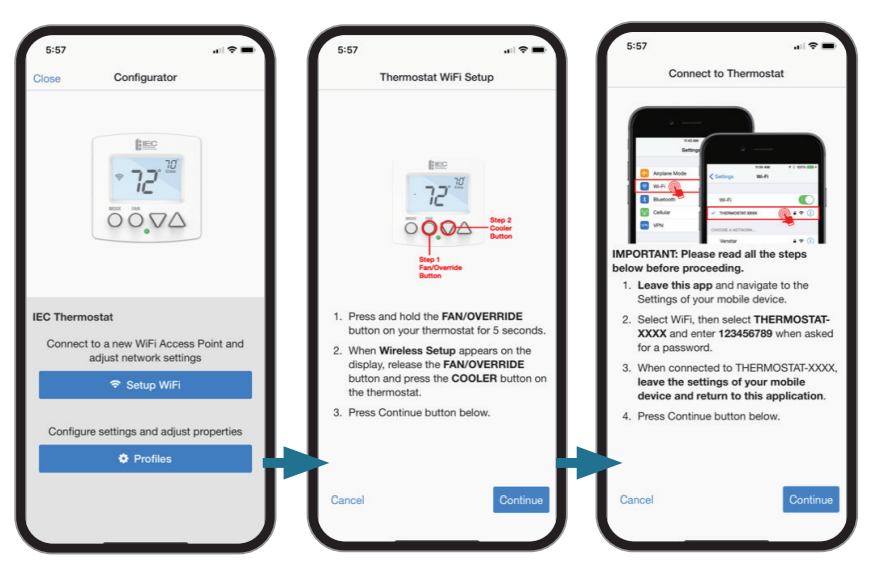

IEC E055-71520325 Programmable Fan Coil Thermostat-fig.15

  1. Select “Setup Wi-Fi” on the Configurator App.
  2. Press and hold the FAN button for 5 seconds. When “Wireless Setup” appears on the display, release the FAN button. Then press the COOLER button on the thermostat to configure Wi-Fi settings. Select “continue” on the Configurator App.
  3. Go to the settings of the mobile device. Select Wi-Fi, then select the IEC thermostat (THERMOSTAT-XXXX).
    Enter the password: 123456789 when prompted. Return to the Configurator App and select “Continue”.
    IEC E055-71520325 Programmable Fan Coil Thermostat-fig.15
  4. Select the access point of your building or home to join.
  5. Enter the network password and select “Done”. Then press “Continue” in the lower right corner to complete setup.
  6. When completed, the full Wi-Fi symbol will appear on the display.

Connect to Skyport

Although there is more than one way to create a Skyport account, the steps below illustrate account creation from a browser. To create a Skyport account a thermostat must be joined to the account. If the thermostat is connected to the local Wi-Fi Access Point, but you do not have a Skyport account, you may create an account and join the thermostat to the account by doing the following:

  1. Open your browser to: http://iec.skyportcloud.com
  2. Select “Create account now”
  3. Follow on screen instructions to create an account and add a thermostat to the Skyport account.

If the thermostat is connected to the local Wi-Fi access point but not yet joined to an existing Skyport account, you may join the thermostat to the account by doing the following:

  1. Log in to your Skyport account.
  2. Select the “Location” you want to add a thermostat into.
  3. Select the “Thermostat tab”.
  4. Select “+ Add Thermostat”. A screen will ‘pop-up’ asking for a six digit code.
  5. Press and hold the fan button on the thermostat for 5 seconds.
  6. Press the Up button on the thermostat.
  7. A six digit code will appear on the thermostat’s display.
  8. Enter the six digit code into your Skyport account.

Skyport will maintain the correct time and day on your thermostat. If you would like to set up a program/schedule to maintain the desired temperature at various times of the day, you can do this manually at the thermostat or use the Skyport website to enter a time period schedule.
The complete manual is available at iec-okc.com.It is much easier to setup the time period program/schedule on the Skyport Web App. To make these adjustments and more to your thermostat from
Skyport follow these steps:

  1. Login to your Skyport account
  2. Choose the location where your thermostat is installed (the left column)

You may now control the basic functions of the thermostat like MODE, setpoints or fan speed.
You can also press on the upper right section of the panel in order to customize the settings.
A quick summary of the settings is as follows:

IEC E055-71520325 Programmable Fan Coil Thermostat-fig.17

  • Thermostat info – allows you to name the thermostat, view software revision
  • Permissions – as the owner of this thermostat, you can grant access to other users
  • Runtimes – view the two week heat or cool runtime of this specific thermostat
  • Sensors – view the current and daily min/max values from the internal temperature/humidity sensor and any linked wireless sensors
  • Alerts – view and edit this thermostat’s alerts and setup email notifications
  • Schedule – view/edit the time period schedule for this thermostat
  • Settings – view/edit all settings within the thermostat (fancoil type, setpoint limits, etc)

Troubleshooting

Use the following troubleshooting guide to diagnose common problems.

Problem Possible Cause Solution
Display won’t turn on Lack of proper power Make sure that the fancoil unit is powered.

Check for 24 VAC between R and C at backplate

Cooling won’t turn on The cool setpoint is set too high Lower the cool setpoint, minimum setpoint limit or reduce deadband
Heating won’t turn on The heat setpoint is set too low Raise the heat setpoint, maximum setpoint limit or reduce deadband
Two pipe auto changeover fancoil shows heat

with chilled water or cool with hot water

Water changeover switch not installed or incorrect type Contact IEC for proper changeover switch (closed below 60F, open above 75F)
2 pipe water valve won’t open in heat or cool Valve not wired to Y1 terminal Check wiring
4 pipe hot water valve open with no heat demand Valve might be ‘power to close’ type Check with fancoil manufacturer before altering ‘Hot Water Valve Type’ setting
Problem Possible Cause Solution
The thermostat won’t connect to the access point Wrong password Enter the correct password


Access point offline



Bring access point online



Can’t connect to Skyport



No internet connection on access point



Restore internet



Firewall restrictions



Check firewall settings



Can’t get a 6 digit pairing code



Thermostat already in account

Factory default thermostat, remove from Skyport account
No internet connection on access point

Restore internet





Firewall restrictions





Check firewall settings

For additional support, contact Technical Support at 405-605-5000.
