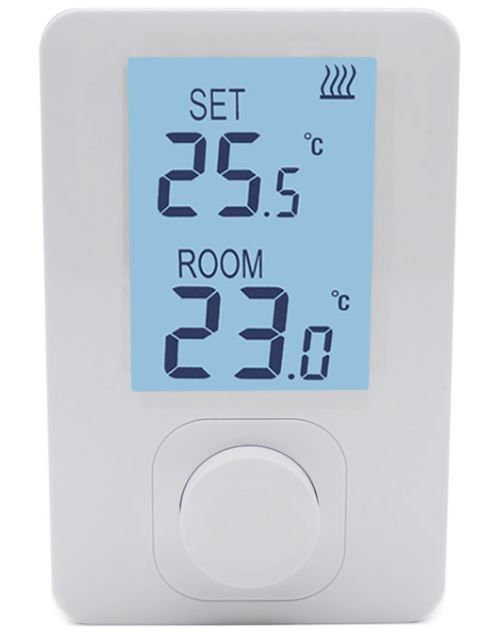

hotowell HTW-31-KT13V Heating Room Thermostat
Introduction
This surface-mounted heating thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.
Functions
- Large display can be clearly read with the background lighting.
- Easy to fit thermostat and receiver.
- Knob Button make it easy to use, press button to on/off thermostat, turn left/right to adjust the values. Non-programmable
- White Backlight
- The display shows the set temperature as well as the measured temperature.
- Temperature display in degrees Celsius.
Technical Data
- Thermostat operating voltage: 2 x AAA1.5 V, alkaline batteries.
- Backup storage: EEPROM
- Maximum voltage / (ohmic) load: 8A.
- Switch contacts: NO and NC.
- Temperature settings: 5°C ~ 30°C, 0.5°C increments.
- Accuracy: +/- 0.5°C
- Thermostat dimensions: Surface mounted, 135mm x 87.5 mm x 23.2mm.
- Color: White
- IP protection rating: 20.

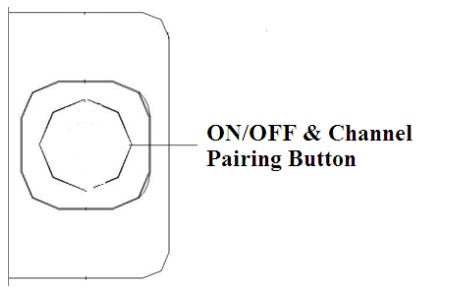

Temp. Calibration & Channel Pairing
Temp. Calibration: Turn off the thermostat, and press On/off button for 3 sec. to calibrate Temp. by pressing “+” and “-“ buttons.
Wiring Diagram
Dimensions
