Hotowell HTW-31-F12 Room THERMOSTAT
This: digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
Technical Data
| Power Supply – 230V, 110V, 24V 50/60Hz | Backlight – White, Blue, Green |
| Power Consumption – 1.5A | Sensor – NTC 10K, 3950ohms at 25℃ |
| Set Point Range – 10~30℃ | Accuracy – + 1℃ (step control by +0.5℃) |
| Ambient – 0~50℃ | Protection Class – IP30 |
| Relative Humidity – 85% | Housing – ABS to UL94-5 fire retardant plastic |
Features
- Attractive modern styling
- Adjustable heating/cooling/ventilating mode control
- Adjustable manual 3-speed and automatic fan speed control
- standard junction box mounting
- 4-pipes & 2-pipes(optional)
- RS-485, Modbus(optional)
- Infrared remote control(optional)
- Key card(optional)

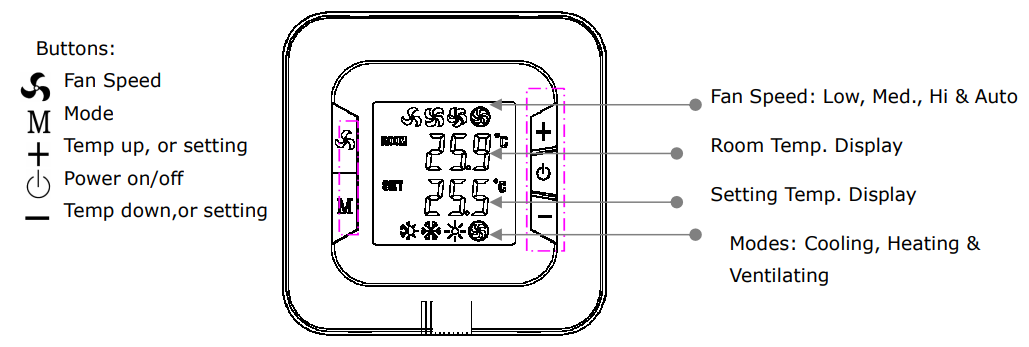

Display and Keys
Wiring Diagrams

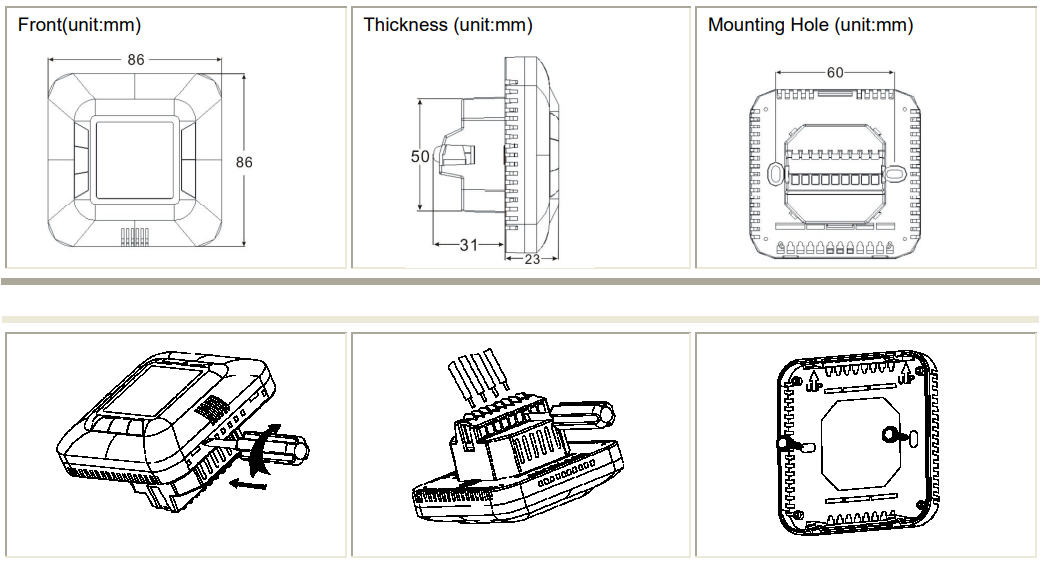

Dimension & Installation
REFERENCE:
DOWNLOAD MANUAL:
Hotowell HTW-31-F12 Room THERMOSTAT Data Sheet
