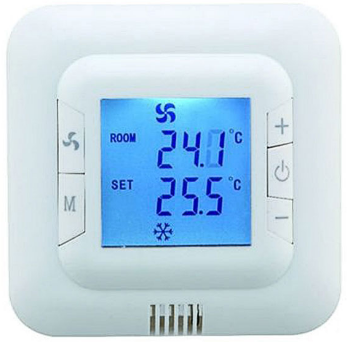

hotowell HTW-31-F12 Digital Room Thermostat
INTRODUCTION
This digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
Technical Data
| Power Supply | – 230V, 110V, 24V | 50/60Hz | Backlight – White, Blue, Green |
| Power Consumption | – 1.5A | Sensor – NTC 10K, 3950ohms at 25℃ | |
| Set Point Range | – 10~30℃ | Accuracy – + 1℃ (step control by +0.5℃) | |
| Ambient | – 0~50℃ | Protection Class – IP30 | |
| Relative Humidity | – 85% | Housing – ABS to UL94-5 fire retardant plastic |
Features
- Attractive modern styling
- Adjustable heating/cooling/ventilating mode control
- Adjustable manual 3-speed and automatic fan speed control
- standard junction box mounting
- 4-pipes & 2-pipes(optional)
- RS-485, Modbus(optional)
- Infrared remote control(optional)
- Key card(optional)

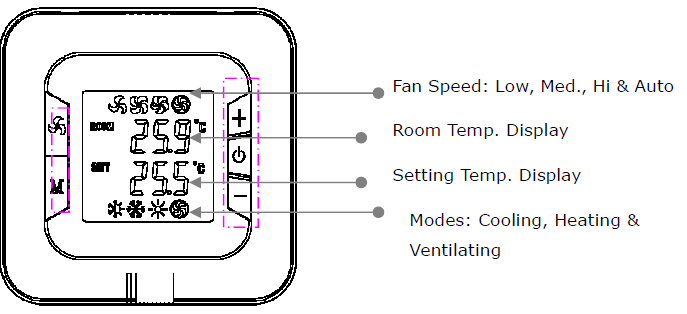

Display and Keys
Buttons
Fan Speed
Mode
Temp up, or setting
Power on/off
Temp down,or setting

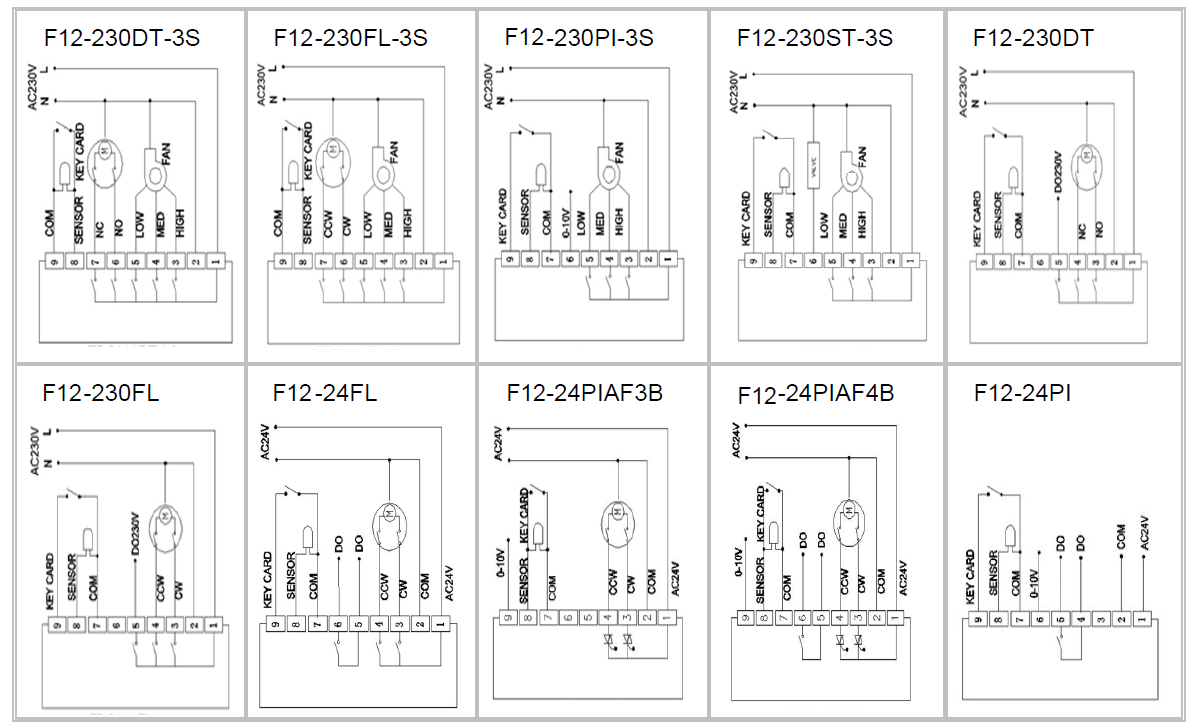

Wiring Diagrams

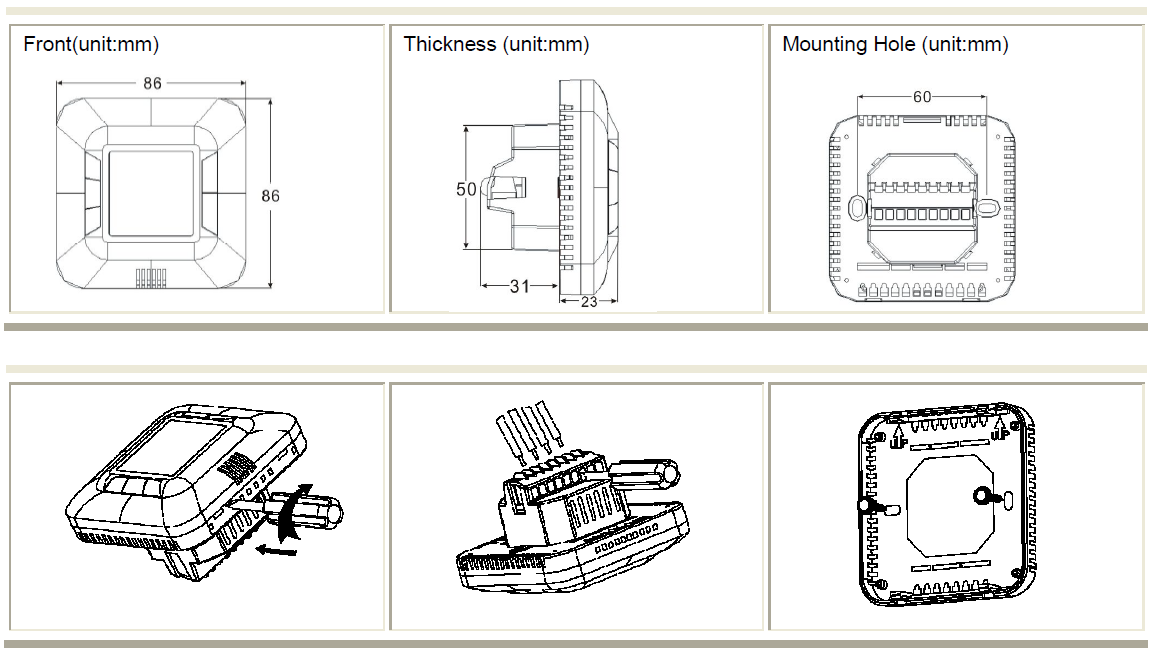

Dimension & Installation
