Honeywell RTH9580 Wi-Fi Thermostat
Welcome
set up and ready is simple.
- Install your thermostat.
- Connect your home Wi-Fi network.
- Register online for remote access.

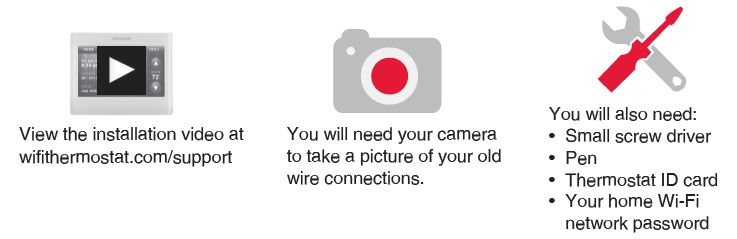

Before you begin
Install your thermostat
Switch OFF power to your heating/cooling system
- Important! To protect your equipment, switch OFF the power to your heating/cooling system at the breaker box or the system switch.
- Confirm power is OFF. Try to turn on the heating/ cooling equipment by changing the temperature on your old thermostat. Your power is OFF if your system does not turn O
This thermostat works with common 24-volt systems such as forced air, hydronic, heat pump, oil, gas, and electric. It will not work with millivolt systems, such as a gas fireplace, or with 120/240 volt systems such as baseboard electric heat.
Remove the old thermostat faceplate and leave the wires connected
- Take a picture of the wire connections for later reference.
- If no wire is connected to a terminal labeled C or no C terminal exists on the old thermostat, view the Alternate Wiring videos a wifithermostat.com/videos
Important! C wire is required and is the power source for your thermostat. Without a C wire, your thermostat will not power up
If you have an older thermostat with a sealed mercury tube, see the warning page for proper disposal instructions.
Label wires
Do not label by wire color. Use the supplied sticky tags to label each wire as you disconnect it. Label wires according to the old thermostat terminal designations, not by wire
color.
Note: If no tag matches a terminal designation, write the appropriate letter on a blank sticky tag. Note: Wrap the wires around a pencil to prevent them from falling back into the wall.
Remove wallplate
Remove the old wallplate from the wall after all wires are labeled and disconnected
Mount wallplate for Wi-Fi thermostat
Mount your new wallplate using screws and anchors included with the thermostat. If necessary:
- Drill 3/16-in holes for drywall
- Drill 7/32-in holes for plaster
Note: You may be able to use your existing wall anchors. Hold the wallplate up to the existing anchors to check for alignment.
Connect wires
Important! C wire is required and is the power source. Without a C wire, your thermostat will not power up. View the Alternate Wiring videos at wifithermostat.com/videos
- Starting with the C Wire, match the sticky tag on the wire to the terminal labels.
- Straighten the wire and gently slide it into the terminal hole until it clicks into place. (If you need to remove a wire, use a pen tip to press the terminal release and then pull the wire out.)
- Note: Refer to the wiring picture you took in Step 1.2
- Tip: To make it easier to slide the wire into place, use a pen tip to hold down the terminal release.
Labels don’t match or have a heat pump system?
See User Guide.
- In the image on the right, check the box next to each connection. You will use this checklist in Step 1.9.
- Verify wire is firmly secured by gently pulling on the wire.
- Repeat steps a–d for all other wires.
- Push any excess wire back into the wall opening after all wires are installed.
- Note: The L terminal on the lower right is used only for Heat Pump systems.
- Note: If the old thermostat for Heat Pump System has separate wires on Aux and E, use a wire nut to attach both wires to a separate wire. Slide this third wire into the W2-Aux/E terminal.
Important!
Check the box for each wire you connect. You will need this information in Step 1.9.
Labels don’t match or have a heat pump system?
See User Guide.
Attach thermostat to wallplate
Align the thermostat with the wallplate and snap it into place.
Switch the heating/cooling system ON
Important!
- Verify that the C wire is connected to the thermostat and at the heating/cooling system.
- Make sure the heating/cooling system door is firmly secured.
- Switch power back ON for your heating/cooling system at the breaker box or its power switch
Select setup
Before connecting to your Wi-Fi network, you need to set initial thermostat options to define your heating/cooling system:
- Language
- Home or business
Follow the prompts on the screen to select the appropriate options.
- Touch the language you want the thermostat to display, then touch Next.
- Select Home or Business
application, then touch Next. - Touch Next or name the thermostat location—touch THERMOSTAT and follow the rest of the instructions.
- Select what your thermostat will control and touch Next.
- Select your system type and touch Next The system type determines other selections for completing the initial setup. Use the checklist from Step 1.6 when making selections.
- Touch Next after making selections on each screen.
- Touch Done on the last screen. The thermostat displays an option to connect to your Wi-Fi network.
Connect to your Wi-Fi network
Connect the Wi-Fi network
After touching Done on the final screen of the initial setup (Step 1.9g), the thermostat displays an option to connect to your Wi-Fi network.
- Touch Yes to connect the thermostat to your Wi-Fi network. The screen displays the message “Searching for wireless networks. Please wait…” after which it displays a list of all Wi-Fi
networks it can find. - Note: If you cannot complete this step now, touch I’ll do it later. The thermostat will display the home screen. Complete this process by selecting MENU > Wi-Fi Setup. Continue with Step 2.1b.
- Touch the name of the network you want to use. The thermostat displays a password page.
- Using the keyboard, touch the characters that spell out your home network password.
- Touch Done. The thermostat displays “Connecting to your network. Please wait…” and then shows a “Connection Successful” screen.
Note: If your home network is not shown on the list, touch Rescan. - Touch Next to display the registration information screen
Getting Help
If you get stuck…
At any point in the Wi-Fi connection process, restart the thermostat by removing the thermostat from the wallplate, wait for 5 seconds, and snap it back into place. From the home screen, touch MENU > Wi-Fi Setup > Choose a Network. Continue with Step 2.1b.
Need more help?
Find additional information in the User Guide.
Register online for remote access
To register your thermostat, follow the instructions in Step 3.1.
Note: The Register Online screen remains active until you complete registration and/or touch Done.
Note: If you touch Done before you register online, your home screen displays an orange alert button telling you to register. Touching that button displays the registration information and an option to snooze the task.
To view and set your Wi-Fi thermostat remotely, you must have a Total Connect Comfort account. Follow the instructions below. View the Wi-Fi Thermostat Registration video at wifithermostat.com/videos
Open the Total Connect
Comfort web site
Go to www.mytotalconnectcomfort.com
Log in or create an account
If you have an account, click Login – or – click Create An Account.
- Follow the instructions on the screen.
- Check your email for a response from My Total Connect Comfort. This may take several minutes.
Note: If you do not receive a response, check your junk mailbox or use an alternate e-mail address. - Follow the activation instructions in the email.
- Log in.
Register your Wi-Fi thermostat After you are logged in to your Total Connect Comfort account, register your thermostat.
- Follow the instructions on the screen. After adding your thermostat location you must enter your thermostat’s unique identifiers:
- MAC ID
- MAC CRC
Note: These IDs are listed on the Thermostat ID Card included in the thermostat package. The IDs are not case-sensitive.
- Notice that when the thermostat is successfully registered, the Total Connect Comfort registration screen will display a SUCCESS message.
- You can now control your thermostat from anywhere through your laptop, tablet, or smartphone
Total Connect Comfort free app is available for Apple® iPhone®, iPad® and iPod touch® devices at iTunes® or at Google Play® for all Android™ devices.
- This thermostat works with common 24-volt systems such as forced air, hydronic, heat pump, oil, gas, and electric. It will not work with millivolt systems, such as a gas fireplace, or with 120/240 volt systems such as baseboard electric heat.
- MERCURY NOTICE: Do not place your old thermostat in the trash if it contains mercury in a sealed tube. Contact the Thermostat Recycling Corporation at www.thermostat-recycle.org or 1-800-238-8192 for information on how and where to properly and safely dispose of your old thermostat.
- NOTICE: To avoid possible compressor damage, do not run the air conditioner if the outside temperature drops below 50°F (10°C).
Need help?
Visit wifithermostat.com or call 1-855-733-5465 for assistance before returning the thermostat to the store.
Automation and Control Systems
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422 wifithermostat.com
® U.S. Registered Trademark.
Apple, iPhone, iPad, iPod touch and iTunes are trademarks of Apple Inc.
All other trademarks are the property of their respective owners.
© 2013 Honeywell International Inc.
69-2810—01 CNG 03-13
Printed in the U.S.A
