Honeywell RTH7600D1030-E Touchscreen Programmable Thermostat
Installation is Easy
- Label wires and remove your old thermostat Install and wire your new thermostat
- Set your new thermostat to match your heating/cooling system
- This thermostat works with virtually all System Types
- It is preset for the most common system
Turn Off power to the heating cooling system
Remove Old Thermostat
Remove old thermostat but leave wallplate with wires attached.

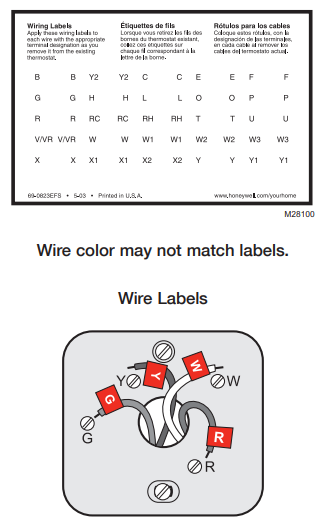

Label Wires with Tags
- Label the wires using the supplied wire labels as you disconnect them.
Separate Wall Plate from new thermostat
Remove wallplate from the new thermostat and mount onto wall.

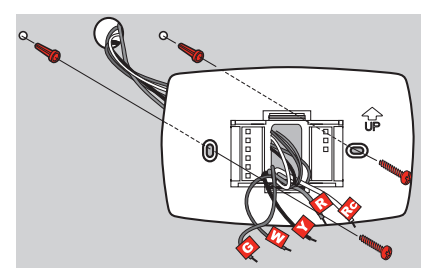

Mount Wallplate
Mount the new wallplate using the included screws and anchors.
-
- Drill 3/16-in. holes for drywall
- Drill 3/32-in. holes for plaster
Connect Wires
Simply match wire labels.
- Remove metal jumper if you have both R and Rc wires.
- Labels don’t match?
- Have a Heat Pump system?
- We are here to help.
- Call 1-800-468-1502 for wiring assistance.

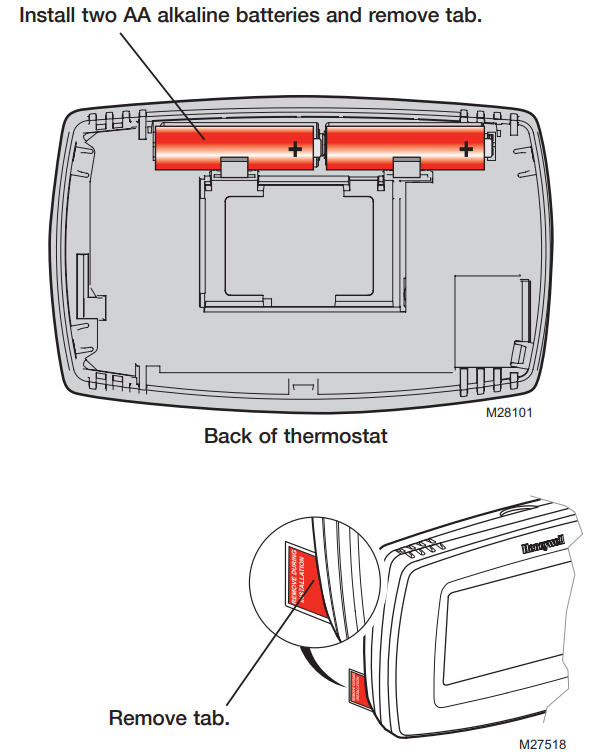

Install Batteries

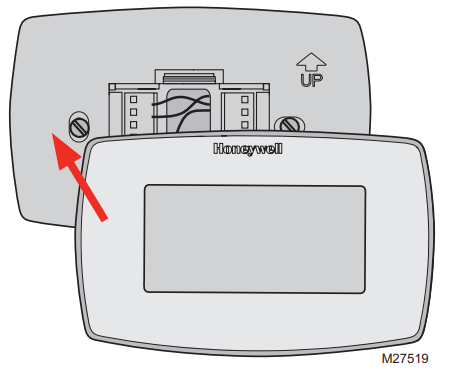

Install Thermostat onto Wallplate
Install thermostat onto the wallplate on the wall.
Turn Power Back On
Turn the power back on to the heating/cooling system.

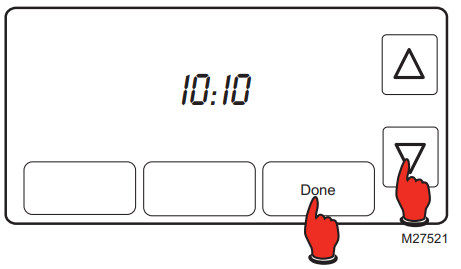

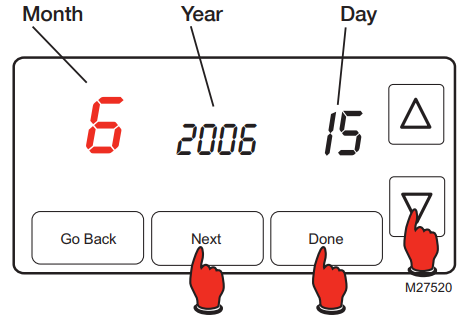

Set Time and Date
- Press
t to set month, then press NEXT. - Press t to set day, then press NEXT.
- Press t to set year, then press DONE.
- Press t to set time, then press DONE to save and exit.
If your system type is…
If your system type is:
- Single Stage Heat and Cool
- Congratulations, you’re done!
- If your system type is:
- Multistage Heat and Cool
- Heat Pump* without Backup Heat
- Heat Pump* with Backup Heat
- Heat Only
- Cool Only
Continue with advanced installation on next page to match your thermostat to your sys-tem type. *Heat Pump—an air conditioner that provides cooling in the summer, and also runs in reverse in the winter to provide heating. If you are not sure of your system type or if you have other questions, call us toll-free at 1-800-468-1502. This thermostat works on 24 volt or 750 mV systems. It will NOT work on 120/240 Volt systems.

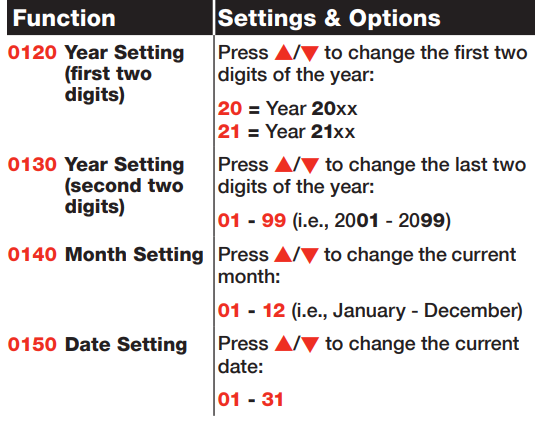

System set up

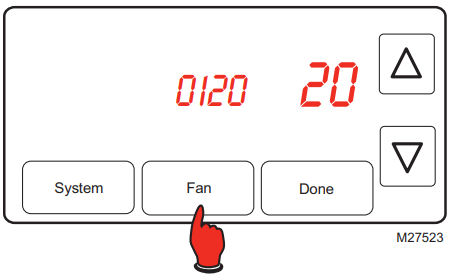

- Step 1 Press and release the left button.
- Step 2 Press and hold the center button until the screen changes (approximately 5 seconds).

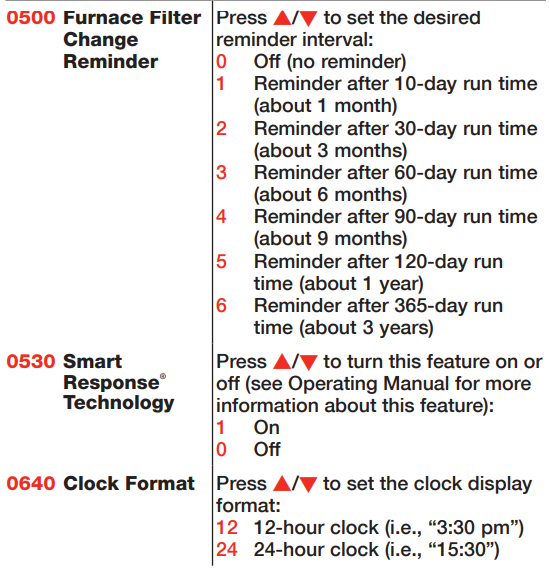

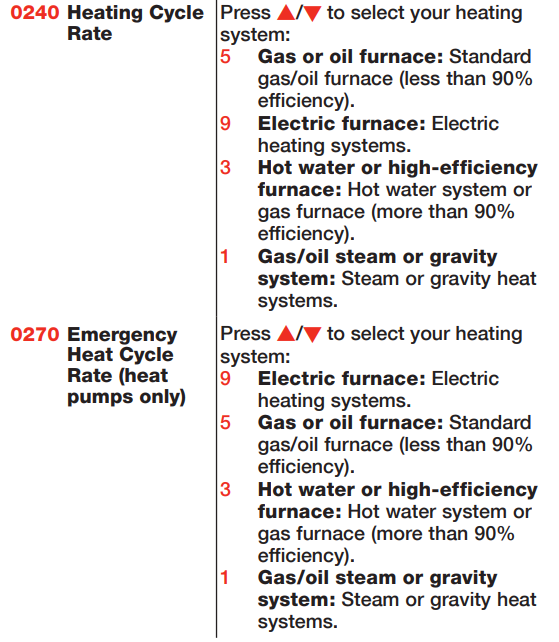

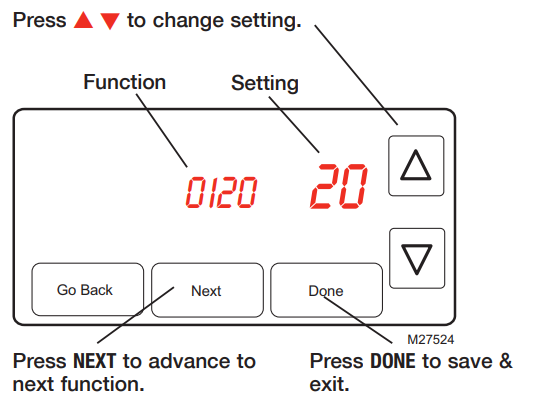

Changing settings to change Function Settings. Press s t to change setting.

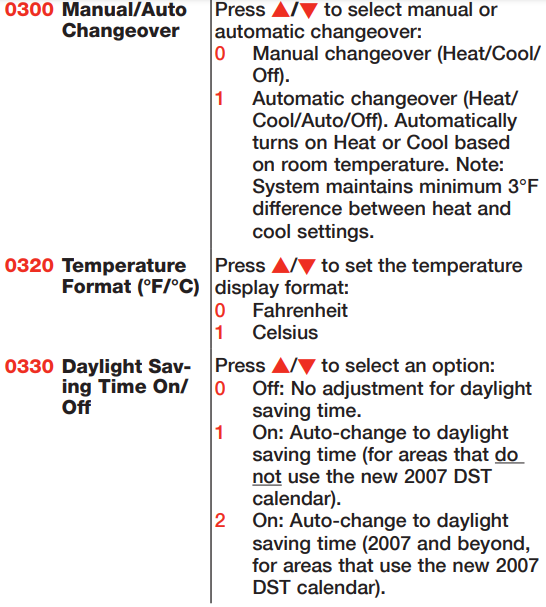

System set up

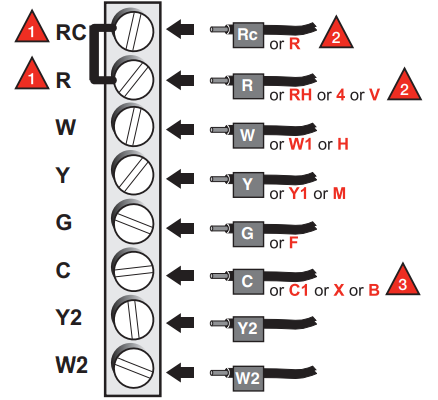

Wiring conventional system
Alternate wiring (conventional systems)
If labels do not match terminals, connect wires as shown here (see notes, below).
- Remove metal jumper connecting R and Rc only if you must connect both R and Rc wires.
- If your old thermostat had both R and RH wires, remove metal jumper. Connect the R wire to the Rc terminal, and the RH wire to the R terminal.
- If your old thermostat had only 1 C or C1 wire, connect it to the C terminal. If your old thermostat had 2 C or C1 wires, wrap each separately with electrical tape and do not connect them.

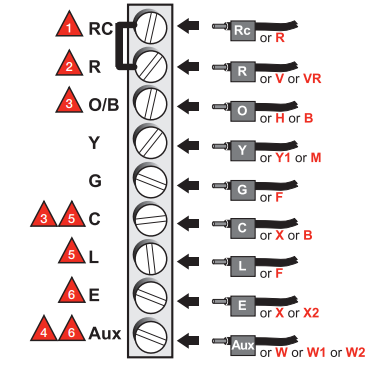

Connect wires: Heat Pump
- Match each labeled wire with same letter on new thermostat.
- Use a screwdriver to loosen screws, insert wires into hole, then tighten screws.
- If E and Aux do not each have a wire connected, use a small piece of wire to connect them to each other.
- Push any excess wire back into the wall opening.
Labels don’t match?
If labels do not match letters on thermostat.
Alternate wiring (for heat pumps only)
- Leave metal jumper in place, connecting R & Rc terminals.
- If your old thermostat had both V and VR wires, stop now and contact a qualified contractor for help.
- If your old thermostat had separate O and B wires, attach the B wire to the C terminal. If another wire is attached to the C terminal, stop now and contact a qualified contractor for help.
- If your old thermostat had Y1, W1 and W2 wires, stop now and contact a qualified contractor for help.
- If L terminal is used, C terminal wire must be connected (contact a contractor if there is no C wire).
- If E and Aux terminals do not each have a wire connected, use a small piece of wire to connect them to each other.
Troubleshooting
If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.
- The display is blank : Make sure fresh AA alkaline batteries are properly installed .

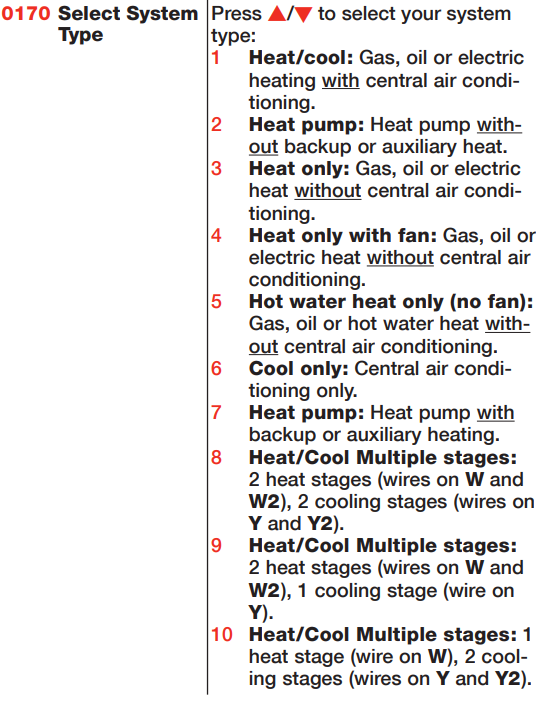

- Cannot change system setting to Cool: Check Function 0170: System Type to make sure it is set to match your heating and cooling equipment.
- The fan does not turn on when heat is required: Check Function 0180: Heating Fan Control to make sure it is set to match your heating equipment.
- The heating system is running in cool mode: Check Function 0170: System Type to make sure it is set to match your heating and cooling equipment.
- Red light is on :If the thermostat is in Emergency Heat mode the red light is normal. It shows that the thermostat is in emergency heat mode. If the thermostat is not in Emergency Heat mode, contact a qualified service contractor for repair.
- The heating or cooling system does not respond: Press SYSTEM to set system to Heat. Make sure the temperature is set higher than the Inside temperature. Press SYSTEM to set system to Cool. Make sure the temperature is set lower than the Inside temperature. Check circuit breaker and reset if necessary. Make sure power switch at heating & cooling system is on. Make sure furnace door is closed securely. Wait 5 minutes for the system to respond.
- “Wait” appears on the screen: Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor.
- Heat pump issues cool air in heat mode, or warm air in cool mode Check Function 0190: Heat Pump Changeover Valve to make sure it is properly configured for your system.
Customer Assistance
For assistance with this product, please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502
We are here to help.
Call 1-800-468-1502 for wiring assistance before returning the thermostat to the store.
warranty
1-year limited warranty
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period, the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option). If the product is defective,
- return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
- call Honeywell Customer Care at 1-800-468-1502.
Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you. This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage that occurred while the product was in the possession of a consumer. Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/ Honeywell Limitée, 35 Dynamic Drive, Toronto, Ontario M1V4Z9. This thermostat contains a Lithium battery which may contain Perchlorate material. Perchlorate Material—special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate
