Honeywell RTH6300B Programmable Thermostat Operating Manual

Honeywell RTH6300B Programmable Thermostat

Quick Reference Card
Grasp and pull to see basic operating instructions at a glance.

Battery Holder
Press down and pull to remove the batteries. Batteries should be replaced once a year (see page 15)

Need Help
For assistance with this product please visit www.honeywell.com/yourhome or call Honeywell Customer Care toll-free at 1-800-468-1502 This thermostat is ready to go! Your new thermostat is preprogrammed
and ready to go. See page 3 to check the settings

About your new thermostat

Congratulations on the purchase of your new Honeywell thermostat. It has been designed to give you many years of reliable service and easy-to-use, push-button climate control.

Features

• Separately programmable weekday/weekend schedules.
• One-touch temp control overrides the program schedule at any time.
•  EnergyStar® compliant to greatly reduce your heating/cooling expenses.
•  The large, clear, backlit display is easy to read — even in the dark.
•  Displays both room temperature and temperature setting.
•  Removable battery holder for fast, easy replacement.
•  Built-in compressor protection

This thermostat is ready to go!
Your new thermostat is pre-programmed and ready to go. All you have to do is set the time and day. Then check the settings below and change them if needed:

1. Set time and day (required for proper operation)………………………….. See page 6
2.  Select fan setting (Auto/On): Preset to Auto …………………. To change, see page 7
3.  Select system setting (Heat/Cool): Preset to Heat ………….. To change, see page 8
4.  Program schedules: Preset to energy-saving levels while you’re at work or asleep (assumes you wake at 6 am, leave at 8 am, return at 6 pm, and go to bed at 10 pm) ……………………………………….To change, see pages 9-11

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and manually adjust the temperature (see pages 12-13

A quick reference to controls



A quick reference to the display screen



Set the time and day

1. Press the SET CLOCK/DAY/SCHEDULE button, then press or to set the clock time.
2. Press the SET DAY button, then press or to select the day of the week.
3. Press DONE to save & exit.

Note: If the SET CLOCK/DAY/SCHEDULE option is not displayed, press DONE or RUN SCHEDULE.
Note: If the display flashes Set Clock, the thermostat will follow your settings for the weekday “Wake” time period until you reset the time and day.

Select the fan setting



Press the FAN button to select Auto or On. In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on. If set to “On,” the fan runs continuously. Use this setting for improved air circulation, or for more efficient air cleaning.

Select the system setting

Press the SYSTEM button to select Heat, Cool, or Off.

• Heat: The thermostat controls only the heating system.
• Cool: The thermostat controls only the cooling system.
•  Off: Heating and cooling systems are off.

CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do not operate the cooling system when the outdoor temperature is below 50°F (10°C).

Save money by setting program schedules

It’s easy to program your system for maximum energy savings. You can program four time periods each day, with different settings for weekdays and weekends



• Set to the time you awaken and the temperature you want during the morning, until you leave for the day.
• Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).
• Set to the time you return home and the temperature you want during the evening, until bedtime.
• Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level)

EnergyStar® settings for maximum cost savings
This thermostat is pre-set to use EnergyStar® program settings. We recommend these settings since they can reduce your heating/cooling expenses by as much as 33%. (See next page to adjust times and temperatures of each time period.)

To adjust program schedules

1. Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE.
2. Press or to set your weekday Wake time (Mon-Fri), then press NEXT.
3. Press or to set the temperature for this time period, then press NEXT.
4. Set time and temperature for the next time period (Leave). Repeat steps 2 and 3 for each weekday time period.
5. Press NEXT to set weekend time periods (Sat-Sun), then press DONE to save & exit.

Note: Make sure the thermostat is set to the system you want to program (Heat or Cool).
Note: You can press CANCEL PERIOD to eliminate unwanted time periods (except Wake).

Program schedule override (temporary)



Press or to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period. The new temperature will be maintained only until the next programmed time period begins (see page 10). For example, if you want to turn up the heat early in the morning, it will automatically be lowered later, when you leave for the day. To cancel the temporary setting at any time, press RUN SCHEDULE

Program schedule override (permanent)



Press HOLD to permanently adjust the temperature. This will override the temperature settings for all time periods. The “Hold” feature turns off the program schedule and allows you to adjust the thermostat manually, as needed. Whatever temperature you set will be maintained 24 hours a day, until you manually change it, or press RUN SCHEDULE to cancel “Hold” and resume the programmed schedule.

Built-in compressor protection

This feature helps prevent damage to the compressor in your air conditioning or heat pump system. Damage can occur if the compressor is re-started too soon after shutdown. This feature forces the compressor to wait for a few minutes before restarting. During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump). When the safe wait time has elapsed, the message stops flashing and the compressor turns on.

Battery replacement

Install fresh batteries immediately when the REPLACE BATTERY warning begins flashing. The warning flashes about two months before the batteries are depleted. Even if the warning does not appear, you should replace batteries once a year, or before leaving home for more than a month. If batteries are inserted within two minutes, the time and day will not have to be reset. All other settings are permanently stored in memory and do not require battery power

In case of difficulty
If you have difficulty with your thermostat, please try the suggestions below. Most problems can be corrected quickly and easily. The display is blank • Make sure fresh AA alkaline batteries are correctly installed
(see page 15).

Temperature settings do not change
Make sure heating and cooling temperatures are set to acceptable ranges:

• Heat: 40° to 90°F (4.5° to 32°C).
• Cool: 50° to 99°F (10° to 37°C).

To restore Energy Star® default settings
Follow these steps to restore Energy Star default settings (see page 10):

1. Press SET CLOCK/DAY/SCHEDULE.
2. Press SET SCHEDULE.
3. Press DONE and NEXT at the same time for 4 seconds.

In case of difficulty

The heating or cooling system does not respond

• Press the SYSTEM button to set the system to Heat. Make sure the temperature is set higher than the Inside temperature.
• Press the SYSTEM button to set the system to Cool. Make sure the temperature is set lower than the Inside temperature.
• Check the circuit breaker and reset if necessary.
• Make sure the power switch at the heating & cooling system is on.
• Make sure the furnace door is closed securely.
• Wait 5 minutes for the system to respond.

In case of difficulty “Cool On” or “Heat On” is flashing
The compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor (see page 14). Other problems • If the above measures do not resolve the problem, check the In Case of Difficulty section in your thermostat Installation Guide.

Customer Assistance

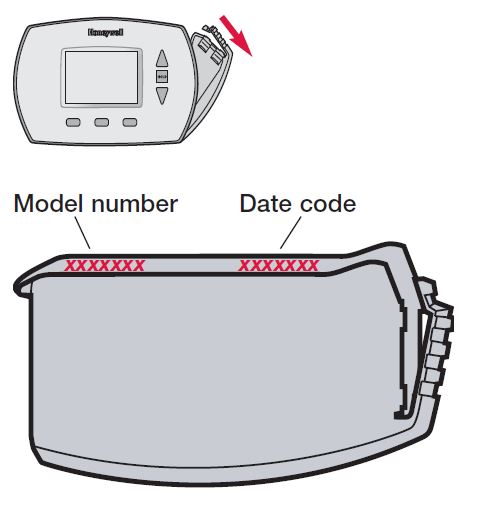

For assistance with this product, please visit www.honeywell.com/yourhome. Or call Honeywell Customer Care toll-free at 1-800-468-1502. To save time, please remove the battery holder and note your model number and date code before calling.

Accessories/replacement parts
To order, please call Honeywell Customer
Care toll-free at 1-800-468-1502.
Battery holder………………….Part No. 50007072-001
Cover plate assembly ……..Part No. 50002883-001
(Use to cover marks left by old thermostats.)

Limited 1-year warranty

Honeywell warrants this product, excluding the battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period, the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option). If the product is defective,

1. return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
2. call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr.N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.

Honeywell warrants this product, excluding the battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period, the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option). If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination of whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr.N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468- 1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/ Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V4Z9.

Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422 Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Scarborough, Ontario M1V 4Z9 U.S. Registered Trademark. Patents pending. Copyright © 2005 Honeywell International Inc. All rights reserved. Printed in U.S. Document number 69-1723. Date 01-2005.
