Honeywell Home MS3000 Electronic PROGRAMMABLE THERMOSTAT User Guide

Honeywell Home MS3000 Electronic PROGRAMMABLE THERMOSTAT

Features

SIMPLE PROGRAMMING

It’s easy to program the thermostat to fit your lifestyle.

1. Move the power switch to ON.
2. Hold MODE key until 12:00 AM shows in display.
3. Use SLOW key to set the time of your first program. Hold to go forward; tap to go back.
4. Use HEAT and COOL keys to set temperatures for your first program. For heat, hold HEAT key to go higher, tap to go lower. For air conditioning, hold COOL to go lower, tap to go higher.
5. Set all other programs by repeating steps 3 & 4. Press MODE to lock in for all 7 days.
6. Hold MODE until SET CLOCK shows in display. Use FAST, then SLOW to move to current time and day. (Clock only accurate to within 10 minutes. ) Tap MODE to lock in (temperature and set point indicators will appear).
7. To review programs, hold FAST or SLOW key.

QUICK REFERENCE TO THE KEYS

• Use to program heating temperatures. To raise the temperature by 2° increments, press and hold the key. To lower the temperature, tap the key.
• Use to program air conditioning temperatures. To lower the temperature by 2° increments, press and hold the key. To raise the temperature, tap the key.
• ON allows for thermostat operation. OFF erases any program and disables the furnace and air conditioner.
• AUTO sets the fan to turn on and off with the heating or air conditioning system. the fan to run continuously. (Applicable only to systems with more than 2wire.

Before the thermostat is programmed, holding this key sequences through
PROGRAM and SET CLOCK. After the thermostat is programmed, holding this key Mode sequences through the 4 functions; release when the desired function is reached. The four functions include:

• PROGRAM—allows you to program the heating and cooling temperature points, at 2 to 6 different times per day, for each day of the week.
• SET CLOCK—allows you to enter the current time to within 10 minutes.
• HOLD—allows you to set and hold one temperature until you choose to change it. This feature can be used only after the thermostat has been programmed.
• HOLD UNTIL—allows you to set and hold one temperature for up to a week; it will return to your normal schedule at a time and day you set. This feature can be used only after the thermostat has been programmed.
  Tapping the Mode key interrupts function sequencing, and returns to display of the present room temperature.
• fast: When in SET CLOCK mode, hold key to advance clock time in 4-hour increments. To stop the clock backward by 4-hour increments, tap the key.
• When in PROGRAM mode, use to review entered programs. Hold key to advance to the next programmed temperature range; tap to back up.
• slow when in SET CLOCK mode, hold key to advance clock time in 10-minute increments. To step the clock backward by 10-minute increments, tap the key.
  When in PROGRAM mode, hold key to advance program time in 30-minute increments. To step the time backward by 30-minute increments, tap the key.

Installing

PROGRAMMING YOUR THERMOSTAT

You may program this thermostat either before or after installation. See installation manual form number 69-8025 for installation instructions.
If you are programming the thermostat before installation, be sure the battery is installed (see page 4). During programming, if you leave the thermostat for a few minutes, it will go blank to save battery power. This does not affect your program; hold HEAT key to relight the display.

STEP 1 SET THE PROGRAM SCHEDULE AND TEMPERATURES

Before you begin… The schedule form on page 31 provides an opportunity to plan your schedule. Please fill it out before you begin.
Open right-hand door of thermostat. Switch to OFF to clear the thermostat.
Switch ON. The display shows this test position.
A few seconds later, the display looks like this.

To begin programming, press and hold until the display looks like this. If you pass this display, ‘ode continue to hold key until this display comes back.
NOTE: All seven day indicators are onto tell you that you are programming every day of the week the same. You will be able to change individual days later.
To set the first-time program, press and hold until the display shows the time you want to wake up (6:00 “ ow AM shown).
The time advances in 30-minute intervals. You can back up by tapping the key; go forward by holding the key.

• HEAT: To set the first temperature program, press and hold until the display shows the temperature you want when you wake up during the heating season (72° Heat shown) . You can back up by tapping the key.
  The LEFT temperature set point indicator should be stopped under the heating temperature you desire when you wake up, with a maximum of 80° F.
• COOL: If you have air conditioning, press and hold until the display shows the temperature you want when you wake up during the cooling season (76° shown). Your can back up by tapping the key. You must have a 6° or greater difference between heat and cool temperature settings

The RIGHT temperature set point indicator should be stopped under the cooling temperature you desire when you wake up, with a minimum of 62° F.
To set additional program times and temperatures, repeat steps starting on lower half of page 7 through here. First set a time, then enter the heating and cooling temperatures desired at that time.
You must set at least one more time/temperature schedule, and may set up to a total of 6 per day. They must be at at least 30 minutes apart.

MODE

After programming is complete, hoId to lock in place. It is now copied into all 7 days of the. week. If YOU want different programs for different days.

STEP 2 SET THE CURRENT DAY AND TfME

Now you will set the current day and time of day.

• MODE: Press until the display looks like this.
• FAST: Press until you reach the correct day (Wednesday shown) and approximately the correct time, within 4 ‘last hours. (Hold the key to advance the time in 4-hour increments, and tap the key to back up. )
• Press until you reach the exact time, within 10 minutes. (Hold the key to advance the time in 10- o-minute increments, and tap the key to back up. )
• Tap to store the time and date in the thermostat’s Mode memory. The normal room temperature display will return.

STEP 3 CHECK YOUR SETTINGS

• Press until the PROGRAM shows in the display.
• Press to review each program you have set.
• Press until normal temperature display returns.

STEP 4 OPTION-ADDING AN EXTRA NIGHTTIME SET POINT

If you have not used all 6 set points in any given day, consider programming a second nighttime set point.
For example, if your regular bedtime is 10:30 p.m., put in a 1:00 a.m. set point that is the same temperature as the 10:30 p.m. set point. The entry of the second set point ensures that even if you stay up past your bedtime and override your program, you won’t have to remember to set the thermostat back when you go to bed.

STEP 5 SET THE FAN SWITCH

• FAN AUTO: Normal or energy-saving setting for most homes. The fan goes on and off with the air conditioner in summer. In winter, the fan on most systems starts a few minutes after the furnace comes on. tt stops a few minutes after the furnace goes off. The fan starts and stops with the furnace in some electric heat systems.
• FAN ON: The fan runs continuously. Use for improved air circulation during special occasions or for more efficient electronic air cleaning.

CHANGING YOUR PROGRAM

MAKING PERMANENT PROGRAM CHANGES

• Press until the display shows PROGRAM.

• Press to review programs; notice the day of the week indicator position change as you review the programs. When the day and time you want to change are displayed, release.
• To erase a program, hold both buttons down until set point indicators disappear.
• Display new time by holding (to advance) or tapping (to back up).
• Hold to set heating and cooling set points.
• Verify change by holding (to advance) or tapping (to back up).
  Repeat steps on pages 15-17 until all changes you want are made.
• Tap to store the changes in the thermostat’s memory.

ERASING THE ENTIRE PROGRAM

To erase the existing program completely, turn the power switch OFF…..then ON

Until you reprogram (see page 5), a factory-installed program will operate the heating system at 68° F, and the cooling system at 78° F.

MAKING TEMPORARY PROGRAM CHANGES

The “short-term hold” feature lets you custom-tailor the program for those times when someone comes home early, or you’re staying up late, or you plan to be out for the evening.
To temporarily raise or lower the temperature for the current period only:

• Press to change the heating or cooling set point (shown with the heat setting holding at 62°). This change will stay in effect only until the next scheduled program change.
  The “long-term hold” feature is particularly useful when you go on vacation or other extended absences. It ~ does not cancel your program.
• Press and hold until the display shows HOLD.
• Tap or hold until temperature indicators show the range at which you want the thermostat to maintain the heating and cooling temperatures.
• To cancel HOLD, press and hold until HOLD disappears from the display. Continue to hold until you see the normal room temperature display
  Your regular program will resume at the next programmed time.
  The “HOLD UNTIL” feature holds the temperature range for up to a week, and then cancels it, returning control to your program so your home is at the comfort level you want when you return.
• Press until HOLD UNTIL is displayed
• Use to change heating and cooling set points as desired (shown with heat setting holding at 62).
• Press and hold to step through your weekly program until you reach the day and time at which you want the thermostat to resume normal programmed operation (shown holding until 10:30 PM 011 Sunday).
• Press once,
• To cancel HOLD UNTIL early, hold key until the display cycles through the various displays. Release Mode the key when it cycles to the normal display of room temperature.
  Your regular program will resume at the next programmed time.

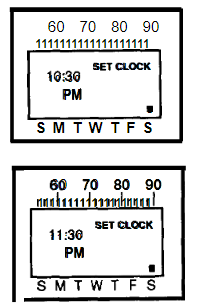

CHANGING FOR DAYLIGHT-SAVING OR STANDARD TIME

• To move the clock ahead an hour in spring, hold key until SET CLOCK shows.
• Press and hold until clock advances 1 hour.
• Tap to lock in change.
• To move the clock back one hour in the fall, hold the key until SET CLOCK shows.
• Tap 6 times to back up the clock by one hour.
• Tap to lock in change.

MAINTAINING YOUR THERMOSTAT

REPLACING THE BATTERY

Your thermostat uses a 9 V alkaline battery as a backup to hold the program in case of a power outage. For best results, replace the battery every 5 years.
To replace:

• Open the right-hand thermostat door.
• Remove the battery from the battery holder and battery connector.
• Press the battery connector onto a fresh 9 V alkaline battery. Place the battery in the battery holder as shown.

RECALIBRATING THE THERMOSTAT

Your thermostat should normally display the correct room temperature. In the rare event ofaninmrred display, the thermostat can be recalibrated as follows:

• Make sure the thermostat has been on for at least 2 hours.
• Place an accurate room thermometer near the left side of the thermostat. Be careful not to touch the thermometer or breathe on it.
• Open the left door of the thermostat.
• Locate the temperature adjustment screw.
• use a flat blade screwdriver to turn the screw slightly clockwise to increase, or counterclockwiseto decrease the indicated temperature.
• After each turn, allow the thermostat to stabilize for about 30 seconds.
• Continue this procedure until the thermostat has the same temperature reading as the room thermometer.

THE “WAITING” INDICATOR DURING AIR CONDITIONING
To prevent possible damage to your compressor, and to maximize the efficiency of your air conditioning system, no controls can be activated for approximately 6 minutes after the compressor shuts off. If you try to override the temperature during this time, the display will show WAITING until the 6 minutes pass.

YOUR PERSONAL PROGRAM

Use the table below to plan your schedule before you begin programming. If you are programming a different schedule for each day of the week, fill an out-a different table for each day.

Typical Activitya	Your Start Time	Desired Temperatureb
		Heating	Cooling
Wake up
Leave home
Arrive home
After dinner
Retire
Extra Nighttime Set Point (see page 13)

• you may program between 2 and 6 typical activity times.
• You may program up to 8 different heating/cooling temperature combinations over the duration of a week.

TROUBLESHOOTING GUIDE

• IF…
  • The thermostat loses its program.

  • The thermostat shows no display unless the HEAT or COOL key is held.
• THEN…
  • Check for loose batteries.
  • Check that the power switch is ON.
  • Check that the power switch is ON.
  • Check main switches, fuses, and circuit breakers on heating equipment to make sure the thermostat has power. The heating control circuit powers the thermostat even when it is controlling air conditioning equipment.
  • Check the wiring connections to the thermostat.
  • Make sure your system uses 24 Vat. The thermostat will not operate on a millivolt system.
  • Jumper RC & Y or RH & W. If the system comes on, the thermostat needs replacement. If the system does not come on, a problem exists in the system (such as a transformer, relay, or valve).
• IF…
  • The display goes blank less than 30 seconds before or after a furnace burn cycle.
  • The display goes blank for several minutes during a long furnace burn cycle.
  • The temperature display is incorrect
  • The furnace or air conditioner operates continuously.
  • The thermostat will not turn the heat or air conditioner on.
  • The thermostat will not let you make a temperature setting.
  • The thermostat will not let you make a temperature setting.
  • The thermostat is not following your program but is maintaining a constant temperature.
• THEN…
  • Your furnace is interrupting power to the thermostat. This is not a problem, as the 9 V alkaline battery will be adequate to carry the program for the entire heating season. Do NOT use a rechargeable battery.
  • Check for dirty air filters or blocked registers. If registers are not blocked and the air filter is clean, an isolating relay probably needs to be installed on your heating system. See Table 1 in the installation manual, form number 69-8025.
  • See “Recalibrating the Thermostat.
  • Check the thermostat to see if it is wired properly.
  • Check the furnace and air conditioning systems to make sure they are operating correctly.
  • Check the circuit breaker on the heater or air conditioner to make sure it has power.
  • Check that the pilot light/power is on; this thermostat “steals” power from the heating circuit.
  • Verify wiring.
  • Check if you have already made 6 settings. Check if you have already made 6 settings. A thermostat will not accept a seventh setting.
  • Check if you have used all 8 available temperature combinations. A maximum of 8 heating and cooling combinations are allowed in total in your weekly program. The thermostat will not accept a ninth combination.
    (Use the programming chart on page 31 to make sure you do not use any more settings or combinations than allowed.).
  • Your program has probably been lost. The thermostat will maintain the factory-set program (68° heat, 78° cool) until you reenter a new program.

IF ADDITIONAL ASSISTANCE IS NEEDED, CALL HONEYWELL CONSUMER AFFAIRS AT 1-800-468-1502, MONDAY-FRIDAY, 7:30 a.m. -4:OO p.m., CENTRAL TIME.

RELAY ORDERING INFORMATION

Send orders to: Honeywell Inc., Consumer Affairs MNIW1 462, 1885 Douglas Dr. N., Golden Valley, MN 55422-3992.

Parl No.		Price Ea.	Shipping/ Handling	Quantity	Total          1 Price
	Kit	$10	$3.00
MS101Q	Isolating Relay       V Transformer Kit	$20
			Subtotal
			Your  sales tax
			Total

Toll-free Installation and Programming Assistance
For all questions concerning this thermostat, please read and follow the instructions. If additional assistance is needed, call our toll-free Consumer Affairs group number at 1-800-468- 1502, Monday-Friday, 7:30 a.m. -4:00 p.m., Central time.

NOTICE
This equipment is a Class B digital apparatus that complies with Canadian Radio Interference Regulations, CRC c.1374.
This thermostat is manufactured under one or more of the following patents; U.S. Patent No 4,172,555; RE32,960; 4,314,665; 4,335,847; 4,356,962. Other Patents Pending.

Limited One-Year Warranty

Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If, at any time during the warranty period, the product is defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option) within a reasonable period of time. If the product is defective,

1. return it, with a bill of sale or other dated proof of purchase, to the retailer from which you purchased it, or
2.  package it carefully, along with proof of purchase (including date of purchase) and a short description of the malfunction, and mail it, postage prepaid, to the following address:
   • Honeywell USA
   • Dock 4  MN10-3860
   • 1885 Douglas Drive North Golden Valley, MN 55422-3992
   • Honeywell Canada:
   • Honeywell Limited/Honeywell Limitée 35 Dynamic Drive
   • Scarborough, Ontario M1V 4Z9

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer.

Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1885 Douglas Dr. N., Golden Valley, MN 55422-3992. In Canada, write Retail Products ON30 Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.

Automation and Control Solutions Honeywell 1985 Douglas Drive North Golden Valley, MN 55422  Honeywell Limited-Honeywell Limitée 35 Dynamic Drive Scarborough, Ontario M1V 4Z9 Printed in U.S.A. on recycled paper containing at least 10% post-consumer paper fibers. www.honeywell.com/yourhome
