Honeywell FocusPro 6000 Series Programmable Thermostat
Wallplate installation
Remove the wallplate from the thermostat, then follow the directions below for mounting.
- Remove the battery holder.
- Pull here to remove the wallplate from the new thermostat.
- Pull wires through the wire hole.
- Position the wallplate on the wall, level, and mark hole positions with a pencil.
- Drill holes at marked positions as shown below, then tap in supplied wall anchors.
- Place wallplate over anchors, and insert and tighten mounting screws.
- Insert reference card.
Power options

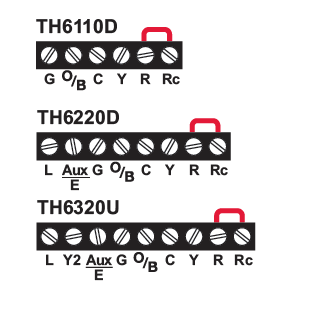

Wiring terminal designations
Shaded areas below apply only to TH6320U/TH6220D or as otherwise noted.
Conventional Terminals
- Rc 24VAC power from cooling transformer
- R 24VAC power from the heating transformer
- W Heat relay (stage 1)
- W2 Heat relay (stage 2)
- Y Compressor contactor (stage 1)
- Y2 Compressor contactor (stage 2)
- G Fan relay
- C 24VAC common. For 2 transformer systems, use common wire from the cooling transformer
Heat Pump Terminals
- Rc 24VAC power from the cooling transformer
- R 24VAC power from the heating transformer
- O/B Changeover valve
- Y Compressor contactor
- Y2 Compressor contactor (stage 2)
- -TH6320U only
- G Fan relay
- Aux/E Auxiliary/Emergency heat relay
- L Sends output when set to Em. Heat
- C 24VAC common
Wiring conventional systems
Shaded areas below apply only to TH6320U/TH6220D or as otherwise noted.
1H/1C System
(1 transformer)
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor
- C 24VAC common [3]
- W Heat relay
- G Fan relay
Heat-only System
- Rc Power [1]
- R [R+Rc joined by jumper]
- C 24VAC common [3]
- W Heat relay
Heat-only System
- (Series 20) [5]
- Rc [R+Rc joined by jumper]
- R Series 20 valve terminal “R” [1]
- Y Series 20 valve terminal “W”
- C 24VAC common [3]
- W Series 20 valve terminal “B”
Heat-only System (normally open zone
- valve) [5]
- Rc [R+Rc joined by jumper]
- R Power [1]
- Y Normally open zone valve
- C 24VAC common [3]
1H/1C System (2 transformers)
- Rc Power (cooling transformer) [1, 2]
- R Power (heating transformer) [1, 2]
- Y Compressor contactor
- C 24VAC common [3, 4]
- W Heat relay
- G Fan relay
Heat-only System with Fan
- Rc Power [1]
- R [R+Rc joined by jumper]
- C 24VAC common [3]
- W Heat relay
- G Fan relay
Cool-only System
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor
- C 24VAC common [3]
- G Fan relay
2H/2C System
- (1 transformer) [6]
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor (stage 1)
- C 24VAC common [3]
- W Heat relay (stage 1)
- G Fan relay
- W2 Heat relay (stage 2)
- Y2 Compressor contactor (stage 2)
2H/2C System
- (2 transformers) [6]
- Rc Power (cooling transformer) [1, 2]
- R Power (heating transformer) [1, 2]
- Y Compressor contactor (stage 1)
- C 24VAC common [3, 4]
- W Heat relay (stage 1)
- G Fan relay
- W2 Heat relay (stage 2)
- Y2 Compressor contactor (stage 2)
NOTES
Wire specifications:
Use 18- to 22-gauge thermostat wire. A shielded cable is not required.
- Power supply. Provide disconnect means and overload protection as required.
- Remove jumper for 2-transformer systems.
- Optional 24VAC common connection.
- The common connection must come from the cooling transformer.
- In Installer Setup, set the system type to Heat Only.
- In Installer Setup, set the system type to 2Heat/2Cool Conventional.
- In Installer Setup, set the changeover valve to O or B.
- In Installer Setup, set the system type to 2Heat/1Cool Heat Pump.
- In Installer Setup, set the system type to 2Heat/2Cool Heat Pump.
- Installer Setup set system type to 3Heat/2Cool Heat Pump.
- L terminal sends a continuous output when the thermostat is set to Em. Heat. Connect to Honeywell, zoning panels to switch the panel to Emergency Heat.
Wiring heat pump systems
Shaded areas below apply only to TH6320U/TH6220D or as otherwise noted.
1H/1C Heat Pump System
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor
- C 24VAC common [3]
- O/B Changeover valve [7]
- G Fan relay
2H/1C Heat Pump System (TH6220D only) [8]
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor
- C 24VAC common [3]
- O/B Changeover valve [7]
- G Fan relay
- Aux/E Auxiliary/Emergency heat relay
- L Sends output when set to Em. Heat [11]
2H/1C Heat Pum System (TH6320U only) [8]
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor
- C 24VAC common [3]
- O/B Changeover valve [7]
- G Fan relay
- Aux/E Auxiliary/Emergency heat relay
- L Sends output when set to Em. Heat [11]
2H/2C Heat Pump System (TH6320U only) [9]
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor (stage 1)
- C 24VAC common [3]
- O/B Changeover valve [7]
- G Fan relay
- Y2 Compressor contactor (stage 2)
- L Sends output when set to Em. Heat [11]
3H/2C Heat Pump System (TH6320U only) [10]
- Rc Power [1]
- R [R+Rc joined by jumper]
- Y Compressor contactor (stage 1)
- C 24VAC common [3]
- O/B Changeover valve [7]
- G Fan relay
- Aux/E Auxiliary/Emergency heat relay
- Y2 Compressor contactor (stage 2)
- L Sends output when set to Em. Heat [11]
Thermostat mounting
- Push excess wire back into the wall opening.
- Plug the wall opening with non-flammable insulation.
- Align the 4 tabs on the wallplate with the corresponding slots on the back of the thermostat.
- Push gently until the thermostat snaps in place.
Installer setup
Follow the procedure below to configure the thermostat to match the installed heating/cooling system, and customize feature operation as desired.
- To begin, press and hold the
FAN buttons until the display changes. - Press or
change settings. - Press NEXT to advance to the next function.
- Press DONE to exit and save settings.
Setup function Settings & options (factory default in bold) Shaded areas below apply only to TH6320U/TH6220D or as otherwise noted.
| 9
10 |
Stage 1 compressor cycle rate (CPH)
Stage 2 compressor |
3
3 |
Recommended for most compressors
[Other cycle rate options: 1, 2, 4, 5 or 6 CPH] Recommended for most compressors |
| cycle rate (CPH) | [Other cycle rate options: 1, 2, 4, 5 or 6 CPH] | ||
| 12 | Manual/Auto | 0 | Manual changeover (Heat/Cool/Off) |
| changeover | 1 | Auto changeover (Heat/Cool/Auto/Off) | |
| 2 | Auto changeover only (Auto) | ||
| 13 | Adaptive Intelligent | 1 | On**See page 8 |
| Recovery™ | 0 | Off | |
| 14 | Temperature | 0 | Fahrenheit |
| display | 1 | Celsius | |
| 15 | Compressor protection | 5 | Five-minute compressor off time
[Other options: 0, 1, 2, 3 or 4-minute off time] |
| 16 | Schedule format | 0 | 5/2 (programmable weekdays and weekends) |
| 1 | 5/1/1 (weekdays, Saturday & Sunday programmable) | ||
| 26 | Auxiliary heat | 0 | Comfort |
| control | 1 | Economy | |
| 27 | Heat temperature range stops | 90 | Max. heat temperature setting is 90 °F (32 °C)
[Other options: 40 °F to 89 °F (4.5 °C to 31.5 °C)] |
| 28 | Cool temperature range stops | 50 | Min. cool temperature setting is 50 °F (10 °C)
[Other options: 51 °F to 99 °F (10.5 °C to 37 °C)] |
Special Function
Auto Changeover (Setup Function 12): When set to Auto, the thermostat automatically selects heating or cooling depending on the indoor temperature. The thermostat will automatically adjust the heat and cool settings to maintain a 3-degree separation (fixed). Note: If you select Auto Changeover Only, the System Setting on the thermostat will stay locked in the Auto position, preventing the user from changing it to Em Heat, Heat, Cool or Off.
Adaptive Intelligent Recovery™ (Setup Function 13): Allows the thermostat to “learn” how long the furnace and air conditioner take to reach programmed temperature settings, so the temperature is reached at the scheduled time.
Compressor Protection (Setup Function 15): Forces the compressor to wait a few minutes before restarting, to prevent damage. During the wait time, the message Cool On or Heat On (heat pumps only) will flash on the display.
Installer system test
- To begin, press and hold the s and t buttons until the display
- Press s / t to turn the system on/off.
- Press NEXT to advance to the next test
- Press DONE to terminate the system test
Specifications
Temperature Ranges
Heat: 40° to 90°F (4.5° to 32°C)
Cool: 50° to 99°F (10° to 37°C)
Operating Ambient Temperature
32° to 120°F (0° to 48.9°C)
Shipping Temperature
-20° to 120°F (-28.9° to 48.9°C)
Operating Relative Humidity
5% to 90% (non-condensing)
Physical Dimensions
3-9/16” H x 5-13/16” W x 1-1/2” D
91 mm H x 147 mm W x 38 mm D
Electrical Ratings
Terminal Voltage (50/60Hz) Running Current
- W Heating 20-30 Vac 0.02-1.0 A
- (Powerpile) 750 mV DC 100 mA DC
- W2 (Aux/E) Heating 20-30 Vac 0.02-1.0 A
- Y Cooling 20-30 Vac 0.02-1.0 A
- Y2 Cooling 20-30 Vac 0.02-1.0 A
- G Fan 20-30 Vac 0.02-0.5 A
- O/B Changeover 20-30 Vac 0.02-0.5 A
- L Output 20-30 Vac 0.02-0.5 A
Customer Assistance
For assistance with this product, please visit customer.honeywell.com. Or call Honeywell Customer Care toll-free at 1-800-468-1502.
CAUTION
EQUIPMENT DAMAGE HAZARD
Compressor protection is bypassed during testing. To prevent equipment damage, avoid cycling the compressor quickly.
CAUTION
ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.
CAUTION
MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not place the old control in the trash. Contact your local waste management authority for instructions regarding recycling and proper disposal.
