Honeywell Home T87N Range Stops
APPLICATION
Use the 50010944-001 range stops with the T87K, N thermostats to limit the minimum and maximum temperature settings.
The 50010944-001 contains two range stop scales and two #2-28 x 3/8 phillips pan head screws.
Fig. 1. Range stop and screws (Fahrenheit range).
Fig. 2. Range stop and screws (Celsius range).
INSTALLATION
- Set the thermostat to a temperature setting in the middle of the upper and lower range desired.
- Remove the thermostat from its base (if already attached).
- On the back of the thermostat, align the range stop with the holes on the back of the thermo-stat. See Fig. 3.
Fig. 3. Aligning range stop with thermostat. - Using the temperature markings on the range stop, insert supplied screws into the minimum and/or maximum range stop holes and tighten. Refer to Tables 1 and 2 for range stop tempera-tures. See Figs. 4 and 5.
- Mount the thermostat onto its base and set desired temperature. See Fig. 5.
°F °C 42 4 44 5 46 6.5 48 8 50 9 52 10 54 11 56 12 58 13 60 14.5 62 15.5 64 16.5 66 17.5 68 19 70 20 72 21 74 22.5 76 23.5 78 24.5 80 26 Table 2. High Limit Range Stop
°F °C 88 31 86 29.5 84 28 82 27.5 80 26 78 25 76 24 74 22.5 72 21.5 70 20 68 19 66 18 64 17 62 16 60 14.5

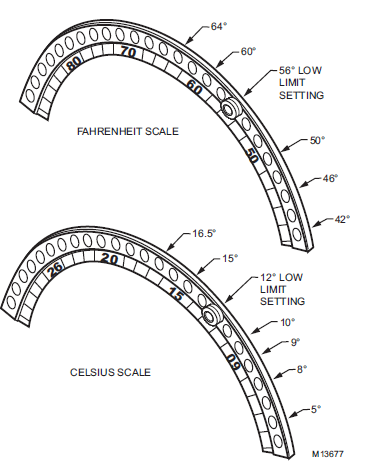

Fig. 4. Low-range stop settings.
Fig. 5. High-range stop settings.
