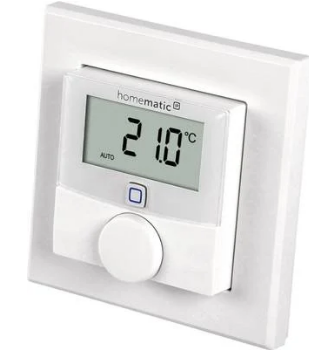

Homematic HmIP-WTH-2 Temperature Controller Room Thermostat
The wall thermostat provides for intelligent control of the temperature in a room – via the control wheel or smartphone app. Several radiator thermostats or floor heating circuits can be controlled in one room. The current temperature and humidity are displayed via the illuminated LC display.
INTELLIGENT CONTROL
Individual temperature profiles are easily created via app – with up to 3 adjustable heating profiles and 13 changes per day. The temperature is regulated automatically and the heating is only switched on if necessary.
The temperature can be precisely adjusted in steps of 0.5°C using the control wheel. With the boost function, rooms be heated up quickly at the push of a button.
Operation requires connection to one of the following solutions:
Stand-alone in connection with a wireless floor heating actuator (without Access Point, configuration directly via wall thermostat) Homematic IP Access Point with free smartphone app and free cloud service
Third-party solutions of partners.
TECHNICAL SPECIFICATIONS
- Supply voltage 2x 1.5 V LR03/micro/AAA
- Battery life 2 years (typ.)
- Degree of protection IP20
- Ambient temperature 0 to 35 °C
- Dimensions (W x H x D)
- Without frame:
- Including frame:
- 55 x 55 x 23.5 mm
- 86 x 86 x 25 mm
- Weight 100 g (including batteries)
- Radio frequency band 868.0-868.6 MHz 869.4-869.65 MHz
- Typ. open area RF range 250 m
FEATURES
ALWAYS HAVE THE TEMPERATURE IN SIGHT

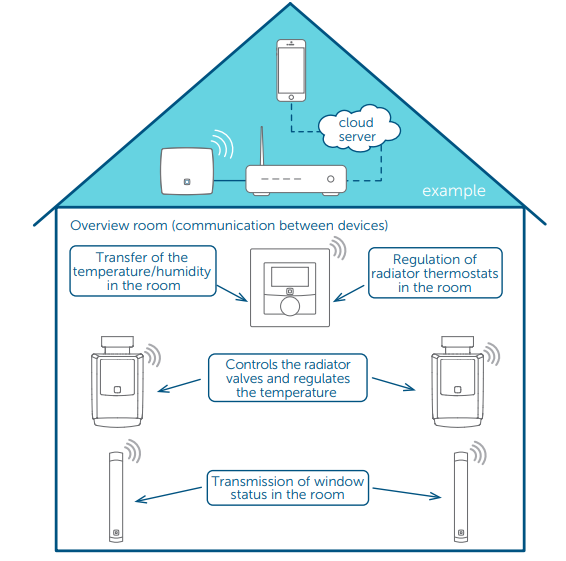

Measures the temperature and humidity and constantly transmits the data to the radiator thermostats in the room as well as to the Homematic IP app. In this way, the current temperature and humidity per room are continuously displayed in the app.
EASY TO RETROFIT
Easy installation without any wiring effort thanks to battery operation and radio communication. This allows the thermostat to be placed anywhere in the room in order to measure the room temperature at the right place.
Conventional electric radiators can also be easily retrofitted in conjunction with the wall thermostat and a switch actuator for smart and precise control.
MODULAR DESIGN FOR HIGH FLEXIBILITY
- As the design can be flexibly combined, the wall thermostat can be fixed at almost every mounting location:
- Adhesive or screw mounting in the supplied clipon frame with enclosed mounting material
- Integration into existing switches with 55 mm frames of the most common manufacturers
- Installation on a free flush-mounted box with corresponding mounting plate
- Integration into Homematic IP Desk Stand (HmIPDS55) for increased battery lifetime
- As an alternative to battery operation, the wall thermostat can also be supplied with 230 V via the Homematic IP Power Supply Unit for brand switches (HmIP-BPS)
LOGISTICAL DATA
- Product reference 143159A0
- EAN code 4047976431595
- Short description HmIP-WTH-2
- Packing unit 90
- Packing dimensions 122 x 112 x 48 mm
- Weight incl. packaging 208.5 g
PACKAGE CONTENTS
- Homematic IP Wall Thermostat with Humidity Sensor
- Clip-on frame and mounting plate
- Mounting material (screws, plugs and adhesive strips)
- 1.5 V LR03/micro/AAA batteries (2x)
- User manual
