Homematic HmIP-eTRV-B Radiator Thermostat
PACKAGE CONTENTS
- Homematic IP Radiator Thermostat – basic
- Danfoss RA adapter
- Support ring
- Mounting accessories
- 1.5 V LR6/mignon/AA batteries (2x)
- User manual
THE FIRST STEP INTO SMART HEATING
With or without control unit: The smart Homematic IP Radiator Thermostat saves up to 33 % on energy. This reduces heating costs, lowers CO2 emissions and provides comfortable temperatures.
SAVE HEATING COSTS

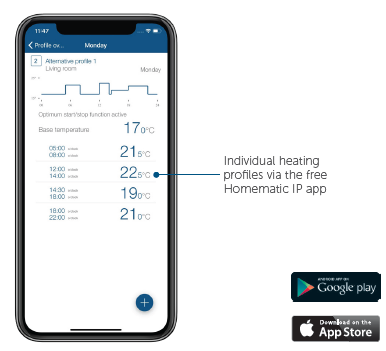

Individual temperature profiles are easily created via app – with up to 3 adjustable heating profiles and 13 changes per day. In this way, the heating is switched on only if needed. And during ventilation, the room temperature is automatically reduced thanks to the open-window function.
COMFORT TEMPERATURE AT ALL TIMES
The room temperature is controlled according to the individual needs of the user: simply via app, whether at home or on the road, directly on the device using the push-buttons or conveniently via voice control (via Amazon Alexa or Google Assistant).
OPEN-WINDOW DETECTION
The Homematic IP Window and Door Contact offers exact detection of open windows and doors. The room temperature is automatically reduced to avoid any waste of energy.
TECHNICAL SPECIFICATIONS
- Supply voltage 2x 1.5 V LR6/mignon/AA
- Current consumption 100 mA max.
- Battery life 2 years (typ.)
- Degree of protection IP20
- Ambient temperature 0 to 50 °C
- Dimensions (W x H x D) 57 x 68 x 102 mm
- Weight 185 g (including batteries)
- Radio frequency band
- 868.0-868.6 MHz
- 869.4-869.65 MHz
- Typical open area RF range 250 m
- Connection M30 x 1.5 mm
SECURE AND EASY INSTALLATION
The union nut enables secure installation to standard radiator valves with M30 thread size. Quick and easy installation without having to drain any water or intervening in the heating system.
MANY ADDITIONAL FUNCTIONS
- Boost function for quick heating of rooms
- Eco mode for energy-saving operation with reduced room temperature
- Valve protection function against calcification of the valve
- Operating lock against unauthorised operation
FLEXIBLE CONTROL OPTIONS
- Stand-alone operation (push-to-pair):
- Manual operation and configuration directly on the device, e.g. for setting the heating profile, holiday mode, temperature changes, etc.
- Direct pairing of up to eight window/door contacts (HmIP-SWDM) und one wall thermostat (HmIPWTH- B) possible
- In a smart home together with the Homematic IP Access Point:
- Configuration and control via the free
- Homematic IP smartphone app
- Can be extended to a comprehensive smart home solution at any time
To enable operation, the device has to be connected with one of the following solutions:
- Stand-alone (push-to-pair)
- Homematic IP Access Point with free
- smartphone app and free cloud servi
LOGISTICAL DATA
- Product reference 153412A0
- EAN code 4047976534128
- Short description HmIP-eTRV-B
- Packing unit 36
- Packing dimensions 122 x 140 x 97 mm
- Weight incl. packaging 340.0 g
