Hive Active Heating SLT6 Mini Thermostat User Guide

Hive Active Heating SLT6 Mini Thermostat

Here’s what you’ll need to install Hive Active Heating

• A working as central heating system
• An existing broadband connection with a spare Ethernet port
• An Android or Apple smartphone to control your heating via the app or an up-to-date web browser.

Installation order
For quick and e cient setup install Hive Active Heating in this order:

Please remember that for your own safety Hive Active Heating should always be installed by a qualified professional.

The Hive Hub
If you already have a Hive Hub just put it into pairing mode. To do this press the button at the rear of the hub for a second and release it. The middle li ht should now flash AMBER showing it is in pairing mode. Then move on to sta. If you are not installing a hub just now skip to step.’

1a – Installing your hub
To install the hub, there must be a broadband connection with a spare network port and a power socket must be nearby. Once this has been located, connect the hub as follows:

1b – Connectin! the hub
Once the AMBER  is flashing! the hub is set up and you can move on to installation! the receiver. If no is displayed immediately after the hub has been turned on, check all cables are connected and the power socket works. If the problem still persists contact Hive Technical Support.

Hub lights and what they mean

Colour	Pattern	What does this mean?	Notes
GREEN	Flashing	Installation and start-up. The hub is attempting to connect to the Hive servers and update itself.	Do not disconnect the hub. If flashing continues after 15 minutes, contact Hive Technical Support to confirm that it has connected.
AMBER	Flashing	Installation. The  hub is actively seeking to connect to the receiver and thermostat.	The hub will search for devices for 2 hours at a time. It will then pause, and show solid AMBER.
AMBER	Solid	Installation. The hub has paused its search for other devices.	To restart the search, simply turn the hub off then on. The AMBER flashing light should then return.
GREEN	Solid	Normal operation. The hub is connected.	This happens once the hub, receiver and thermostat are all installed and synchronised.
RED	Solid or Flashing	Error. The hub has failed to connect to the Hive servers.	Check that the hub is plugged in and that the broadband is working. If the problem persists, call Technical Support.

The receiver

Important information: Before you get started

• Before fitting, isolate the mains electricity supply to the central heating Confirm it is isolated and secured in the off position for the duration of the installation. Remember to always follow appropriate safe electrical isolation procedures and test to confirm that the supply is isolated before touching any electrical connections.
• This product should only be installed by an electrically skilled person competent in the installation of electrical The wiring must comply to the current edition of BS7671 (The IET Wiring Regulations), and the appropriate Building Regulations or Standards in place.
• The Hive receiver is double insulated so doesn’t need earth You’ll find a tether on the backplate to secure an earth wire if needed.
• This product is designed for fixed wiring installation only. It must be supplied via a switched fused spur with a minimum contact separation of 3mm (both live and neutral) and fitted with a 3A fuse

• The receiver

Important information: Before you get started

• Before fitting, isolate the mains electricity supply to the central heating Confirm it is isolated and secured in the off position for the duration of the installation. Remember to always follow appropriate safe electrical isolation procedures and test to confirm that the supply is isolated before touching any electrical connections.
• This product should only be installed by an electrically skilled person competent in the installation of electrical The wiring must comply to the current edition of BS7671 (The IET Wiring Regulations), and the appropriate Building Regulations or Standards in place.
• The Hive receiver is double insulated so doesn’t need earth You’ll find a tether on the backplate to secure an earth wire if needed.

Installing the correct receiver
Hive Active Heating has two types of the receiver:

Wiring labels
Use the labels provided and attach them to the wires to help you remember which one is which during! the installation.

a – Installing the receiver
You should fit the receiver in a convenient location close to the boiler or central heating system. Make sure it’s at least cm away from lar e metal objects, such as a boiler or hot water cylinder, to avoid interference with radio signals. Take care to avoid any cables and pipes that may be buried in the walls. Once you’ve found a suitable location, install the receiver as follows:

2b – Single channel receiver wiring 2b – Dual channel receiver wiring

2c – Testing the boiler

To test the receiver-to-boiler connection follow these steps:

1. Visually check the wiring to confirm that the connections have been carried out correctly, referring to the labels on the wires and any photographs taken before replacement began
2. Confirm that the receiver’s front panel is in place and that it is safe to commission the boiler
3. Check if the middle light on the Hub is flashing Amber – if it isn’t, go back to step 1
4. Restore power to the central heating system – the receiver’s status light should flash AMBER. This means it’s ready to connect to the hub and thermostat Test the receiver’s wiring to the heating system by pressing the Central heating button.
5. The GREEN light?PMSLB the  Centra heating button should come on and the boiler should fire up. Once you’ve completed these tests, leave the receiver switched on with the status light flashing – this means it’s ready to connect to the hub and thermostat. Next, install the thermostat.

Important information: Replacing existing controls

If there’s an existing single zone timer or a wireless receiver, you should replace it with the Hive receiver. Hive receivers are backplate compatible with a number of common boiler controls that may already be fitted in the home. If the existing controller doesn’t have a compatible backplate, remove it completely and wire in the Hive receiver in its place. If needed you can use a stand-off plate (SP, supplied separately) to create space to accommodate existing wiring or use a decoration plate (DP) when replacing a larger controller. If the existing controller does have a compatible backplate, simply remove the front panel of the existing controller and snap the Hive receiver front panel on in its place.

• Single channel receiver compatibility: WR1 receiver, UT2 and EMT2 timers
• Dual channel receiver compatibility: UP2 and EMP2 programmers

Important information: Replacing an existing thermostat
If you’re replacing an existing wired thermostat, you should ensure that the pre-existing wires and connections are made safe. This can be achieved by disconnecting or bridging out the wired thermostat in the wiring center or boiler. Where cables are left at the wireless thermostat position, they should be housed and terminated within an enclosure to prevent access. If you’re replacing an existing wireless thermostat, decommission it by detaching it from the wall and removing its batteries.

Important information: Gravity-fed and part-pumped systems
Gravity-fed and part-pumped systems are wired differently from standard boilers. With these, the hot water relay switches on the boiler, whilst the heating relay opens a valve, operates a pump, or both, to divert hot water to the heating. If you are installing into a gravity-fed or part-pumped system, complete the wiring and then switch the Hive receiver to ‘gravity-fed’ mode as follows: Switch off the power to the boiler and receiver Wait at least 5 seconds, then switch the boiler and receiver back on Press and hold the hot water button for at least 10 seconds The receiver status light will flash BLUE for 3 seconds when entering ‘gravity-fed’ mode. Or GREEN for ‘fully pumped’ mode. Fully pumped mode is the default for new devices.

Important information: Gravity-fed and part-pumped systems

Gravity-fed and part-pumped systems are wired differently to standard boilers. With these, the hot water relay switches on the boiler, whilst the heating relay opens a valve, operates a pump, or both, to divert hot water to the heating. If you are installing into a gravity-fed or part-pumped system, complete the wiring and then switch the Hive receiver to ‘gravity-fed’ mode as follows: Switch off the power to the boiler and receiver Wait at least 5 seconds, then switch the boiler and receiver back on Press and hold the hot water button for at least 10 seconds The receiver status light will flash BLUE for 3 seconds when entering ‘gravity-fed’ mode. Or GREEN for ‘fully pumped’ mode. Fully pumped mode is the default for new devices.

When installing a dual-channel receiver, the chosen central heating zone will need to be wired into the dual-channel receiver and this zone will control the hot water.

Hot tips: See page 13 (section 2c) on how to confirm receivers are installed and operating the heating system correctly. Label the receivers once you have installed them so that it’s clear which receiver controls which zone. See  how to set up Multizone

Important information: Stand-alone installation
For Hive Active Heating a hub, a receiver, and a thermostat are installed. When this service hasn’t been bought, the thermostat and receiver can also be installed without a hub. This is known as the ‘stand-alone’ mode. Follow the steps in the next section if the thermostat and receiver are going to be installed without a hub in ‘stand-alone’ mode (where Hive Active Heating hasn’t been purchased). In ‘stand-alone’ mode the thermostat acts as a standard wireless programmable thermostat without the remote heating control features and functionality of Hive Active Heating

Activation stand-alone mode

1. Remove the batteries from the thermostat
2. Switch o! the boiler and receiver
3. Wait at least 5 seconds, then turn the boiler and receiver back on. The receiver’s status li ht will be in to flash AMBER
4. Press and hold the heating button for at least 10 seconds – until the status light begins to flash WHITE. The receiver is now in ‘stand-alone’ mode and is searching for a thermostat
5. Insert the batteries into the thermostat, press and hold down the MenuConfirm and Down arrow and follow the factory reset instructions on the screen. After about 10 seconds, ‘Welcome to Hive Active Heating’ and ‘Searching…’ will be displayed on the screen. If the thermostat shows ‘Reconnecting’ then try steps 1 and 5 again.

To switch back to ‘remote heating!’ mode

• Switch the hub off and then on If it begins to flash AMBER continue on to step b. If all the lights go out and the hub does not flash AMBER
• Now follow steps 1-5 on page 19, but note that the lights will be different. In step 3 the receiver’s status light will initially flash WHITE/PINK and in step 4 it will change to AMBER (for ‘remote heating’) once you have held the Central heating button

At any time you can check what mode the receiver is set to by switching it off and then on. When power is restored the status light will flash for 5 seconds – AMBER for Hive Active Heating, WHITE for ‘stand-alone’ mode

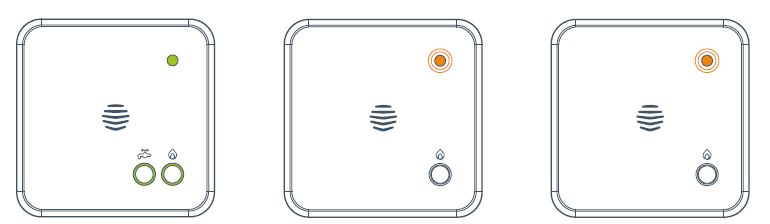

Receiver lights and what they mean
The receiver has lights on its front panel to show what it’s doing. A single-channel receiver has two lights – Status and  Central heating. A dual-channel receiver has an additional light for Hot water. This is what the lights mean:

Light	Colour	Pattern	Meaning	Notes
Central heating	GREEN	Solid	Heating is on.
Central heating	GREEN	Flashing	Commands queued. The receiver has received 2 or more commands to switch the boiler on or off within 1 minute. Or, Heating Boost mode with target temperature lower than room temperature.	The Hive receiver protects the boiler from damage that may occur if it’s switched on and off very quickly. Once the boiler has been switched on (or off), it will not change state again for 1 minute as a protective measure.
Hot water	GREEN	Solid	Hot water is on.	This light is only present on dual channel receivers.
Hot water	GREEN	Flashing	Commands queued. The receiver has received 2 or more commands to switch the boiler on or off within 1 minute.	See ‘Central heating’.

Light	Colour	Pattern	Meaning	Notes
Status	GREEN	Solid	Normal operation. The receiver is connected to the rest of the Hive system and operating normally.
Status	BLUE	Solid	The system is in gravity-fed mode and is connected to the rest of the Hive system.	See gravity-fed mode section of this manual on page 15.
Status	AMBER	Flashing	Installation. The receiver is trying to connect to other Hive devices.	The receiver will search for devices for 40 minutes at a time.
Status	WHITE	Flashing	The receiver is in stand-alone   mode and is actively seeking to connect to a Hive thermostat.	The receiver will search for a thermostat for 40 minutes. If no thermostat is found within this time it will stop searching and the status light will turn solid WHITE.
Status	AMBER or WHITE	Solid	Installation. The receiver has paused its search for other devices.	To restart the search, simply turn the receiver off and then on. This will return it to the AMBER or WHITE flashing state.
Status	RED	Solid	Error. The receiver has lost its wireless connection to the thermostat.	Whilst in this state heating and hot water will default to off. They can be switched on manually by pressing the ‘heating’ and ‘hot water’ buttons on the receiver (hot water only available on dual channel receivers). For help call Hive Technical Support.

The thermostat

For the thermostat to work accurately, it’s important that you install it in the ri ht location.

3a – Selectin a location for the thermostat
The thermostat should be fixed to an internal wall, 1.5m from the floor and away from heat sources that could a ect its operation, such as radiators and areas in direct sunli ht. To make accurate temperature readin s, the thermostat needs a free flow of air, so make sure it’s installed in an area not covered by curtains or similar objects. The thermostat should not be installed in the same room as a radiator that’s controlled by a thermostatic radiator valve (TRV). Installin the two in the same room may result in the central heatin bein permanently on.

3b – Wall mountin the thermostat

Remove the backplate of the thermostat by pressin the lever at the bottomand pullin away from the front of the device. Once you’ve found a suitable location, fix the backplate to the wall usin the appropriate fixin s. The backplate is desi ned for 3.5mm/size 6 or size 8 screws. Be careful to avoid any cables and pipes that may be buried in the wall.
Note: The backplate is desi ned to mount directly onto a sin le an back box, if available.

3c – Confirmin the hub is ready to connect
Before insertin the batteries into the thermostat, check the hub is flashin AMBER – this means it’s ready to connect. If it is showin a solid AMBER li ht, turn it o! then on, and then switch the receiver and boiler o! and then on a ain too. The hub should then be in to flash AMBER and be ready to connect.

3d – Insertin the batteries and connectin to the hub and receiver
The battery compartment is located at the back of the thermostat and is only accessible when the front of the thermostat is removed from the backplate.

Insert the 4x AAA batteries provided.
If you are installin Hive Multizone only insert batteries into one thermostat at a time.

The thermostat display will show
‘Search’ – meanin it’s searchin for the hub and receiver. A timer will show how lon the thermostat has been searchin . If this lasts for lon er than five minutes contact Hive Technical Support and they will dia nose any problems.

The receiver will display a solid GREEN status li ht or a BLUE li ht if it’s in ravity-fed mode.If installin Hive Multizone the status li ht will o GREEN on one receiver only. This is correct as the batteries should only be inserted into one thermostat at a time.

The thermostat will then go onto
‘Pairing successful!’ screen and then display the current inside temperature, and a solid GREEN light will appear on the hub.

3e – Final steps
Installation is almost complete. All that’s left to do is:

1. 1 Hook the thermostat onto the backplate and click it in place
2. Remove the screen protector from the front of the thermostat
3. confirm the system is properly confiured by checkin:If the system is not properly confiured it will not be possible to control your thermostat remotely.

Controlling your thermostat remotely
Hive Active Heatin is now installed, there is one final step to link your thermostat to your Hive account.

1. Download the Hive app
2. Loging usin the email address and password you reistered with OR If you haven’t already ot a Hive account, tap ‘Create Account’ on the app Loin screen or create one at hivehome.com/reister. Once you’ve created your account then you’ll need to lo in.
3. Select ‘Hub’ then enter the hub ID when prompted. This is the ABC-123 formatted number on the underside of the hub
4. Once the hub ID has been entered, setup is complete and you’ll land on your Hive dashboard
5. Tap on your thermostat to control it remotely.

Hot tip: You can also control your thermostat and other Hive devices through our website, just to to hivehome.com

Multizone

Important note:

Addin additional heatin zones
If you’ve not done so already, install all additional receivers and power them up. For new receivers, their status li hts should be double flashin AMBER. Please see pa e 16 for more information on receiver installation.

To complete installation of the remainin! heatin! zone(s) use either the hub or the Hive app or online dashboard:

5a – Usin! the hub

1. Press the button at the rear of the hub for 1 second and release it. The middle LED should start to flash AMBER
2. Now add the batteries to one new thermostat
3. Wait until the thermostat display stops showin! ‘Search’. Now check that the status li!ht on one of the receivers that was previously flashin! AMBER has turned solid GREEN
4. If there are still more zones to install, repeat steps 2-3
5. When all zones have been added, press the button on the rear of the hub to exit from pairin! mode. The middle LED will stop flashin!.

5b – Usin! the Hive app or online dashboard:
Please note, if installin! Hive Active Heatin! to a hub that is already connected
to other Hive products, you must use the button on the back of the hub to
install the first zone. Any additional zones can be added throu!h the Hive app
or online dashboard usin! the steps below.

1.  Download the Hive app or !o to hivehome.com
2. Login usin! the email address and password you re!istered with OR If you haven’t already !ot a Hive account, tap ‘Create Account’ on the app Lo!in screen or create one at hivehome.com/re!ister. Once you’ve created your account then you’ll need to lo! in.
3. If prompted to do so, enter the hub ID – this is found on the underside of the hub, for example ABC-123
4. Select menu in the smartphone app or settin!s on the website
5.  Select Install Devices, then select Add Heatin! Zone and follow the on-screen instructions.

Hot tips: Once installed, the default zone name can be chan!ed by selectin! ‘Mana!e Devices’ in the Hive app or online dashboard. Once all the thermostats and receivers are paired, fit the correct thermostat on the wall in each zone. Check all thermostats remain in ran!e once mounted in their final locations, addin! a si!nal booster if required

Can we help?
You can view our handy how-to-use videos alon! with hints and tips at hivehome.com/support If for any reason you need to return your Hive Active Heatin!, simply return your box and its contents to the retailer. Any return is subject to the retailer’s refund policy so please don’t for!et to check the retailer’s refund policy too.

Need help?
If you’re a qualified professional installing Hive Active Heating and need any help during the installation process, just visit our technical support page at hivehome.com/installation
If you need further help, you can get contact our support team at hivehome.com/contact-us  2021 Centrica Connected Home Limited. Registered in England (No.5782908) SL4 5GD, UK.
