Hexa CONTROL RT226-Y FAN COIL Room Thermostat Product Data Sheet

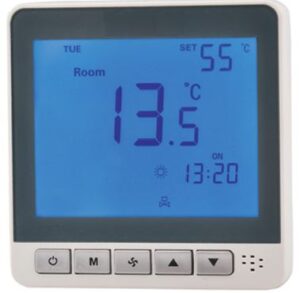

Hexa CONTROL RT226-Y FAN COIL Room Thermostat

FEATURES

The “RT226-Y and RT226-K” series thermostats are stand-alone microprocessor-based thermostats with LCD displays. The thermostats are designed to modulate control of the fans, valves, dampers or in fan coil units, air-conditioners, and heating applications. Models are available for heating/cooling / ventilating control of 2-pipe or 4-pipe fan coil units. Fan speed can be manually controlled by the fan speed control push button. It is wired to run high/medium/low speed continuously or to automatically change the fan speed, while with other models there is a choice of running the fan continuously or cycling it with the thermostat.

SPECIFICATION

• Part Number: RT226-Y9
• Power Source:230V AC, 50/60Hz
• Setting Range:5 ~ 60°C (heat / cool mode)
• Accuracy:±0.1°C
• Load Current: 2A (fan output), 0.5A (valve output)
• Valve Control: Proportional control (0~10V DC / 4-20mA)
• Fan Control:3 speed (H/M/L) thermostatic fan control
• Color: Gray
• Installation: Flush mounting
• Dimensions:86X86X15mm
• Warranty:2 years
• Certificates: CE and ISO9001
• Country of Origin: People’s Republic of China (PRC)

RT226-K9

• Part Number: RT226-K9
• Power Source:18 ~ 30VAC, 50/60 Hz
• Setting Range:5 ~ 35°C (Min. / Max. set point limiting)
• Accuracy: White
• Load Current:±0.1°C
• Valve Control: Proportional control (0~10V DC / 4-20mA)
• Fan Control:3 speed thermostatic fan control (3A)
• Color: White
• Installation: Surface mounting
• Dimensions:115X90X15mm
• Warranty:2 years
• Certificates: CE and ISO9001
• Country of Origin: People’s Republic of China (PRC)
