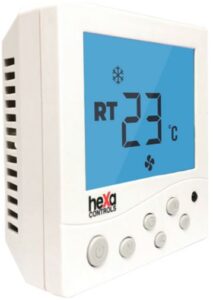

Hexa CONTROL RT226-W FAN COIL Wireless Thermostat
Features
The “RT226-W” model is a new design wireless thermostat to control a 2-pipe or 4-pipe fan coil unit and controller that can be placed anywhere at offices, hotels, hospitals, residential places, and houses.
The RT226-W” thermostat pack consists of a duct module room thermostat, receiver and a relay box. No wiring to the room unit is required. The installer only needs to wire the receiver to the controlled device (e.g. fan coil unit) and mount the room unit in a suitable location where RF communication is reliable. The “RT226-W” thermostat uses reliable RF communication technology in the 433MHz band. The “RT226-W” large LCD display, symbol display. The unit is ideal for consumers who want reliable and precise temperature control from a modern-looking, simple-to-program, and easy-to-use product.
- LCD display with backlight.
- Cool, heating, auto three mode optional.
- Auto fan with adjustable 3-fan speed.
- Thermostatic fan control enables/disables the option.
- Maintains the temperature to within a 0.5-degree set point.
- Select min. and max. setting the temperature for cooling and heating.
- Temperature adjustments are simple with the large up-down arrows.
- The display shows both set points and room temperature simultaneously.
- 2XAA Alkaline batteries are required for the duct module thermostat.
SPECIFICATION
- Part Number: RT226-W24
- Power Source230V AC, 50/60Hz and 2XAA batteries
- Setting Range:5 ~ 35°C (heat / cool mode)
- Accuracy:±1°C
- Load Current:2A (fan output), 0.1A (valve output)
- Valve Control:2 or 3-point actuator On/Off control
- Fan Control:3 speed (H/M/L) thermostatic fan control
- Color: White
- Installation: Duct module
- Dimensions:120×82×28mm (thermostat)
110X80X30mm (receiver) - Warranty:2 years
- Certificates: CE and ISO9001
- Country of Origin: People’s Republic of China (PRC)
| Part Number | System | Comunication Function | Fan Output Signal | Actuator Output Signal | External Sensor | Room Card |
| RT226-W24 | 2 or 4 pipe | Wireless(100m) | 3 Speed (H/M/L) On/Off Thermostatic Control |
2 or 3 points On/Off 230V AC | Not Available | ✓ |
