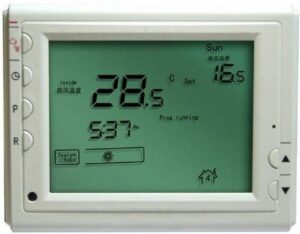

Hexa CONTROL RT226-U1 Weekly-Programmable Thermostats Product Data Sheet

Hexa CONTROL RT226-U1 Weekly-Programmable Thermostats

Features

The “RT226-U” series are weekly-programmable thermostats designed to control either heat only or cool only, boilers, wall hanging stoves, fan coil, electrically operated valve, power-driven air valve, 2 point spring return or 3 point On/Off control damper actuators and power-driven air inlet of the central air condition with beautiful appearance, comfortable hand feel and stable performance.
This model has been designed to be especially user friendly and features a simple and precise round that’s been celebrated for its ease of use and precision. Featuring a decorative covering ring to cover surrounding wall marks, the Round Heat/Cool Only Manual Thermostat is a modern classic that has earned its distinction as a top end thermostat.

SPECIFICATION

• Part Number:RT226-U1
• Power Source:2XAA Alkaline Batteries
• Setting Range:5 ~ 35°C (Min. / Max. set point limiting)
• Accuracy:±1 °C
• Load Current:6A
• Output Signal:2 or 3 point On/Off control
• Color:White
• Installation:Surface mounting
• Dimensions:115X90X15mm
• Warranty:2 years
• Certificates:CE and ISO9001
• Country of Origin:People Republic of China (PRC)

RT226-U2

• Part Number:RT226-U2
• Power Source:2XAA Alkaline Batteries (thermostat)
• 230V AC, 50/60Hz (receiver)
• Setting Range:5 ~ 35°C (Min. / Max. set point limiting)
• Accuracy:±1 °C
• Load Current:2A
• Output Signal:2 or 3 point On/Off control
• Color:White
• Installation:Surface mounting
• Dimensions:115X90X15mm
• Warranty:2 years
• Certificates:CE and ISO9001
• Country of Origin:People Republic of China (PRC)
